S&P CWD Direct Drive Wall Exhausters
Soler & Palau

S&P CWD Direct Drive Wall Exhausters

Soler & Palau Commercial - Series CWD Direct drive centrifugal wall exhausters. Models CWD are used to exhaust relatively clean air from a variety of industrial, commercial and institutional buildings such as machinery and equipment rooms, storage areas, office buildings, restaurants, retail stores, schools and similar buildings.

The non-overloading centrifugal wheel with its high static pressure capability, makes it suitable for either ducted or non-ducted applications. The spun aluminum exterior provides a pleasing appearance, weather proof construction and resistance to corrosion.

*** $1 SHIPPING ON ALL S&P COMMERCIAL ORDERS!  Not valid for Canada, HI & AK.  ***

Model
Motor: 1/25 Hp 115/1/60 | Motor RPM: 1550

Damper
No backdraft damper
Gravity Backdraft Damper - 411008


Speed control
No speed controller
5 Amp Speed Controller - Up To 1/3 HP (110/1 motors) - 2727.1

Be sure to update the price if you change options. Press "price it" below.


Model
(including options)

 CWD07HH1AS

Unit price

$336.00
For quantity pricing, please contact us at 877-711-4822.

Ships

2-3 Days



Quantity:

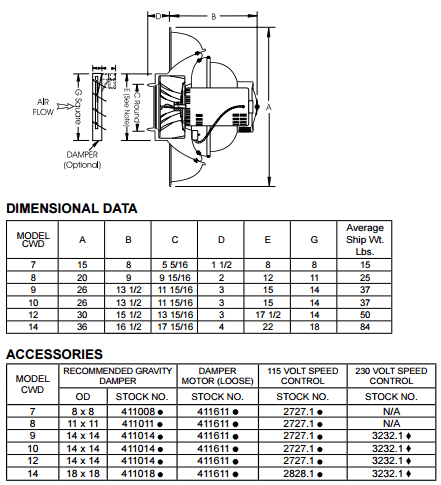

DIMENSIONAL DATA
MODEL CWD A B C D E G Average Ship Wt. Lbs.
7 15 8 5 5/16 1 1/2 8 8 15
8 20 9 9 15/16 2 12 11 25
9 26 13 1/2 11 15/16 3 15 14 37
10 26 13 1/2 11 15/16 3 15 14 37
12 30 15 1/2 13 15/16 3 17 1/2 14 50
14 36 16 1/2 1715/16 4 22 18 84


Catalog File Download (PDF file)

CONSTRUCTION

Housing

  • Spun aluminum dome for weather protection and attractive appearance.
  • Ventilated motor compartment with motor out of air stream for long troublefree service.
  • Dome easily removes for access to motor compartment.
  • Weather-tight construction with aluminum birdscreen.
  • Round duct connection provided at wheel inlet.

Centrifugal Wheel

  • Non overloading backward inclined for safe operation in ducted systems.
  • Statically and dynamically balanced for smooth, quiet operation.

Motors

  • Speed controllable motors available on most models.
  • Single speed open drip-proof are standard.
  • Plug disconnect switch standard with single speed drip-proof motors.

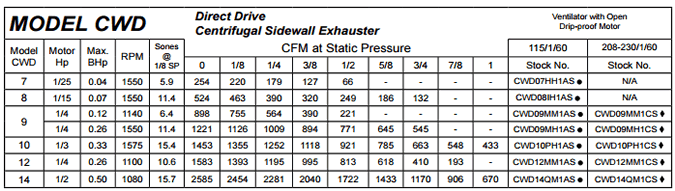

MODEL CWD Direct Drive Centrifugal Sidewall Exhauster Ventilator with Open Drip-proof Motor
Model CWD Motor Hp Max. BHp RPM Sones @ 1/8 SP CFM at Static Pressure 115/1/60* 208-230/1/60
0 1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 Stock No. Stock No.
7 1/25 0.04 1550 5.9 254 220 179 127 66 - - - - CWD07HH1AS N/A
8 1/15 0.07 1550 11.4 524 463 390 320 249 186 132 - - CWD08IH1AS N/A
9 1/4 0.12 1140 6.4 898 755 564 390 221 - - - - CWD09MM1AS CWD09MM1CS
1/4 0.26 1550 11.4 1221 1126 1009 894 771 645 545 - - CWD09MH1AS CWD09MH1CS
10 1/3 0.33 1575 15.4 1453 1355 1252 1118 921 785 663 548 433 CWD10PH1AS CWD10PH1CS
12 1/4 0.26 1100 10.6 1583 1393 1195 995 813 618 410 193 - CWD12MM1AS CWD12MM1CS
14 1/2 0.50 1080 15.7 2585 2454 2281 2040 1722 1433 1170 906 670 CWD14QM1AS CWD14QM1CS
