SMI Ventilation Victorian Series Wall Mount Grilles

Well made from high strength polymer resin (plastic) that is easy to clean, doesn’t rust, dent or scratch like metal grilles. Paintable finish.  WALL MOUNT configuration.

  • Esthetically pleasing VICTORIAN design
  • High strength white polymer finish
  • Paintable to match your decor
  • Easy to clean
  • Will not rust, dent or scratch (plastic)
  • Comes with pre-drilled holes and painted screws
model description usually ships 1-3 units 4+ units QTY

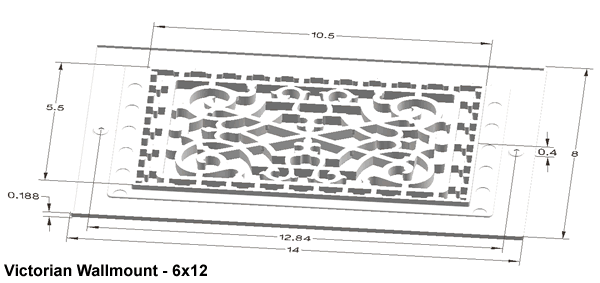

VWM612 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 6X12 inch list size (8x14 overall). 1 Day. In-stock $27.99 $25.99

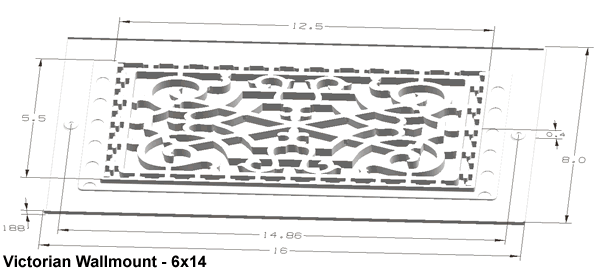

VWM614 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 6X14 inch list size (8x16 overall). 2-3 Days $28.99 $26.99

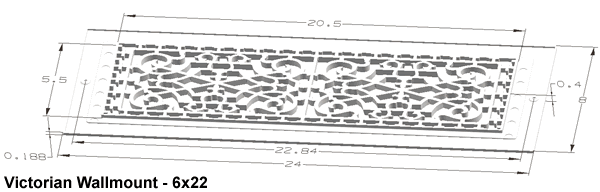

VWM622 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 6X22 inch list size (8x24 overall). 1 Day. In-stock $32.99 $30.99

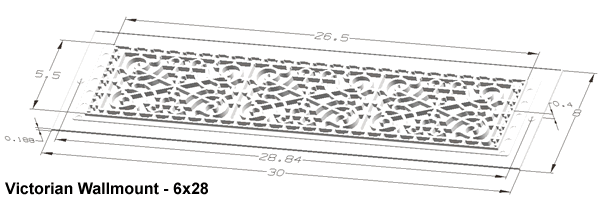

VWM628 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 6X28 inch list size (8x30 overall). 1 Day. In-stock $35.99 $33.99

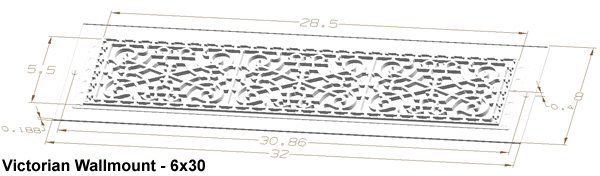

VWM630 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 6X30 inch list size (8x32 overall). 1 Day. In-stock $38.99 $36.99

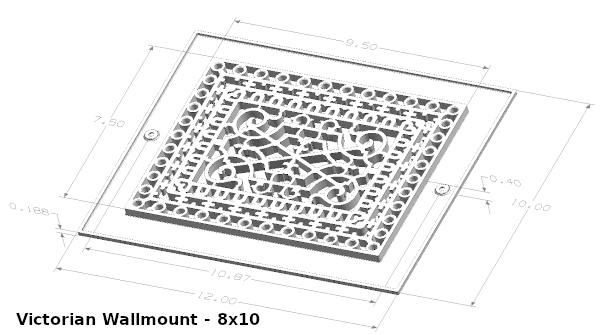

VWM810 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 8X10 inch list size (10x12 overall). 1 Day. In-stock $29.99 $27.99

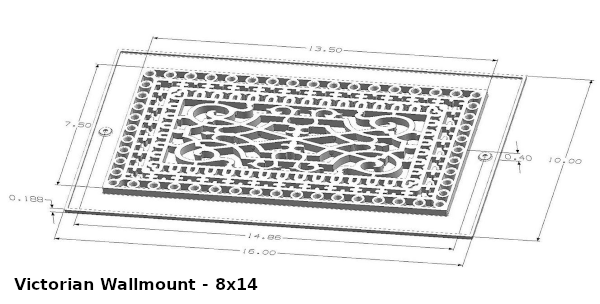

VWM814 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 8X14 inch list size (10x16 overall). 1 Day. In-stock $44.99 $42.99
VWM830 SMI Vents Victorian decorative wall mount grille. White paintable polymer resin. Screws included. 8X30 inch list size (10x32 overall). 1 Day. In-stock $45.99 $43.99
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



smi ventilation victorian  6x12 grille

smi ventilation victorian  6x14 grille

smi ventilation victorian  6x22 grille

smi ventilation victorian  6x28 grille

smi ventilation victorian  6x30 grille

smi ventilation victorian  8x10 grille

smi ventilation victorian  8x14 grille



smi ventilation victorian grille



smi victorian grille smi victorian wall mount grille smi victorian wall grille

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Do you have 14 x 25 sizes?
A:   This manufacturer only has the sizes listed. Sorry.

       Asked on 2022-10-20 by Allie
#2 Q:   What percentage of the grille is free area for air to pass through?
A:   53 to 56% depending on the size. More info here: https://smivents.com/products/victorian-6x10-base-board-grille/

       Asked on 2020-10-05 by David
#3 Q:   I have an 8x10 duct opening Would like white And Victorian for Victorian home Will they have a flow piece or is it always open
A:   There is no damper on these. They are always open/flowing.

       Asked on 2020-07-19 by Amy
#4 Q:   The opening in the wall is 14 length and 8 high. Will the VWM814 grille work for me ?
A:   Yes. The VWM814 is meant for an 8x14 inch opening. The overall size of the grille will be 10x16 inch.

       Asked on 2020-05-16 by Margie
#5 Q:   Can these grills be used as heat pump & air conditioner supply air grills?
A:   Sure, just keep in mind that these do not have a damper for flow adjustment.

       Asked on 2017-03-01 by Geoff
#6 Q:   The opening in my wall is 8x14. Will this fit properly?
A:   No. Presumably you are looking at the VWM612 which is only 8x14 overall (with flanges). With your 8x14 opening, there is no flange left to overlap the drywall.

       Asked on 2016-04-12 by Joon
#7 Q:   Does it have to be painted or can it stay like it is?
A:   It does not have to be painted.

       Asked on 2015-11-08 by A
#8 Q:   Are these available in larger sizes?
A:   No. Only the listed sizes are currently available.

       Asked on 2015-03-28 by mary
