Canarm Leader Fan AX Series Exhaust Fan

Canarm Leader Fan AX Series Exhaust Fan

Sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications. Suitable for general ventilation of factories, garages, warehouses, and other commercial and industrial buildings.

Heavy duty aluminum housing with built in shutters. Aluminum shutters automatically open when fan starts, close when fan stops. Heavy duty OSHA motor mount/guard is standard. Motors are totally enclosed, continuous run, fan duty with built-in automatic overload protection. 115 Volt or 115/230 volt is standard, but other voltages in single or three phases are available.

model description usually ships price QTY
AX12-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 12 inch, 1650 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $378.90
AX12-1VHE Canarm AX Series Direct Drive Exhaust Fans With Shutters. 12 inch, 1350 nominal CFM, Variable Speed, HE motor, 115VAC, 1 phase 1-2 Weeks $350.50
AX12-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 12 inch, 1100 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $352.30
AX12-3 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 12 inch, 1670/1100 nominal CFM, Two Speed, 115V, 1 phase 1-2 Weeks $433.40
AX12-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 12 inch, 1650 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $378.90
AX14-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 14 inch, 2170 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $399.10
AX14-1VHE Canarm AX Series Direct Drive Exhaust Fans With Shutters. 14 inch, 1600 nominal CFM, Variable Speed, HE motor, 115VAC, 1 phase 1-2 Weeks $370.70
AX14-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 14 inch, 1750 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $376.00
AX14-3 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 14 inch, 2190/1440 nominal CFM, Two Speed, 115V, 1 phase 1-2 Weeks $450.60
AX14-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 14 inch, 2170 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $399.10
AX16-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 16 inch, 2570 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $422.80
AX16-1VHE Canarm AX Series Direct Drive Exhaust Fans With Shutters. 16 inch, 1850 nominal CFM, Variable Speed, HE motor, 115VAC, 1 phase 1-2 Weeks $378.90
AX16-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 16 inch, 2150 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $394.90
AX16-3 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 16 inch, 2580/1770 nominal CFM, Two Speed, 115V, 1 phase 1-2 Weeks $471.30
AX16-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 16 inch, 2570 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $422.80
AX18-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 18 inch, 3150 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $460.70
AX18-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 18 inch, 3200 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $413.30
AX18-3 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 18 inch, 3200/2130 nominal CFM, Two Speed, 115V, 1 phase 1-2 Weeks $531.10
AX18-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 18 inch, 3150 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $460.70
AX20-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 20 inch, 3620 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $484.90
AX20-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 20 inch, 4400 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $460.70
AX20-3 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 20 inch, 3640/2420 nominal CFM, Two Speed, 115V, 1 phase 1-2 Weeks $551.80
AX20-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 20 inch, 3620 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $484.90
AX24-1V Canarm AX Series Direct Drive Exhaust Fans With Shutters. 24 inch, 5500 nominal CFM, Single/Variable Speed,115/230V, 1 phase 1-2 Weeks $561.90
AX24-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 24 inch, 5300 nominal CFM, Low Noise, Single Speed, 115V, 1 phase 1-2 Weeks $550.10
AX24-1M Canarm AX Series Direct Drive Exhaust Fans With Shutters. 24 inch, 5500 nominal CFM, Single Speed, 208-230/460V, 3 phase 1-2 Weeks $561.90
AX30-2 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 30 inch, 8000 nominal CFM, Single Speed, 115V, 1 phase 1-2 Weeks $768.00
AX36-7 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 36 inch, 12000 nominal CFM, Single Speed, 115V, 1 phase 1-2 Weeks $870.40
AX42-7 Canarm AX Series Direct Drive Exhaust Fans With Shutters. 42 inch, 14900 nominal CFM, 1 Speed, 230V, 1 phase 1-2 Weeks $1229.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader ax fans

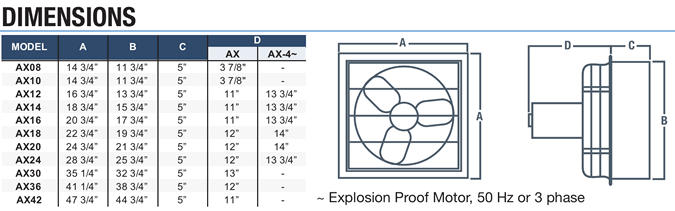

canarm leader ax fan dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can this mount to the ceiling? will the shutters open and close
A:   Not advised. The airflow should be horizontal for the shutters to open/close properly.

       Asked on 2023-11-28 by PJ
#2 Q:   Can I safely use the AX14-1V as an exhaust fan in a room spraying nitrocellulose lacquer and vinyl sealer?
A:   No. You need an explosion proof fan such as the AX12-4 for spraying applications: https://www.hvacquick.com/products/commercial/Commercial-Fans/Propeller-Fans-Direct-Drive/Canarm-Leader-Fan-Series-AX-EXPLOSION-PROOF-Fans

       Asked on 2023-01-03 by Derek
#3 Q:   How thick is the area from the flange shown on the backside to the front of the louver frame?
A:   We added the dimensions to the Specs tab, which are model dependent. Let us know if you have more questions!

       Asked on 2018-08-14 by Dick
#4 Q:   Does this come with a control switch? How loud is it when operating?
A:   It does not, model it is will dictate the switch required. As to sound, that will depend on the size...the smaller the quieter, though they do offer a lo noise version that is rather quiet, but does sacrifice a few CFM.

       Asked on 2013-05-29 by Nicole
