Imperial C2000 Baffle Series Stainless Powered Liners 22-1/8 Inch Deep

Imperial C2000 Baffle Series inserts include options with either one or two motors ranging from 635-1290 CFM.  All models feature variable control motors and dimmable halogen lighting. Inserts are easy to install with all inclusive liners and blowers. Safety heat sensors on all blower models.

  • 22-1/8" depth, 10" height
  • 30, 36, 42, 48 nominal widths
  • 1.5 to 4.6 sones (on high)
  • Variable switches for control of fan and lights
  • Two 38 watt halogen bulbs
  • Stainless steel constuction and baffle filters (included)
  • Fire safety thermostat activates at 130 degrees
  • 7", 8" or 10" round duct opening (depends on model)
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030PSB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 30" wide. 635 nominal CFM, 7" Duct 1-2 Weeks $1349.30
C2036PSB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 36" wide. 635 nominal CFM, 7" Duct 1-2 Weeks $1383.60
C2042PSB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 42" wide. 635 nominal CFM, 7" Duct 1-2 Weeks $1411.00
C2048PSB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 48" wide. 635 nominal CFM, 7" Duct 1-2 Weeks $1486.30
C2030PSB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 30" wide. 765 nominal CFM, 8" Transition 1-2 Weeks $1417.80
C2036PSB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 36" wide. 765 nominal CFM, 8" Transition 1-2 Weeks $1452.10
C2042PSB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 42" wide. 765 nominal CFM, 8" Transition 1-2 Weeks $1479.50
C2048PSB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 48" wide. 765 nominal CFM, 8" Transition 1-2 Weeks $1554.80
C2030PSB-K-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 30" wide. 850 nominal CFM, 10" Transition 1-2 Weeks $1445.20
C2036PSB-K-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 36" wide. 850 nominal CFM, 10" Transition 1-2 Weeks $1479.50
C2042PSB-K-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 42" wide. 850 nominal CFM, 10" Transition 1-2 Weeks $1506.80
C2048PSB-K-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 48" wide. 850 nominal CFM, 10" Transition 1-2 Weeks $1582.20
C2036PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 36" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $1637.00
C2042PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 42" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $1678.10
C2048PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 48" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $1746.60
C2054PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 54" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $1876.70
C2060PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 60" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $2174.00
C2036PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 36" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $1739.70
C2042PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 42" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $1780.80
C2048PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 48" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $1849.30
C2054PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 54" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $1979.50
C2060PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 60" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $2276.70
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

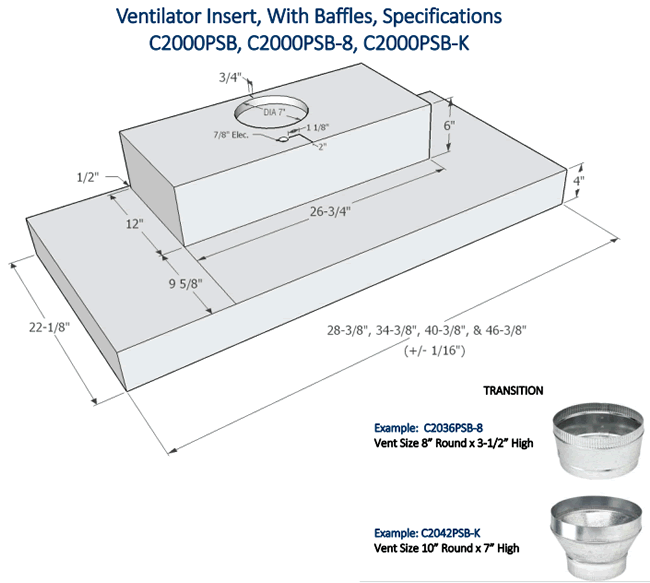

Imperial PSB liner specs

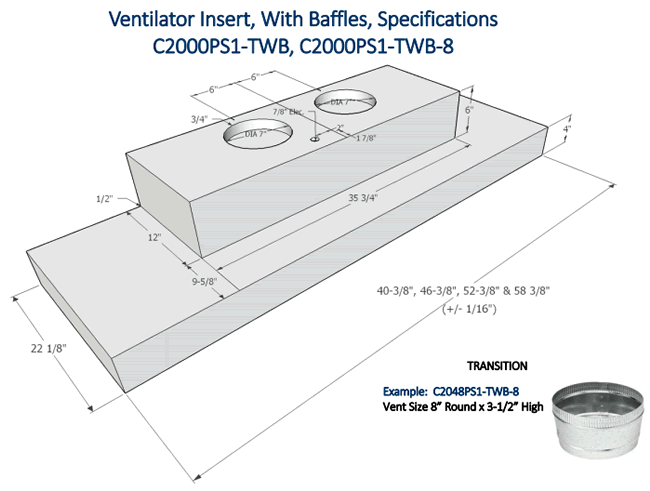

Imperial PS1-TWB liner specs

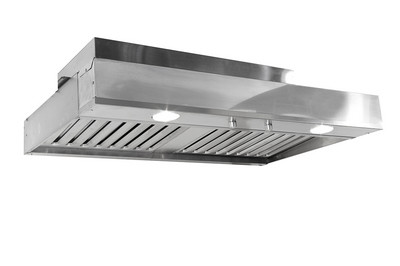

Imperial PSB liner

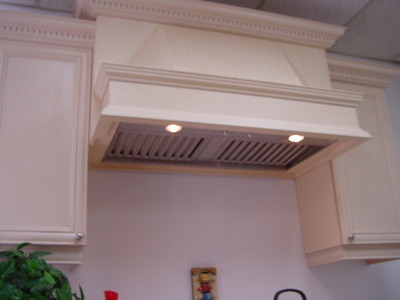

Imperial PSB liner installed
