SkyBlade Mini Prop HVLS Ceiling Destratification Fans

SkyBlade Mini Prop HVLS Ceiling Destratification Fans

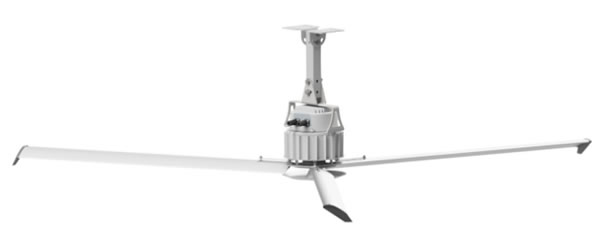

SkyBlade Mini Prop Series HVLS destratification fans are equipped with three extruded anodized, high performance aluminum blades. Contoured for maximum air movement, so environments become cooler faster. The direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor with an onboard VFD is factory assembled and programmed for minimum start/stop torque loads.

Each fan includes the DP-779 yoke control with a Fwd/Rev switch, 0-10 speed pot to control fan speed and a 100 ft. shielded connection cable.

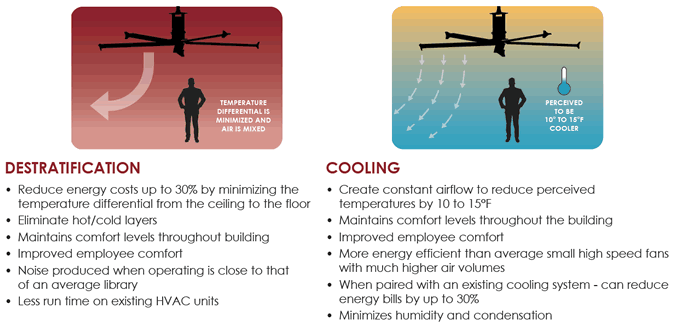

• Eliminate hot/cold layers
• Reduce energy costs up to 30% by minimizing the temperature differential from the ceiling to the floor
• Maintains comfort levels throughout building
• Improved employee comfort
• Noise produced when operating is close to that of an average library
• Standard 6.5 inch extension bar. Longer bars available
• Made in the USA

model description usually ships 1-2 units 3+ units QTY
MP-0618-312-1 SkyBlade Mini Prop Series direct drive HVLS fan. 6 ft diameter. 110 VAC (108-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3150.00 $3100.00
MP-0721-312-1 SkyBlade Mini Prop Series direct drive HVLS fan. 7 ft diameter. 110 VAC (108-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3150.00 $3100.00
MP-0824-312-1 SkyBlade Mini Prop Series direct drive HVLS fan. 8 ft diameter. 110 VAC (108-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3175.00 $3125.00
MP-0618-323-1 SkyBlade Mini Prop Series direct drive HVLS fan. 6 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3150.00 $3100.00
MP-0721-323-1 SkyBlade Mini Prop Series direct drive HVLS fan. 7 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3150.00 $3100.00
MP-0824-323-1 SkyBlade Mini Prop Series direct drive HVLS fan. 8 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3175.00 $3125.00
1002-2 SkyBlade 2 foot extension bar. 5-7 Days $69.00 $69.00
1002-3 SkyBlade 3 foot extension bar. 5-7 Days $89.00 $89.00
1002-4 SkyBlade 4 foot extension bar. 5-7 Days $109.00 $109.00
1002-5 SkyBlade 5 foot extension bar. 5-7 Days $139.00 $139.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


skyblade mini prop specifications



skyblade mini prop fan

skyblade mini prop hvls fan

skyblade

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
