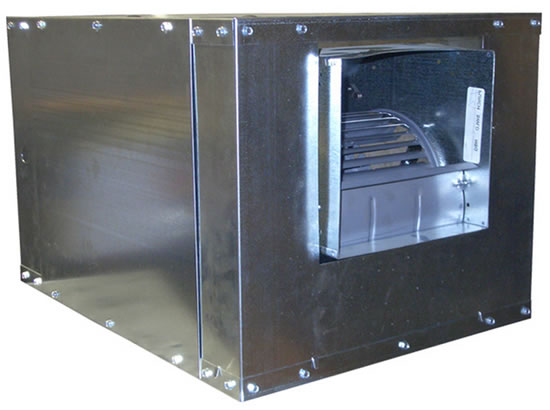

Canarm Leader IDB Series Forward Curved Inline Duct Blowers

IDB & IDB-X SERIES INLINE DUCT BLOWERS:  Ideal solution when the application requires an air mover in a duct system located in a ceiling space or as an Inline make-up air solution for cases where a rooftop curb mounted solution is not available.
  • Wheel Diameters: 7" through 15"
  • CFM: Approximately 500 to 5700 CFM in a single blower.
  • Constructed from galvanized steel for durability.
  • Forward Curved blowers operate at low RPM for low noise levels.
  • Saddle type motor mounting platform provides extended belt tension adjustment range on all models.
  • The variable pitch motor pulley permits field adjustment (typically + or - 15%) to match air delivery needs.
  • Quiet forward curved blowers operate at ½ the rpm of other inline solutions.
  • Note: For insulated or heavy duty applications, please reference the 200 and 9200 series.

CALL US AT 877-711-4822 FOR ADDITIONAL ACCESSORY PRICING

model description usually ships price QTY
IDB07T10050 Canarm IDB07 non-insulated FC inline duct blower. 1 Phase 0.5 HP, 115-208/230V motor. 1 Week $511.60
IDBX07T10050 Canarm IDB-X07 inline cabinet fan. 1 Phase 0.5 HP, 115-208/230V motor. 1 Week $594.50
IDBINS07T10050 Canarm IDB07 insulated FC inline duct blower. 1 Phase 0.5 HP, 115-208/230V motor. 1 Week $594.50
IDB07T10075 Canarm IDB07 non-insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $476.10
IDBX07T10075 Canarm IDB-X07 inline cabinet fan. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $576.70
IDBINS07T10075 Canarm IDB07 insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $576.70
IDB07T30050 Canarm IDB07 non-insulated FC inline duct blower. 3 Phase 0.5 HP, 208-230/460V motor. 1 Week $553.00
IDBX07T30050 Canarm IDB-X07 inline cabinet fan. 3 Phase, 0.5 HP, 208-230/460V motor. 1 Week $654.30
IDBINS07T30050 Canarm IDB07 insulated FC inline duct blower. 3 Phase 0.5 HP, 208-230/460V motor. 1 Week $653.10
IDB07T30075 Canarm IDB07 non-insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $572.00
IDBX07T30075 Canarm IDB-X07 inline cabinet fan. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $704.00
IDBINS07T30075 Canarm IDB07 insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $704.00
IDB09T10075 Canarm IDB09 non-insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $508.00
IDBX09T10075 Canarm IDB-X09 inline cabinet fan. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $508.00
IDBINS09T10075 Canarm IDB09 insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $608.10
IDB09T30075 Canarm IDB09 non-insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $602.80
IDBX09T30075 Canarm IDB-X09 inline cabinet fan. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $602.80
IDBINS09T30075 Canarm IDB09 insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $702.80
IDB10T10075 Canarm IDB10 non-insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $548.90
IDBX10T10075 Canarm IDB-X10 inline cabinet fan. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $548.90
IDBINS10T10075 Canarm IDB10 insulated FC inline duct blower. 1 Phase 0.75 HP, 115-208/230V motor. 1 Week $649.50
IDB10T10150 Canarm IDB10 non-insulated FC inline duct blower. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $648.40
IDBX10T10150 Canarm IDB-X10 inline cabinet fan. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $648.40
IDBINS10T10150 Canarm IDB10 insulated FC inline duct blower. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $751.40
IDB10T30075 Canarm IDB10 non-insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $643.60
IDBX10T30075 Canarm IDB-X10 inline cabinet fan. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $643.60
IDBINS10T30075 Canarm IDB10 insulated FC inline duct blower. 3 Phase 0.75 HP, 208-230/460V motor. 1 Week $746.10
IDB10T30150 Canarm IDB10 non-insulated FC inline duct blower. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $753.80
IDBX10T30150 Canarm IDB-X10 inline cabinet fan. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $753.80
IDBINS10T30150 Canarm IDB10 insulated FC inline duct blower. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $854.40
IDB12T10100 Canarm IDB12 non-insulated FC inline duct blower. 1 Phase 1 HP, 115-208/230V motor. 1 Week $659.60
IDBX12T10100 Canarm IDB-X12 inline cabinet fan. 1 Phase 1 HP, 115-208/230V motor. 1 Week $659.60
IDBINS12T10100 Canarm IDB12 insulated FC inline duct blower. 1 Phase 1 HP, 115-208/230V motor. 1 Week $771.50
IDB12T10150 Canarm IDB12 non-insulated FC inline duct blower. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $697.50
IDBX12T10150 Canarm IDB-X12 inline cabinet fan. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $697.50
IDBINS12T10150 Canarm IDB12 insulated FC inline duct blower. 1 Phase 1.5 HP, 115-208/230V motor. 1 Week $809.40
IDB12T30100 Canarm IDB12 non-insulated FC inline duct blower. 3 Phase 1 HP, 208-230/460V motor. 1 Week $725.90
IDBX12T30100 Canarm IDB-X12 inline cabinet fan. 3 Phase 1 HP, 208-230/460V motor. 1 Week $725.90
IDBINS12T30100 Canarm IDB12 insulated FC inline duct blower. 3 Phase 1 HP, 208-230/460V motor. 1 Week $837.20
IDB12T30150 Canarm IDB12 non-insulated FC inline duct blower. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $800.50
IDBX12T30150 Canarm IDB-X12 inline cabinet fan. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $800.50
IDBINS12T30150 Canarm IDB12 insulated FC inline duct blower. 3 Phase 1.5 HP, 208-230/460V motor. 1 Week $840.80
IDB15T10200 Canarm IDB15 non-insulated FC inline duct blower. 1 Phase 2 HP, 115-208/230V motor. 1 Week $943.20
IDBX15T10200 Canarm IDB-X15 inline cabinet fan. 1 Phase 2 HP, 115-208/230V motor. 1 Week $943.20
IDBINS15T10200 Canarm IDB15 insulated FC inline duct blower. 1 Phase 2 HP, 115-208/230V motor. 1 Week $1112.60
IDB15T10300 Canarm IDB15 non-insulated FC inline duct blower. 1 Phase 3 HP, 208/230V motor. 1 Week $1061.10
IDBX15T10300 Canarm IDB-X15 inline cabinet fan. 1 Phase 3 HP, 208/230V motor. 1 Week $1061.10
IDBINS15T10300 Canarm IDB15 insulated FC inline duct blower. 1 Phase 3 HP, 208/230V motor. 1 Week $1231.00
IDB15T30200 Canarm IDB15 non-insulated FC inline duct blower. 3 Phase 2 HP, 208-230/460V motor. 1 Week $1092.40
IDBX15T30200 Canarm IDB-X15 inline cabinet fan. 3 Phase 2 HP, 208-230/460V motor. 1 Week $1092.40
IDBINS15T30200 Canarm IDB15 insulated FC inline duct blower. 3 Phase 2 HP, 208-230/460V motor. 1 Week $1260.60
IDB15T30300 Canarm IDB15 non-insulated FC inline duct blower. 3 Phase 3 HP, 208-230/460V motor. 1 Week $1215.00
IDBX15T30300 Canarm IDB-X15 inline cabinet fan. 3 Phase 3 HP, 208-230/460V motor. 1 Week $1215.00
IDBINS15T30300 Canarm IDB15 insulated FC inline duct blower. 3 Phase 3 HP, 208-230/460V motor. 1 Week $1384.30
9020101-G Canarm IDB07 non-insulated FC inline duct blower. No motor or drives. 1 Week $294.30
9020102-G Canarm IDB09 non-insulated FC inline duct blower. No motor or drives. 1 Week $330.40
9020103-G Canarm IDB10 non-insulated FC inline duct blower. No motor or drives. 1 Week $351.70
9020104-G Canarm IDB12 non-insulated FC inline duct blower. No motor or drives. 1 Week $431.10
9020105-G Canarm IDB15 non-insulated FC inline duct blower. No motor or drives. 1 Week $650.70
9020106-G Canarm IDB07 insulated FC inline duct blower. No motor or drives. 1 Week $392.00
9020107-G Canarm IDB09 insulated FC inline duct blower. No motor or drives. 1 Week $415.10
9020108-G Canarm IDB10 insulated FC inline duct blower. No motor or drives. 1 Week $450.60
9020109-G Canarm IDB12 insulated FC inline duct blower. No motor or drives. 1 Week $522.80
9020110-G Canarm IDB15 insulated FC inline duct blower. No motor or drives. 1 Week $789.90
9020116-G Canarm IDB07-2 insulated FC inline duct blower. No motor or drives. 3 Weeks $1200.80
9020117-G Canarm IDB09-2 insulated FC inline duct blower. No motor or drives. 3 Weeks $1134.50
9020118-G Canarm IDB10-2 insulated FC inline duct blower. No motor or drives. 3 Weeks $1232.20
9020119-G Canarm IDB12-2 insulated FC inline duct blower. No motor or drives. 3 Weeks $1382.00
9020120-G Canarm IDB15-2 insulated FC inline duct blower. No motor or drives. 3 Weeks $2054.60
F207A-G**9020001-G Canarm insulated galvanized FILTER SECTION. For IDB07 blower. 1-2 Weeks $110.10
F209A-G**9020002-G Canarm insulated galvanized FILTER SECTION. For IDB09 blower. 1-2 Weeks $125.50
F210A-G**9020003-G Canarm insulated galvanized FILTER SECTION. For IDB10 blower. 1-2 Weeks $125.50
F212A-G**9020004-G Canarm insulated galvanized FILTER SECTION. For IDB12 blower. 1-2 Weeks $145.10
F215A-G**9020005-G Canarm insulated galvanized FILTER SECTION. For IDB15 blower. 1-2 Weeks $172.30
