S&P LPD Rooftop Exhausters
Ultra low profile direct drive centrifugal roof/wall exhausters. Model LPD direct drive units are used to exhaust air from all types of commercial and institutional buildings such as hospitals and health care facilities, schools, recreational buildings, machinery and equipment rooms, offices, retail stores and similar applications. The backward curved centrifugal wheel makes this unit suitable for either ducted or nonducted applications.
The spun aluminum exterior provides an attractive appearance. Direct drive units use smaller diameter wheels, resulting in low sound levels and quiet operation.
*** $1 SHIPPING ON ALL S&P COMMERCIAL ORDERS! Not valid for Canada, HI & AK. ***

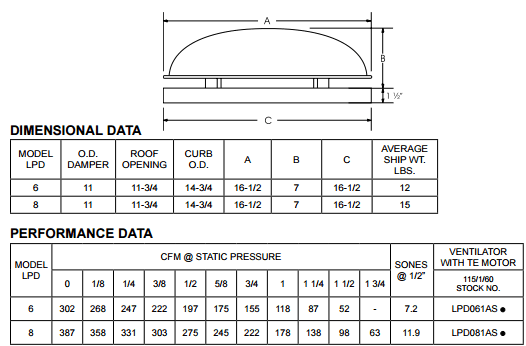

| DIMENSIONAL DATA | |||||||
|---|---|---|---|---|---|---|---|
| MODEL LDP | O.D. Damper | Roof Opening | Curb O.D. | A | B | C | Average Ship Wt. LBS |
| 6 | 11 | 11-3/4 | 14-3/4 | 16-1/2 | 7 | 16-1/2 | 12 |
| 8 | 11 | 11-3/4 | 14-3/4 | 16-1/2 | 7 | 16-1/2 | 15 |
Catalog File Download (PDF file)
FEATURES
- Ultra Low Profile
- AMCA Air & Sound Licensed
- UL 705 Listed
- UPS Shipping Carton
- 5 Year Housing Warranty
- Up To 140 deg F Airstream Temperature
- Roof or Sidewall Mount
CONSTRUCTION
- Aluminum Construction
- Stainless Steel Exterior Fasteners
- Backward Curved Centrifugal Wheel
- Aluminum Birdscreen
- Conduit Wiring Chase
- Service Disconnect Switch
- Precision Balanced to ISO Standard 1940
MOTOR
- Unique External Rotor Design
- Permanently Lubricated Bearings
- 3 Year Motor Warranty
- Internal Thermal Protection
- 100% Speed Controllable
- Totally Enclosed and Continuous Duty
| MODEL LPD | CFM @ STATIC PRESSURE | RPM (NOM.) | MAX MOTOR WATTS & AMPS | SONES @ 1/2" | VENTILATOR WITH TE MOTOR | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1/8 | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 1/2 | 1 3/4 | 115/1/60 STOCK NO. | 230/1/50-60 STOCK NO. | ||||
| 6 | 302 | 268 | 247 | 222 | 197 | 175 | 155 | 118 | 87 | 52 | 2800 | 90 WATTS 0.8 AMPS | 7.2 | LPD06EAS | N/A | |
| 8 | 387 | 358 | 331 | 303 | 275 | 245 | 222 | 178 | 138 | 28 | 63 | 2775 | 115 WATTS 1.0 AMPS | 11.9 | LPD06EAS | N/A |
