S&P RCXII Rooftop Gravity Relief Vents
Soler & Palau

S&P RCXII Rooftop Gravity Relief Vents

Soler & Palau Commercial - Series RCXII gravity relief/intake ventilators. S&P relief and intake ventilators are used to exhaust (relief) or supply (intake) air from or to an enclosed area without the need for a power operated fan.

They rely on a difference in static pressure inside and outside the area to create an air flow through the ventilator from the area of higher pressure to the area of lower pressure. If the enclosed area is under a negative pressure, air will flow into the enclosed area (intake). If the enclosed area has a positive pressure, air will flow from it to the outside (relief). These units can also operate as gravity ventilators, allowing air to flow from an enclosed area using the 'Stack Effect'.

*** $1 SHIPPING ON ALL S&P COMMERCIAL ORDERS!  Not valid for Canada, HI & AK.  ***

Model
Motor: No Motor | Motor RPM:

Curb
No curb
12 Inch High Roof Mounting Curb - 611214


Damper
No backdraft damper
Gravity Damper For Exhaust Air Applications - 2401.0808U
Motorized 115/1/60 Damper For Exhaust Air Applications - 2401.M0808U
Gravity Damper For Supply Air Applications - 2401.0808D
Motorized 115/1/60 Damper For Supply Air Applications - 2401.M0808D

Be sure to update the price if you change options. Press "price it" below.


Model
(including options)

 RCXII08S

Unit price

$143.00
For quantity pricing, please contact us at 877-711-4822.

Ships

2-3 Days



Quantity:

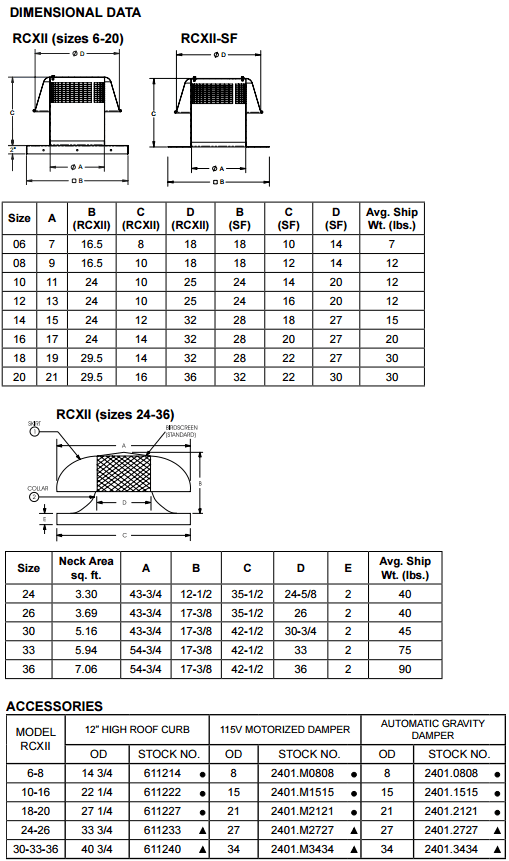

DIMENSIONAL DATA
MODEL RCXII NECK AREA SQ.FT. A B C D E Average Ship Wt. Lbs.
8 0.39 22 8 16 1/2 8 1/2 2 10
10 0.59 22 8 16 1/2 10 1/2 2 15
12 0.85 22 8 3/8 24 12 1/2 2 24
15 1.23 22 8 3/8 24 15 2 24
18 1.89 32 3/4 12 1/2 29 1/2 18 3/4 2 35
20 2.18 32 3/4 12 1/2 29 1/2 20 1/4 2 35
24 3.30 43 3/4 12 1/2 35 1/2 24 5/8 2 57
26 3.69 43 3/4 17 3/8 35 1/2 26 2 57
30 5.16 43 3/4 17 3/8 42 1/2 30 3/4 2 75
33 5.94 54 3/4 17 3/8 42 1/2 33 2 75
36 7.06 54 3/4 17 3/8 42 1/2 36 2 90


Catalog File Download (PDF file)

CONSTRUCTION

  • Low contour spun aluminum hood for attractive appearance.
  • All heavy-gauge aluminum construction.
  • Weather resistant design for long life and maintenance-free operation.
  • Galvanized bird screen is standard.
  • One-piece curb with spun inlet for maximum efficiency.
  • Shipped completely assembled for ease in installation.

MODEL RCXII Gravity Relief Ventilator
MODEL RCXII THROAT AREA SQ.FT. CFM Static Pressure
.03 .06 .09 .125 .150 .20 .25 .30 STOCK NO.
8 0.39 181 256 314 370 405 468 523 573 RCXII08S
10 0.59 274 387 475 559 613 708 791 867 RCXII10S
12 0.85 395 558 684 806 883 1020 1140 1250 RCXII12S
15 1.23 572 808 990 1166 1278 1538 1649 1808 RCXII15S
18 1.89 879 1242 1521 1792 1963 2268 2534 2778 RCXII18S
20 2.18 1014 1432 1755 2067 2265 2616 2923 3205 RCXII20S
24 3.30 1535 2168 2656 3128 3429 3960 4425 4851 RCXII24S
26 3.69 1716 2424 2970 3498 3834 4428 4948 5424 RCXII26S
30 5.16 2399 3390 4154 4892 5361 6192 6920 7585 RCXII30S
33 5.94 2762 3903 4782 5631 6172 7128 7966 8732 RCXII33S
36 7.06 3283 4638 5683 6693 7335 8472 9467 10378 RCXII36S
