S&P GED Direct Drive Sidewall Exhausters
Soler & Palau

S&P GED Direct Drive Sidewall Exhausters

Soler & Palau Commercial - Series GED Sidewall direct-drive propeller exhaust fans. Soler & Palau type GED wall propeller fans feature the maximum efficiency, low maintenance and durable, economical operation resulting from the direct drive design.

It is available in exhaust (GED) configurations to provide general ventilation for a wide variety of buildings and enclosed areas within buildings. Examples include factories, assembly plants, churches, gymnasiums, garages, jails, machine rooms and many others. They feature extremely quiet operation and an integral motor side guard as standard.

*** $1 SHIPPING ON ALL S&P COMMERCIAL ORDERS!  Not valid for Canada, HI & AK.  ***

Model
Motor: 1/10 Hp 115/1/60 | Motor RPM: 1550

Damper
No backdraft damper
Gravity Backdraft Damper - S3GA12
Assembled Wall Collar, OSHA Guard, and Shutter - WCPGED10


Speed control
No speed controller
5 Amp Speed Controller - Up To 1/3 HP - 2727.1

Be sure to update the price if you change options. Press "price it" below.


Model
(including options)

 GED10JH1AS

Unit price

$242.00
For quantity pricing, please contact us at 877-711-4822.

Ships

1-2 Weeks



Quantity:

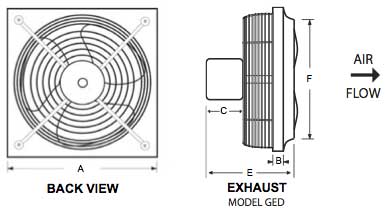

DIMENSIONAL DATA
10 16 1 6 10 3/8 10 3/8 30 12 S3GA12
12 16 1 6 10 3/8 12 3/8 30 12 S3GA12
14 20 1 6 11 1/2 14 3/8 34 16 S3GA16
16 20 1 6 11 5/8 16 3/8 37 16 S3GA16
18 24 1 9 11 5/8 18 3/8 45 20 S3GA20
20 24 1 7 11 5/8 20 2/8 50 20 S3GA20


Catalog File Download (PDF file)

CONSTRUCTION

Panel Assembly

  • 16 gauge galvanized steel.
  • One piece spun venturi for maximum efficiency.
  • Pre-punched mounting holes for easy installation.
  • Formed flanges for added rigidity.
  • Integral OSHA approved motor side guard.

Propeller

  • Attached directly to motor shaft for maximum efficiency.
  • Precision pitched, fabricated aluminum blades (3 & 4 blade models).
  • Polypropylene blades (6 blade models).
  • Statically and dynamically balanced.

Motors

  • Permanently lubricated sealed ball bearing type.
  • Sleeve bearings on low HP models.
  • Open drip-proof construction is standard.

MODEL GED Sidewall Direct Drive Propeller Fan Ventilator with Open Drip-proof Motor
Model GRD Motor Hp RPM NO. OF BLADES Sones @ 0 FT. CFM/BHp at Static Pressure 115/1/60*
0 1/10 1/8 1/4 3/8 1/2 5/8 3/4 Stock No.
10 1/10 1550 4 7.8 718/.04 611/.04 561/.04 391/.06 336/.07 290/.08 245/.10 197/.11 GED10JH1AS
12 1/10 1550 4 12.9 1362/.09 1263/.10 1236/.10 990/.11 734/.13 628/.15 - - GED12JH1AS
1/4 1700 4 11.9 1489/.17 1410/.18 1386/.18 1228/.19 966/.20 794/.22 720/.25 660/.27 GED12MH1AS
14 1/4 1700 4 13.1 1967/.20 1862/.22 1837/.23 1704/.24 1431/.26 1142/.29 - - GED14MH1AS
1/2 1700 4 17.1 2533/.36 2410/.38 2376/.38 2160/.40 1866/.41 1509/.42 1414/.46 1299/.50 GED14QH1AS
16 1/4 1140 4 9.5 2467/.20 2245/.21 2159/.22 1734/.23 1347/.26 1102/.29 - - GED16MM1AS
1/3 1700 3 15.8 2634/.27 2516/.29 2482/.29 2287/.32 2050/.34 1719/.36 1477/.39 - GED16PH1AS
18 1/4 1140 3 10.7 3003/.20 2732/.21 2658/.21 2196/.23 1474/.24 1186/.26 929/.28 - GED18MM1AS
1/4 1700 3 15.7 3091/.24 2930/.26 2886/.27 2653/.29 2388/.31 2097/.33 1535/.35 1282/.37 GED18MH1AS
1/2 1700 3 16.0 3816/.40 3640/.43 3593/.44 3352/.47 3098/.50 2803/.52 2371/.54 1872/.55 GED18QH1AS
20 1/4 1140 3 12.2 3575/.21 3264/.23 3177/.24 2715/.26 1765/.27 - - - GED20MM1AS
1/2 1700 3 14.1 3460/.23 3285/.27 3242/.27 3006/.31 2727/.35 2362/.39 1945/.45 1676/.53 GED20QH1AS
