Kanomax A031 A034 A041 A044 Series
Kanomax

Kanomax A031 A034 A041 A044 Series

Applications

  • HVAC Testing
  • IAQ Investigations
  • Industrial Hygiene
  • Filter Face Air Velocity Measurement
  • Facility Certification
  • Cleanroom Study

Features

  • Single Probe capable of measuring Air velocity and Temperature
  • Telescopic Straight and Articulating Probe
  • Data Loggin Function
  • Highly Visible LCD
  • Standard RS232 and optional Analog outputs

Benefits

  • Data Logging Function allows user to reviewe the measurement on-screen, print or download to PC.
  • Articulating probe for various applications.
  • Telescopic probe for hard-to-reach area and in-duct measurements.
model description usually ships price QTY
A031 Kanomax high accuracy hot wire anemometer. +/- 3% accuracy. Includes carrying case, manual, batteries, cable,software, AC adapter, and NIST Certificate. VT, STRAIGHT PROBE. 1-2 days $799.00
A034 Kanomax high accuracy hot wire anemometer. +/- 3% accuracy. Includes carrying case, manual, batteries, cable,software, AC adapter, and NIST Certificate. VT, ARTICULATE PROBE. 1-2 days $899.00
A041 Kanomax high accuracy hot wire anemometer. +/- 3% accuracy. Includes carrying case, manual, batteries, cable,software, AC adapter, and NIST Certificate. VTP, STRAIGHT PROBE. 1-2 days $988.00
A044 Kanomax high accuracy hot wire anemometer. +/- 3% accuracy. Includes carrying case, manual, batteries, cable,software, AC adapter, and NIST Certificate. VTP, ARTICULATE PROBE. 1-2 days $1099.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

Kanomax A031 Catalog (PDF file)

Kanomax Complete Product Catalog (PDF file)

Kanomax HVAC Solutions Catalog (PDF file)

Kanomax IAQ Solutions Catalog (PDF file)

 Air Velocity
 Range
 20 to 6,000 FPM (0.1 to 30 m/s)
Accuracy
+/- 2.0 % of reading
Resolution
1 FPM or 0.01 m/s (0 to 9.99 m/s), 0.1 m/s (10 to 30 m/s)
 Volumetric
 Flowrate		 Imperial
 9031 CFM (at 20 FPM)
2,709,360 CFM (at 6000 FPM)
Metric
 2,341 m3/s (at 0.1 m/s)
702,270 m3/s (at 30.0 m/s)
 Temperature
 Range
 -4 to 140F (-20 to 60C)
Accuracy
 +/- 1F or +/- 0.3C
Resolution 0.1F or 0.1C
 Differential
 Pressure
 (A041, A044)
 Range
 -5.00 to +5.00 KPa
Accuracy +/- 3.0 % of reading +/- 0.01 KPa
Resolution 0.01 KPa
 Power Supply
6 x AA Alkaline Batteries or AC Adapter
 Accessories Carrying Case, Operation Manual, Batteries, AC adapter
PC Comm. Cable, Comm. Software (for WIndows)
 Options

Analog Output, Printer, Printer Cable, Rolled Paper, AC adapter for Printer

Air Velocity Probe

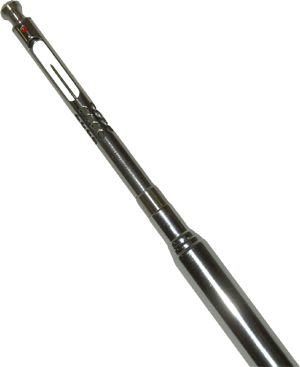

Straight Probe for A031 and A041

Articulating Probe for A034 and A044
Length: 39.4in.(100 cm) - Telescopic
Diamter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm)
Length: 39.4in.(100 cm) - Telescopic
Diamter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm)
Articulating section length: 3.543in.(90.0mm)
