S&P ARE Direct Drive Rooftop Exhausters
Soler & Palau

S&P ARE Direct Drive Rooftop Exhausters

Soler & Palau Commercial - Series ARE dome direct-drive propeller exhaust roof ventilators. The AR series offers powerful axial intake (ARS) or exhaust (ARE) performance in a roof mount design that is compact, lightweight and easy to install.

The AR series is an excellent choice for factories, shops, restaurants, bathrooms, offices, schools and other similar applications where light to moderate static pressures are present.

*** $1 SHIPPING ON ALL S&P COMMERCIAL ORDERS!  Not valid for Canada, HI & AK.  ***

Model
Motor: 1/15 Hp 115/1/60 | Motor RPM: 1550

Curb
No curb
12 Inch Mounting Curb For ARE-10 Units - 91812221


Damper
No backdraft damper
Gravity Backdraft Damper For ARE-10 Units - 411014


Speed control
No speed controller
5 Amp, 120V Speed Controller - 2727.1

Be sure to update the price if you change options. Press "price it" below.


Model
(including options)

 ARE10IH1AS

Unit price

$379.00
For quantity pricing, please contact us at 877-711-4822.

Ships

2-3 Days



Quantity:

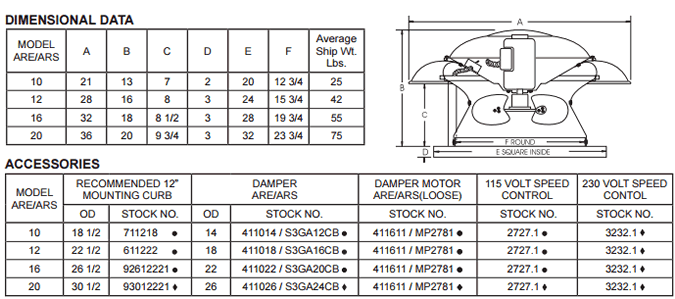

DIMENSIONAL DATA
MODEL ARE/ARS A B C D E F Average Ship Wt. Lbs.
10 21 13 7 2 20 12 3/4 25
12 28 16 8 3 24 15 3/4 42
16 32 18 8 1/2 3 28 19 3/4 55
20 36 20 9 3/4 3 32 23 3/4 75


Catalog File Download (PDF file)

CONSTRUCTION

Housing

  • Heavy gauge all aluminum housing.
  • Exclusive U-Spring suspension compensates for both radial and lateral movement and provides 44% better vibration isolation than rubber isolators.
  • External wiring chase for easy connection.
  • Quick access to motor compartment for easy maintenance.

Propeller

  • Attaches directly to motor shaft for maximum efficiency.
  • Precision pitched, heavy gauge aluminum blades with steel hub. Blades are designed for specific exhaust or supply requirements.

Speed Controllable Motor

  • Standard motors are single speed, speed controllable and drip-proof.
  • All motors are rated for continuous duty.
  • Disconnect is standard on ODP motors.
  • Motors are shipped assembled with factory test run assurance.

MODEL ARE
 Direct Drive Centrifugal Sidewall Exhauster Ventilator with Open Drip-proof Motor
Model ARE Motor Hp Max. BHp RPM Sones @ 0 SP CFM at Static Pressure 115/1/60* 208-230/1/60
10 1 1/5 0.067
  0 1/10 1/8 1/4 3/8 1/2 5/8 3/4 Stock No. Stock No.
1230+ - 495 322 268 - - - - - ARE10IH1AS N/A
1390+ - 655 532 498 316 - - - -
12 1/41/4 0.1250.250 1550* 4.2 825 730 570 405 - - - - ARE12MM1AS ARE12MM1CS
820+ - 793 417 365 - - - - -
940+ - 1088 914 818 478 375 - - -
1140* 4.1 1320 1224 1190 730 570 320 - -
1030+ - 1173 1035 975 600 - - - - ARE12MH1AS ARE12MH1CS
1375+ - 1566 1450 1430 1163 866 - - -
1725* 6.1 2000 1857 1840 1760 1570 1160 1060 970
16 1/41/3 0.1670.333 685+ - 1226 796 700 - - - - - ARE16MM1AS ARE16MM1CS
940+ - 1682 1378 1297 926 - - - -
1140* 4.5 2040 1796 1730 1400 1110 930 - -
1030+ - 1827 1572 1549 1114 - - - - ARE16PH1AS ARE16PH1CS
1375+ - 2439 2187 2149 2045 1704 - - -
1725* 9.5 3060 2863 2810 2650 2580 2410 2020 1800
20 1/4 0.25 685+ - 1911 1442 1318 - - - - - ARE20MM1AS ARE20MM1CS
940+ - 2622 2343 2256 1776 - - - -
1140* 6.9 3180 2963 2900 2530 2140 1980 - -
