S&P CM Belt Driven Utility Vent Blower Sets - UL705

S&P CM Belt Driven Utility Vent Blower Sets - UL705

The CM Series belt driven backward inclined utility vent fan from S&P offers an excellent option for all medium and high pressure exhaust or supply applications for commercial, institutional or light industrial air moving projects. Supplied complete with motor mounted on an adjustable base; v-belt drives; heavy duty ball bearings and integral mounting platform.  UL705 listed models.

• Performance: 500-25,000 CFM with Static Pressures up to 5.5 in. W.G.
• Backward inclined CW or CCW orientation nonoverloading wheels, sizes 10 - 36 ins
• Steel sheet metal construction with corrosion resistant Epoxy Powder Coating
• Adjustable rotation and discharge orientations in accordance with AMCA 99-2406-83
• cULus 705, Power Ventilator

For accessories see, the CM ACCESSORIES PAGE.

model description usually ships price QTY
CM10MH1US S&P CM10 utility vent set BD fan. UL-705 listed. 1/4 Hp, 115/208-230V/1/60 motor. 2050 RPM. Call for availability $2510.50
CM10MH3US S&P CM10 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 2050 RPM. Call for availability $2510.50
CM10ML1US S&P CM10 utility vent set BD fan. UL-705 listed. 1/4 Hp, 115/208-230V/1/60 motor. 1675 RPM. Call for availability $2510.50
CM10ML3US S&P CM10 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 1675 RPM. Call for availability $2510.50
CM10PH1US S&P CM10 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 2250 RPM. Call for availability $2508.90
CM10PH3US S&P CM10 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 2250 RPM. Call for availability $2508.90
CM10QH1US S&P CM10 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 2575 RPM. Call for availability $2565.00
CM10QH3US S&P CM10 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 2575 RPM. Call for availability $2565.00
CM10RH1US S&P CM10 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 2950 RPM. Call for availability $2581.60
CM10RH3US S&P CM10 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 2950 RPM. Call for availability $2581.60
CM12MH1US S&P CM12 utility vent set BD fan. UL-705 listed. 1/4 Hp, 115/208-230V/1/60 motor. 1375 RPM. Call for availability $3081.30
CM12MH3US S&P CM12 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 1375 RPM. Call for availability $3081.30
CM12PH1US S&P CM12 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 1525 RPM. Call for availability $3056.80
CM12PH3US S&P CM12 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 1525 RPM. Call for availability $3056.80
CM12QH1US S&P CM12 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 1750 RPM. Call for availability $3156.30
CM12QH3US S&P CM12 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 1750 RPM. Call for availability $3156.30
CM12RH1US S&P CM12 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 2000 RPM. Call for availability $3141.30
CM12RH3US S&P CM12 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 2000 RPM. Call for availability $3141.30
CM12SH1US S&P CM12 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 2200 RPM. Call for availability $3164.20
CM12SH3US S&P CM12 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 2200 RPM. Call for availability $3164.20
CM12TH1US S&P CM12 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 2525 RPM. Call for availability $3183.90
CM12TH3US S&P CM12 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 2525 RPM. Call for availability $3183.90
CM12VH1US S&P CM12 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 2775 RPM. Call for availability $3270.00
CM12VH3US S&P CM12 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 2775 RPM. Call for availability $3270.00
CM14MH1US S&P CM14 utility vent set BD fan. UL-705 listed. 1/4 Hp, 115/208-230V/1/60 motor. 1150 RPM. Call for availability $2512.90
CM14MH3US S&P CM14 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 1150 RPM. Call for availability $2512.90
CM14PH1US S&P CM14 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 1250 RPM. Call for availability $2497.10
CM14PH3US S&P CM14 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 1250 RPM. Call for availability $2497.10
CM14QH1US S&P CM14 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 1445 RPM. Call for availability $2581.60
CM14QH3US S&P CM14 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 1445 RPM. Call for availability $2581.60
CM14RH1US S&P CM14 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 1650 RPM. Call for availability $2646.30
CM14RH3US S&P CM14 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 1650 RPM. Call for availability $2646.30
CM14SH1US S&P CM14 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 1800 RPM. Call for availability $2623.40
CM14SH3US S&P CM14 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 1800 RPM. Call for availability $2623.40
CM14TH1US S&P CM14 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 2075 RPM. Call for availability $2737.10
CM14TH3US S&P CM14 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 2075 RPM. Call for availability $2737.10
CM14VH1US S&P CM14 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 2290 RPM. Call for availability $2891.80
CM14VH3US S&P CM14 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 2290 RPM. Call for availability $2891.80
CM14WH3US S&P CM14 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 2600 RPM. Call for availability $3348.20
CM16MH1US S&P CM16 utility vent set BD fan. UL-705 listed. 1/4 Hp, 115/208-230V/1/60 motor. 950 RPM. Call for availability $2597.40
CM16MH3US S&P CM16 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 950 RPM. Call for availability $2597.40
CM16PH1US S&P CM16 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 1050 RPM. Call for availability $2583.20
CM16PH3US S&P CM16 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 1050 RPM. Call for availability $2583.20
CM16QH1US S&P CM16 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 1200 RPM. Call for availability $2646.30
CM16QH3US S&P CM16 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 1200 RPM. Call for availability $2646.30
CM16RH1US S&P CM16 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 1375 RPM. Call for availability $2707.10
CM16RH3US S&P CM16 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 1375 RPM. Call for availability $2707.10
CM16SH1US S&P CM16 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 1510 RPM. Call for availability $2672.40
CM16TH1US S&P CM16 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 1735 RPM. Call for availability $2785.30
CM16TH3US S&P CM16 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 1735 RPM. Call for availability $2785.30
CM16VH1US S&P CM16 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 1900 RPM. Call for availability $2951.80
CM16VH3US S&P CM16 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 1900 RPM. Call for availability $2951.80
CM16WH3US S&P CM16 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 2175 RPM. Call for availability $3356.10
CM18MH3US S&P CM18 utility vent set BD fan. UL-705 listed. 1/4 Hp, 208-230/460/3/60 motor. 775 RPM. Call for availability $3179.20
CM18PH1US S&P CM18 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 850 RPM. Call for availability $3135.80
CM18PH3US S&P CM18 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 850 RPM. Call for availability $3135.80
CM18QH1US S&P CM18 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 975 RPM. Call for availability $3214.70
CM18QH3US S&P CM18 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 975 RPM. Call for availability $3214.70
CM18RH1US S&P CM18 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 1120 RPM. Call for availability $3285.00
CM18RH3US S&P CM18 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 1120 RPM. Call for availability $3285.00
CM18SH1US S&P CM18 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 1225 RPM. Call for availability $3263.70
CM18SH3US S&P CM18 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 1225 RPM. Call for availability $3263.70
CM18TH1US S&P CM18 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 1400 RPM. Call for availability $3348.90
CM18TH3US S&P CM18 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 1400 RPM. Call for availability $3348.90
CM18VH1US S&P CM18 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 1550 RPM. Call for availability $3558.20
CM18VH3US S&P CM18 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 1550 RPM. Call for availability $3558.20
CM18XH3US S&P CM18 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 2100 RPM. Call for availability $4044.50
CM20PH1US S&P CM20 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 720 RPM. Call for availability $3592.90
CM20PH3US S&P CM20 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 720 RPM. Call for availability $3592.90
CM20QH1US S&P CM20 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 825 RPM. Call for availability $3653.70
CM20QH3US S&P CM20 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 825 RPM. Call for availability $3653.70
CM20RH1US S&P CM20 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 940 RPM. Call for availability $3712.10
CM20RH3US S&P CM20 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 940 RPM. Call for availability $3712.10
CM20SH1US S&P CM20 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 1040 RPM. Call for availability $3673.40
CM20SH3US S&P CM20 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 1040 RPM. Call for availability $3673.40
CM20TH1US S&P CM20 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 1175 RPM. Call for availability $3761.10
CM20TH3US S&P CM20 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 1175 RPM. Call for availability $3761.10
CM20VH1US S&P CM20 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 1300 RPM. Call for availability $4216.60
CM20VH3US S&P CM20 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 1300 RPM. Call for availability $4216.60
CM20WH3US S&P CM20 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 1500 RPM. Call for availability $4474.70
CM20XH3US S&P CM20 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 1770 RPM. Call for availability $4474.70
CM22PH1US S&P CM22 utility vent set BD fan. UL-705 listed. 1/3 Hp, 115/208-230V/1/60 motor. 600 RPM. Call for availability $3822.60
CM22PH3US S&P CM22 utility vent set BD fan. UL-705 listed. 1/3 Hp, 208-230/460/3/60 motor. 600 RPM. Call for availability $3822.60
CM22QH1US S&P CM22 utility vent set BD fan. UL-705 listed. 1/2 Hp, 115/208-230V/1/60 motor. 680 RPM. Call for availability $3895.30
CM22RH1US S&P CM22 utility vent set BD fan. UL-705 listed. 3/4 Hp, 115/208-230V/1/60 motor. 785 RPM. Call for availability $3967.90
CM22RH3US S&P CM22 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 785 RPM. Call for availability $3967.90
CM22SH1US S&P CM22 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 860 RPM. Call for availability $3926.10
CM22SH3US S&P CM22 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 860 RPM. Call for availability $3926.10
CM22TH3US S&P CM22 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 980 RPM. Call for availability $4026.30
CM22VH3US S&P CM22 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 1085 RPM. Call for availability $4171.60
CM22WH3US S&P CM22 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 1250 RPM. Call for availability $4516.60
CM22XH3US S&P CM22 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 1475 RPM. Call for availability $4766.10
CM22YH3US S&P CM22 utility vent set BD fan. UL-705 listed. 7.5 Hp, 208-230/460/3/60 motor. 1685 RPM. Call for availability $5430.00
CM24SH3US S&P CM24 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 700 RPM. Call for availability $4459.70
CM22TH1US S&P CM22 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 980 RPM. Call for availability $4026.30
CM22VH1US S&P CM22 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 1085 RPM. Call for availability $4171.60
CM24QH3US S&P CM24 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 555 RPM. Call for availability $4425.00
CM24RH3US S&P CM24 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 640 RPM. Call for availability $4464.50
CM24SH1US S&P CM24 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 700 RPM. Call for availability $4459.70
CM24TH1US S&P CM24 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 805 RPM. Call for availability $4542.60
CM24TH3US S&P CM24 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 805 RPM. Call for availability $4542.60
CM24VH1US S&P CM24 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 880 RPM. Call for availability $4665.00
CM24VH3US S&P CM24 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 880 RPM. Call for availability $4665.00
CM24WH3US S&P CM24 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 1020 RPM. Call for availability $4923.90
CM24XH3US S&P CM24 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 1205 RPM. Call for availability $5238.90
CM24YH3US S&P CM24 utility vent set BD fan. UL-705 listed. 7.5 Hp, 208-230/460/3/60 motor. 1385 RPM. Call for availability $5840.50
CM24ZH3US S&P CM24 utility vent set BD fan. UL-705 listed. 10 Hp, 208-230/460/3/60 motor. 1520 RPM. Call for availability $6023.70
CM27QH3US S&P CM27 utility vent set BD fan. UL-705 listed. 1/2 Hp, 208-230/460/3/60 motor. 470 RPM. Call for availability $4901.10
CM27RH3US S&P CM27 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 530 RPM. Call for availability $4877.40
CM27SH1US S&P CM27 utility vent set BD fan. UL-705 listed. 1 Hp, 115/208-230V/1/60 motor. 590 RPM. Call for availability $4852.10
CM27SH3US S&P CM27 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 590 RPM. Call for availability $4852.10
CM27TH1US S&P CM27 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 675 RPM. Call for availability $4946.80
CM27TH3US S&P CM27 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 675 RPM. Call for availability $4946.80
CM27VH1US S&P CM27 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 745 RPM. Call for availability $5061.30
CM27VH3US S&P CM27 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 745 RPM. Call for availability $5061.30
CM27WH3US S&P CM27 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 850 RPM. Call for availability $5319.50
CM27XH3US S&P CM27 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 1010 RPM. Call for availability $5533.40
CM27YH3US S&P CM27 utility vent set BD fan. UL-705 listed. 7.5 Hp, 208-230/460/3/60 motor. 1160 RPM. Call for availability $6128.70
CM27ZH3US S&P CM27 utility vent set BD fan. UL-705 listed. 10 Hp, 208-230/460/3/60 motor. 1270 RPM. Call for availability $6453.90
CM30RH3US S&P CM30 utility vent set BD fan. UL-705 listed. 3/4 Hp, 208-230/460/3/60 motor. 435 RPM. Call for availability $6303.90
CM30SH3US S&P CM30 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 485 RPM. Call for availability $5859.50
CM30TH1US S&P CM30 utility vent set BD fan. UL-705 listed. 1.5 Hp, 115/208-230V/1/60 motor. 550 RPM. Call for availability $5867.40
CM30TH3US S&P CM30 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 550 RPM. Call for availability $5867.40
CM30VH3US S&P CM30 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 605 RPM. Call for availability $5929.70
CM30XH3US S&P CM30 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 820 RPM. Call for availability $6635.50
CM30YH3US S&P CM30 utility vent set BD fan. UL-705 listed. 7.5 Hp, 208-230/460/3/60 motor. 940 RPM. Call for availability $6998.70
CM30WH3US S&P CM30 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 695 RPM. Call for availability $6453.90
CM30VH1US S&P CM30 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 605 RPM. Call for availability $5929.70
CM30ZH3US S&P CM30 utility vent set BD fan. UL-705 listed. 10 Hp, 208-230/460/3/60 motor. 1030 RPM. Call for availability $6884.20
CM36SH3US S&P CM36 utility vent set BD fan. UL-705 listed. 1 Hp, 208-230/460/3/60 motor. 400 RPM. Call for availability $9051.30
CM36TH3US S&P CM36 utility vent set BD fan. UL-705 listed. 1.5 Hp, 208-230/460/3/60 motor. 460 RPM. Call for availability $8692.90
CM36VH1US S&P CM36 utility vent set BD fan. UL-705 listed. 2 Hp, 115/208-230V/1/60 motor. 500 RPM. Call for availability $9096.30
CM36VH3US S&P CM36 utility vent set BD fan. UL-705 listed. 2 Hp, 208-230/460/3/60 motor. 500 RPM. Call for availability $9096.30
CM36WH3US S&P CM36 utility vent set BD fan. UL-705 listed. 3 Hp, 208-230/460/3/60 motor. 575 RPM. Call for availability $9551.80
CM36XH3US S&P CM36 utility vent set BD fan. UL-705 listed. 5 Hp, 208-230/460/3/60 motor. 680 RPM. Call for availability $9247.10
CM36YH3US S&P CM36 utility vent set BD fan. UL-705 listed. 7.5 Hp, 208-230/460/3/60 motor. 785 RPM. Call for availability $9954.50
CM36ZH3US S&P CM36 utility vent set BD fan. UL-705 listed. 10 Hp, 208-230/460/3/60 motor. 860 RPM. Call for availability $10326.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

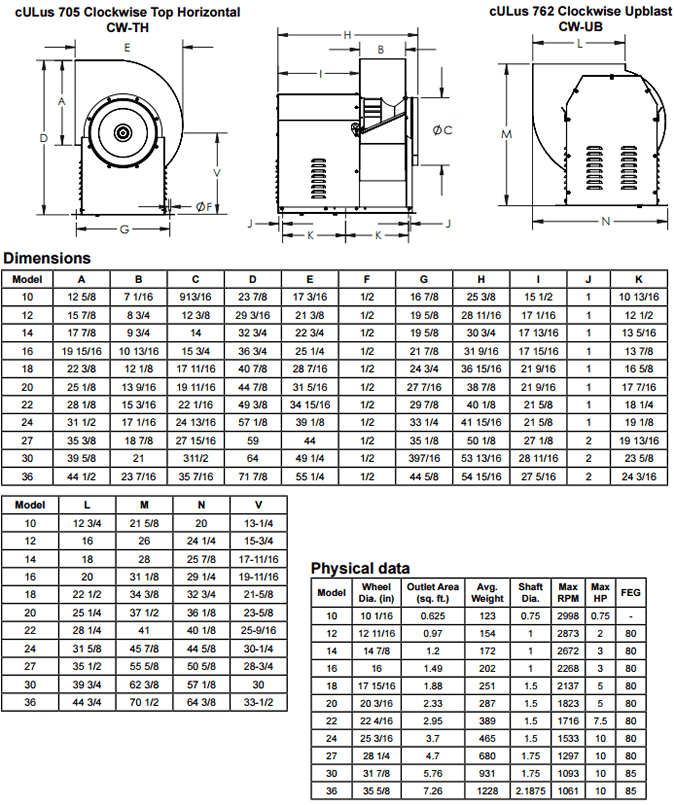

S&P CM Dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   How much does the S&P CM Belt Driven Vent Blower weigh in pounds? What are the physical dimensions or size of the S&P CM Belt Driven Vent Blower?
A:   They vary in weight and dimension by their size...less motor they range from 70-960 pounds. We have the spec sheet on the page under the links tab for side by side comparisons.

       Asked on 2013-07-17 by Greg
