Fantech 2VLD Series Direct Drive Medium Duty Propeller Fans

Fantech 2VLD Series Direct Drive Medium Duty Propeller Fans

Fantech 2VLD medium duty exhaust fans are designed for general ventilation in dusty, dirty
and grease or moisture-laden environments.

  • Wire guards and venturi panels have baked-on gray polyester finish to help resist corrosion
  • Totally enclosed, sleeve bearing
  • Speed-controllable
  • Shipped ready to install
  • AMCA and cULus certified
model description usually ships price QTY
2VLD1221 Fantech 2VLD series direct drive medium duty prop fan. 12". 1/30 Hp, 120 VAC, 1 Ph, TEFC Motor. 845 CFM nominal. 4-5 Days $152.00
2VLD1661 Fantech 2VLD series direct drive medium duty prop fan. 16". 1/20 Hp, 120 VAC, 1 Ph, TEFC Motor. 1170 CFM nominal. 4-5 Days $206.30
2VLD18B1 Fantech 2VLD series direct drive medium duty prop fan. 18". 1/4 Hp, 120 VAC, 1 Ph, TEFC Motor. 2500 CFM nominal. 4-5 Days $325.70
2VLD20B1 Fantech 2VLD series direct drive medium duty prop fan. 20". 1/4 Hp, 120 VAC, 1 Ph, TEFC Motor. 3440 CFM nominal. 4-5 Days $365.50
2VLD24B1 Fantech 2VLD series direct drive medium duty prop fan. 24". 1/4 Hp, 120 VAC, 1 Ph, TEFC Motor. 3455 CFM nominal. 4-5 Days $445.10
1ACC24WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 24. 4-5 Days $221.40
1ACC12WD Fantech single panel exhaust shutter. For fan size 12. 4-5 Days $61.50
1ACC16WD Fantech single panel exhaust shutter. For fan size 16. 4-5 Days $63.00
1ACC18WD Fantech single panel exhaust shutter. For fan size 18. 4-5 Days $64.40
1ACC20WD Fantech single panel exhaust shutter. For fan size 20. 4-5 Days $67.30
1ACC24WD Fantech single panel exhaust shutter. For fan size 24. 4-5 Days $81.80
5ACC01MS Fantech motor disconnect. 2 Pole. 4-5 Days $126.60
FAT 10 Fantech attic thermostat. 80-130 Deg. F., 115 VAC, 10 amp. Fantech part #411233 1 Day. In-stock $53.20
FH 20 Fantech Humidistat, wall mount, 12 - 115VAC, 7.5 amp, normally-open contacts, 20-80% adjustable. Contacts close on rise in humidity. [J10-810] Long Backorder $33.50
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

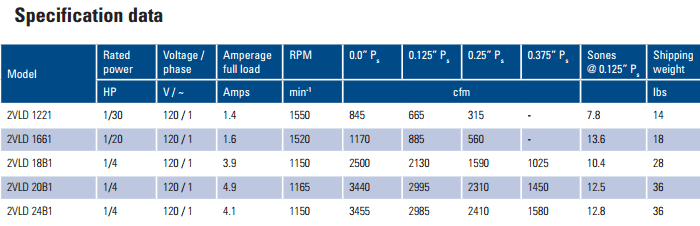

fantech 2VLD series performance

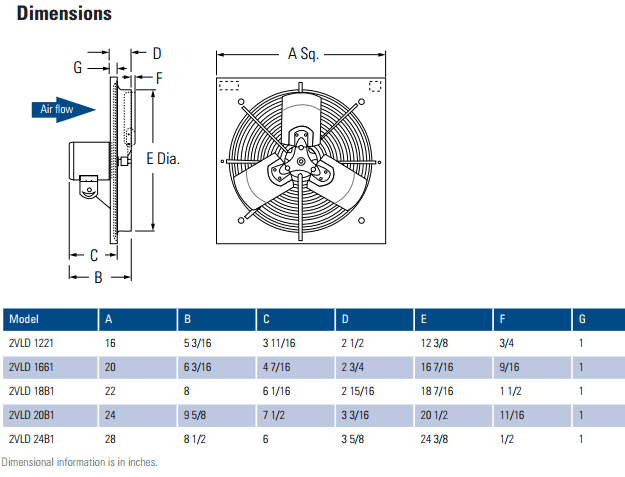

fantech 2VLD series sizing
