S&P SDBD Downblast Direct Drive Roof Exhausters

Series SDBD downblast direct drive centrifugal roof exhausters are used to exhaust air from all types of commercial and institutional buildings such as hospitals and health care facilities, schools, recreational buildings, machinery and equipment rooms, offices, retail stores and similar applications.

Pricing includes assembled fan, motor prewired, UL-705 listing label, disconnect switch (not mounted or wired), birdscreen. Standard motors are open drip-proof either 115/1/60 or 230/1/60.

• Exhaust air up to 4,980 CFM in high static pressure applications up to 1-3/4 in w.g.
• Attractive spun aluminum exterior
• Direct drive units have low sound levels and quiet operation
• AMCA Air and Sound Licensed
• cULus 705 Listed

Accessories are listed below the fans at the bottom of the page.

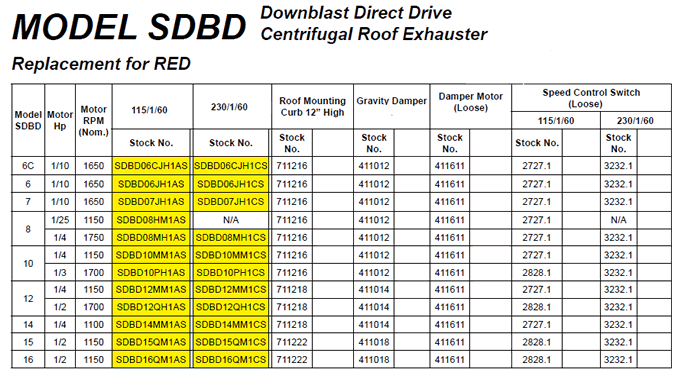

model description usually ships price QTY
SDBD06CJH1AS S&P SDBD06 centrifugal roof exhauster. 1/10 Hp, 115/1/60 motor. 1650 RPM. 2-3 Days $427.00
SDBD06CJH1CS S&P SDBD06 centrifugal roof exhauster. 1/10 Hp, 230/1/60 motor. 1650 RPM. 7-8 Weeks $427.00
SDBD06JH1AS S&P SDBD06 centrifugal roof exhauster. 1/10 Hp, 115/1/60 motor. 1650 RPM. 2-3 Days $427.00
SDBD06JH1CS S&P SDBD06 centrifugal roof exhauster. 1/10 Hp, 230/1/60 motor. 1650 RPM. 7-8 Weeks $427.00
SDBD07JH1AS S&P SDBD07 centrifugal roof exhauster. 1/10 Hp, 115/1/60 motor. 1650 RPM. 2-3 Days $451.20
SDBD07JH1CS S&P SDBD07 centrifugal roof exhauster. 1/10 Hp, 230/1/60 motor. 1650 RPM. 7-8 Weeks $451.20
SDBD08HM1AS S&P SDBD08 centrifugal roof exhauster. 1/25 Hp, 115/1/60 motor. 1150 RPM. 2-3 Days $497.10
SDBD08MH1AS S&P SDBD08 centrifugal roof exhauster. 1/4 Hp, 115/1/60 motor. 1750 RPM. 2-3 Days $576.60
SDBD08MH1CS S&P SDBD08 centrifugal roof exhauster. 1/4 Hp, 230/1/60 motor. 1750 RPM. 7-8 Weeks $576.60
SDBD10MM1AS S&P SDBD10 centrifugal roof exhauster. 1/4 Hp, 115/1/60 motor. 1150 RPM. 2-3 Days $609.40
SDBD10MM1CS S&P SDBD10 centrifugal roof exhauster. 1/4 Hp, 230/1/60 motor. 1150 RPM. 7-8 Weeks $609.40
SDBD10PH1AS S&P SDBD10 centrifugal roof exhauster. 1/3 Hp, 115/1/60 motor. 1700 RPM. 2-3 Days $649.90
SDBD10PH1CS S&P SDBD10 centrifugal roof exhauster. 1/3 Hp, 230/1/60 motor. 1700 RPM. 7-8 Weeks $649.90
SDBD12MM1AS S&P SDBD12 centrifugal roof exhauster. 1/4 Hp, 115/1/60 motor. 1150 RPM. 6-7 Days $754.30
SDBD12MM1CS S&P SDBD12 centrifugal roof exhauster. 1/4 Hp, 230/1/60 motor. 1150 RPM. 7-8 Weeks $754.30
SDBD12QH1AS S&P SDBD12 centrifugal roof exhauster. 1/2 Hp, 115/1/60 motor. 1700 RPM. 6-7 Days $831.40
SDBD12QH1CS S&P SDBD12 centrifugal roof exhauster. 1/2 Hp, 230/1/60 motor. 1700 RPM. 7-8 Weeks $831.40
SDBD14MM1AS S&P SDBD14 centrifugal roof exhauster. 1/4 Hp, 115/1/60 motor. 1100 RPM. 6-7 Days $757.40
SDBD14MM1CS S&P SDBD14 centrifugal roof exhauster. 1/4 Hp, 230/1/60 motor. 1100 RPM. 7-8 Weeks $757.40
SDBD15QM1AS S&P SDBD15 centrifugal roof exhauster. 1/2 Hp, 115/1/60 motor. 1150 RPM. 6-7 Days $939.70
SDBD15QM1CS S&P SDBD15 centrifugal roof exhauster. 1/2 Hp, 230/1/60 motor. 1150 RPM. 7-8 Weeks $939.70
SDBD16QM1AS S&P SDBD16 centrifugal roof exhauster. 1/2 Hp, 115/1/60 motor. 1150 RPM. 6-7 Days $979.50
SDBD16QM1CS S&P SDBD16 centrifugal roof exhauster. 1/2 Hp, 230/1/60 motor. 1150 RPM. 7-8 Weeks $979.50
711216 S&P 12 inch high roof mounting curb. 16-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $256.40
711218 S&P 12 inch high roof mounting curb. 18-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $297.70
711222 S&P 12 inch high roof mounting curb. 22-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $315.60
411012 S&P 12" X 12" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $41.30
411014 S&P 14" X 14" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $54.50
411018 S&P 18" X 18" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $60.80
411611 S&P damper motor option. Ships loose. 115/230 VAC 60 Hz power open, spring return motor. 2-3 Days $219.70
2727.1 S&P speed controller. 5 Amp, up to 1/3 hp, 120V. 2-3 Days $63.90
2828.1 S&P HD speed controller. 10 Amp, up to 1/2 HP, 120V. 2-3 Days $142.60
3232.1 S&P speed controller. 6 Amp, up to 1/3 HP, 230V. 2-3 Days $128.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

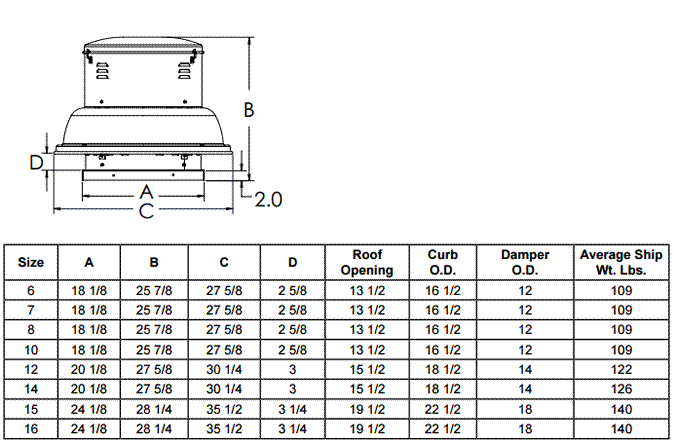

S&P SDBD Dimensions

S&P SDBD Specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Hello are the SDBD fans variable speed can we install a speed reducer if needing to reduce CFM?
A:   Yes, you can use a speed controller to reduce the speed (normally around a max of 50% reduction). The speed controllers are listed at the bottom of the page.

       Asked on 2020-05-31 by Mario
#2 Q:   Can you please tell me the base size for mounting.
A:   Depends on which model you are looking at. There are full dimensions on the Specs tab as well as in the catalog (page 6): https://www.hvacquick.com/catalog_files/solerpalau_SDBD_Catalog.pdf

       Asked on 2019-07-10 by Michael
