Fantech 1SDE Series Standard Duty Exhaust Wall Fans

Fantech 1SDE Series Standard Duty Exhaust Wall Fans

Fantech 1SDE standard duty belt drive exhaust wall fans are designed to move large volumes of air quickly at relatively low static pressures. They are ideal for light to medium duty applications such as warehouses, factories, parking garages, greenhouses, barns, mechanical rooms, gymnasiums, laundries and boiler rooms.

  • Vertical/horizontal mounting options
  • Adjustable motor mount and variable motor sheave permits easy RPM/CFM adjustment
  • Rolled venturi for maximum air performance
  • Final assembly is on-site (motor and drive pack shipped loose)
  • See the motor
model description usually ships price QTY
1SDE24BB Fantech 1SDE series standard duty exhaust fan. 24". 1/4 HP, 5,120 CFM, 115/208-230V, 1PH. 4-5 Days $647.70
1SDE24CB Fantech 1SDE series standard duty exhaust fan. 24". 1/3 HP, 5,595 CFM, 115/208-230V, 1PH. 4-5 Days $654.90
1SDE24DX Fantech 1SDE series standard duty exhaust fan. 24". 1/2 HP, 6,580 CFM, 208-230/460V, 3PH. 4-5 Days $694.70
1SDE24EB Fantech 1SDE series standard duty exhaust fan. 24". 3/4 HP, 7,445 CFM, 115/208-230V, 1PH. 4-5 Days $716.40
1SDE24EX Fantech 1SDE series standard duty exhaust fan. 24". 3/4 HP, 7,445 CFM, 208-230/460V, 3PH. 4-5 Days $699.10
1SDE30BB Fantech 1SDE series standard duty exhaust fan. 30". 1/4 HP, 6,895 CFM, 115/208-230V, 1PH. 4-5 Days $672.30
1SDE30DB Fantech 1SDE series standard duty exhaust fan. 30". 1/2 HP, 8,585 CFM, 115/208-230V, 1PH. 4-5 Days $723.00
1SDE30DX Fantech 1SDE series standard duty exhaust fan. 30". 1/2 HP, 8,585 CFM, 208-230/460V, 3PH. 4-5 Days $673.00
1SDE30EB Fantech 1SDE series standard duty exhaust fan. 30". 3/4 HP, 9,830 CFM, 115/208-230V, 1PH. 4-5 Days $738.20
1SDE30EX Fantech 1SDE series standard duty exhaust fan. 30". 3/4 HP, 9,830 CFM, 208-230/460V, 3PH. 4-5 Days $686.80
1SDE30FB Fantech 1SDE series standard duty exhaust fan. 30". 1 HP, 10,565 CFM, 115/208-230V, 1PH. 4-5 Days $803.30
1SDE30FX Fantech 1SDE series standard duty exhaust fan. 30". 1 HP, 10,565 CFM, 208-230/460V, 3PH. 4-5 Days $686.80
1SDE36CB Fantech 1SDE series standard duty exhaust fan. 36". 1/3 HP, 10,160 CFM, 115/208-230V, 1PH. 4-5 Days $831.50
1SDE36DB Fantech 1SDE series standard duty exhaust fan. 36". 1/2 HP, 11,875 CFM, 115/208-230V, 1PH. 4-5 Days $769.30
1SDE36DX Fantech 1SDE series standard duty exhaust fan. 36". 1/2 HP, 11,875 CFM, 208-230/460V, 3PH. 4-5 Days $712.80
1SDE36EB Fantech 1SDE series standard duty exhaust fan. 36". 3/4 HP, 13,220 CFM, 115/208-230V, 1PH. 4-5 Days $778.00
1SDE36EX Fantech 1SDE series standard duty exhaust fan. 36". 3/4 HP, 13,220 CFM, 208-230/460V, 3PH. 4-5 Days $727.30
1SDE36FB Fantech 1SDE series standard duty exhaust fan. 36". 1 HP, 14,815 CFM, 115/208-230V, 1PH. 4-5 Days $788.10
1SDE36FX Fantech 1SDE series standard duty exhaust fan. 36". 1 HP, 14,815 CFM, 208-230/460V, 3PH. 4-5 Days $730.20
1SDE36GB Fantech 1SDE series standard duty exhaust fan. 36". 1 1/2 HP, 16,160 CFM, 115/208-230V, 1PH. 4-5 Days $860.50
1SDE36GX Fantech 1SDE series standard duty exhaust fan. 36". 1 1/2 HP, 16,160 CFM, 208-230/460V, 3PH. 4-5 Days $734.50
1SDE42DB Fantech 1SDE series standard duty exhaust fan. 42". 1/2 HP, 14,515 CFM, 115/208-230V, 1PH. 4-5 Days $795.30
1SDE42DX Fantech 1SDE series standard duty exhaust fan. 42". 1/2 HP, 14,515 CFM, 208-230/460V, 3PH. 4-5 Days $867.70
1SDE42EB Fantech 1SDE series standard duty exhaust fan. 42". 3/4 HP, 16,425 CFM, 115/208-230V, 1PH. 4-5 Days $882.20
1SDE42EX Fantech 1SDE series standard duty exhaust fan. 42". 3/4 HP, 16,425 CFM, 208-230/460V, 3PH. 4-5 Days $874.90
1SDE42FB Fantech 1SDE series standard duty exhaust fan. 42". 1 HP, 17,570 CFM, 115/208-230V, 1PH. 4-5 Days $925.60
1SDE42FX Fantech 1SDE series standard duty exhaust fan. 42". 1 HP, 17,570 CFM, 208-230/460V, 3PH. 4-5 Days $859.00
1SDE42GB Fantech 1SDE series standard duty exhaust fan. 42". 1 1/2 HP, 20,435 CFM, 115/208-230V, 1PH. 4-5 Days $982.00
1SDE42GX Fantech 1SDE series standard duty exhaust fan. 42". 1 1/2 HP, 20,435 CFM, 208-230/460V, 3PH. 4-5 Days $893.80
1SDE48DB Fantech 1SDE series standard duty exhaust fan. 48". 1/2 HP, 17,060 CFM, 115/208-230V, 1PH. 4-5 Days $806.90
1SDE48DX Fantech 1SDE series standard duty exhaust fan. 48". 1/2 HP, 17,060 CFM, 208-230/460V, 3PH. 4-5 Days $897.40
1SDE48EB Fantech 1SDE series standard duty exhaust fan. 48". 3/4 HP, 20,040 CFM, 115/208-230V, 1PH. 4-5 Days $872.00
1SDE48EX Fantech 1SDE series standard duty exhaust fan. 48". 3/4 HP, 20,040 CFM, 208-230/460V, 3PH. 4-5 Days $893.80
1SDE48FB Fantech 1SDE series standard duty exhaust fan. 48". 1 HP, 21,665 CFM, 115/208-230V, 1PH. 4-5 Days $943.00
1SDE48FX Fantech 1SDE series standard duty exhaust fan. 48". 1 HP, 21,665 CFM, 208-230/460V, 3PH. 4-5 Days $889.40
1SDE48GB Fantech 1SDE series standard duty exhaust fan. 48". 1 1/2 HP, 24,375 CFM, 115/208-230V, 1PH. 4-5 Days $1003.80
1SDE48GX Fantech 1SDE series standard duty exhaust fan. 48". 1 1/2 HP, 24,375 CFM, 208-230/460V, 3PH. 4-5 Days $889.40
1SDE48HX Fantech 1SDE series standard duty exhaust fan. 48". 2 HP, 25,455 CFM, 208-230/460V, 3PH. 4-5 Days $1145.60
1ACC24WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 24. 4-5 Days $221.40
1ACC30WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 30. 4-5 Days $278.60
1ACC36WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 36. 4-5 Days $324.90
1ACC42WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 42. 4-5 Days $364.00
1ACC48WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 48. 4-5 Days $484.10
1ACC24WD Fantech single panel exhaust shutter. For fan size 24. 4-5 Days $81.80
1ACC30WD Fantech single panel exhaust shutter. For fan size 30. 4-5 Days $93.40
1ACC36WD Fantech single panel exhaust shutter. For fan size 36. 4-5 Days $115.10
1ACC42WD Fantech double panel exhaust shutter. For fan size 42. 4-5 Days $136.80
1ACC48WD Fantech double panel exhaust shutter. For fan size 48. 4-5 Days $204.80
1ACC24MD Fantech motorized damper. For fan size 24. 4-5 Days $298.20
1ACC30MD Fantech motorized damper. For fan size 30. 4-5 Days $510.20
1ACC36MD Fantech motorized damper. For fan size 36. 4-5 Days $580.40
1ACC42MD Fantech motorized damper. For fan size 42. 4-5 Days $670.10
1ACC48MD Fantech motorized damper. For fan size 48. 4-5 Days $726.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

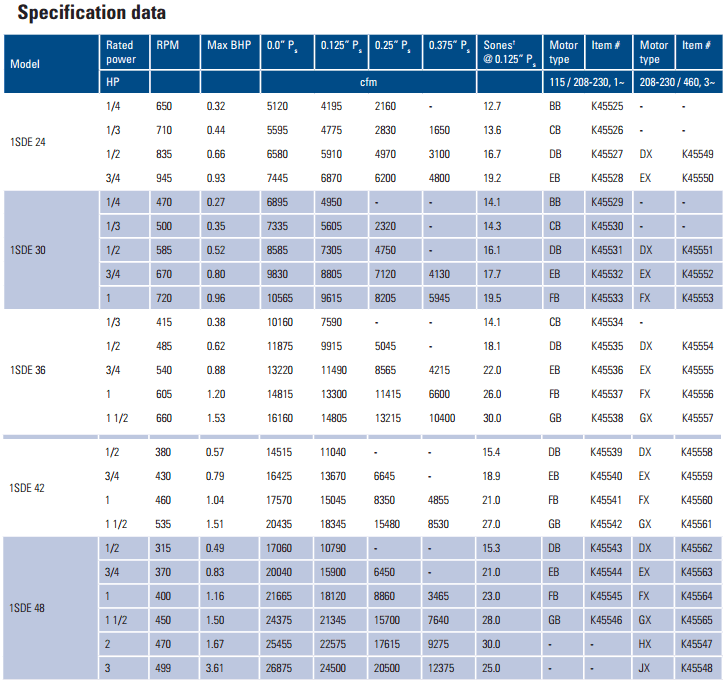

fantech 1SDE series performance

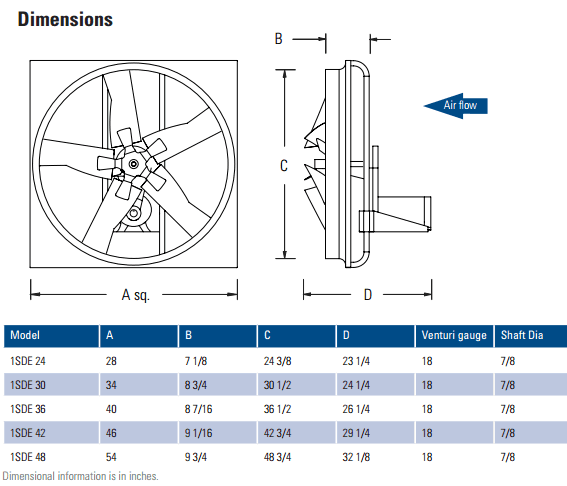

fantech 1SDE series sizing
