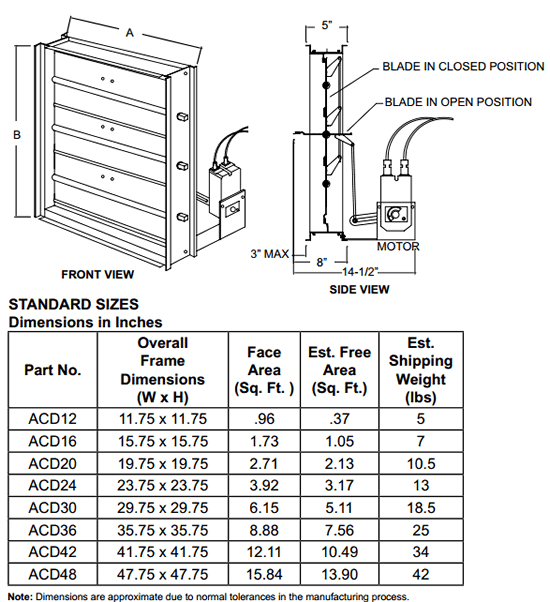

S&P Series ACD Extruded Aluminum Motorized Dampers

The Model ACD is an Extruded Aluminum motorized volume control damper. The hat channel frame is 5" wide with 7" wide center-pivoted blades for a full 90 deg rotation with parallel blade action. The dampers can be used for exhaust or supply applications and can be mounted in a vertical or horizontal position; typically walls, curbs, or ductwork. Extruded Aluminum (ACD) series comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with an end switch.

FEATURES:
• 5" x 1" x .100 thick Extruded Aluminum Hat Channel frame.
• 7" wide x .080 thick extruded aluminum blades. Parallel Blade Action.
• 3,500 fpm Maximum Velocity.
• 4" wg Maximum Pressure.
• 122 Degree Maximum Temperature.

model description usually ships price QTY
ACD12 S&P 12" X 12" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $715.30
ACD16 S&P 16" X 16" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $871.90
ACD20 S&P 20" X 20" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $929.60
ACD24 S&P 24" X 24" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1001.30
ACD30 S&P 30" X 30" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1367.50
ACD36 S&P 36" X 36" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1553.00
ACD42 S&P 42" X 42" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1580.30
ACD48 S&P 48" X 48" series ACD HD alum hat channel damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1980.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P ACD Motorized Dampers
