S&P Series EAS-RF Rear Flanged Shutter For Corrosion Prone Installations

S&P Series EAS-RF Rear Flanged Shutter For Corrosion Prone Installations

The Model EAS is a rear flanged exhaust shutter for areas where corrosion may be a problem. The frame and blades are mill finish aluminum. The blades have a galvanized reinforcement strip across the top of each blade for added strength and counter balancing efficiency. The blades have a felt seal on the leading edge for quiet closing and better protection from the weather. Ideal for use with direct-drive or belt-driven exhaust fans. Recommended for vertical mount exhaust applications only.

FEATURES:
• .062 mill finish 6063T5 or T6 extruded aluminum.
• Welded and/or staked corners provide rigidity and durability.
• Easy to motorize (optional motor pack model EAS).
• 26 gauge 3105 mill finish aluminum blades.
• 304 stainless steel pivot pins, rivets and bushings.
• Maximum recommended velocity is 2,500 FPM

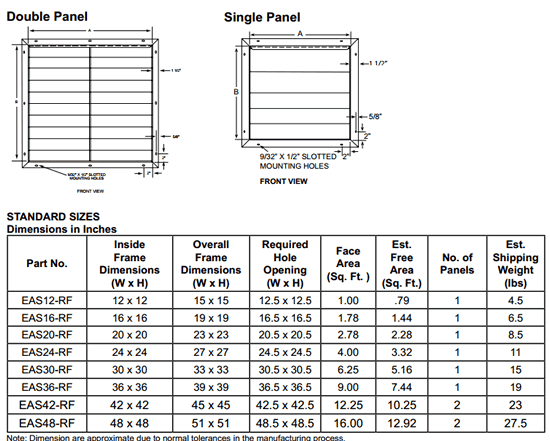

model description usually ships price QTY
EAS12-RF S&P 12" X 12" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $85.30
EAS16-RF S&P 16" X 16" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $110.50
EAS20-RF S&P 20" X 20" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $127.90
EAS24-RF S&P 24" X 24" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $157.10
EAS30-RF S&P 30" X 30" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $181.60
EAS36-RF S&P 36" X 36" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $243.90
EAS42-RF S&P 42" X 42" series EAS-RF alum wall shutter with rear flange. Max velocity of 2500 FPM. 2 panels. 5-6 Weeks $356.80
EAS1232MTR S&P damper motor option for 1 panel shutters. 115/230 VAC 60 Hz power open, spring return motor. Ships loose. 5-6 Weeks $224.20
EAS3850MTR S&P damper motor option. 115/230 VAC 60 Hz power open, spring return motor. For 42x42 and 48x48 shutters. Ships loose. 5-6 Weeks $295.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P EAS-RF Shutters

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

S&P Series 502 Rear Flanged Low Velocity Gravity Shutters

Fear flanged low velocity gravity exhaust shutter. Galvanized steel frame with aluminum blades. Vertical mount exhaust only. 2,000 fpm max.

S&P Series 556 Rear Flanged General Purpose Shutters

Rear flanged general purpose exhaust shutter. Galvanized steel frame with aluminum blades. Vertical mount exhaust only. 2,500 fpm max.

S&P Series EAS-HDGS Rear Flanged Shutter For Higher Velocity Applications

Rear flanged exhaust shutter. The frame and blades are extruded aluminum. Vertical mount exhaust only. 3,250 fpm max.

S&P Series FGS Rear Flanged FIBREGLASS Shutter

Rear flanged exhaust shutter for areas where corrosion is a problem. Heavy duty fiberglass pultrusion with stainless steel tie rods. 2,500 fpm max.
