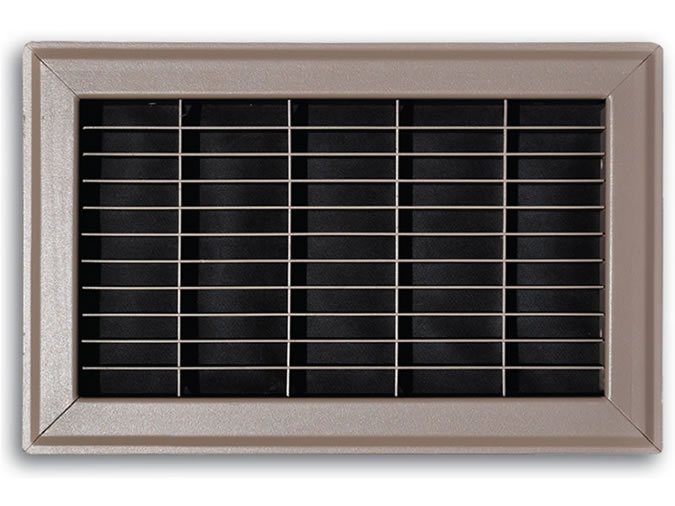

TRUaire 154R Series Heavy Duty Floor Return Air Grilles
154R Features :
- Heavy guage steel construction
- 75% average Free Area
- Brown powder coated finish
- Recessed flange undercut 1/2" to fit into opening

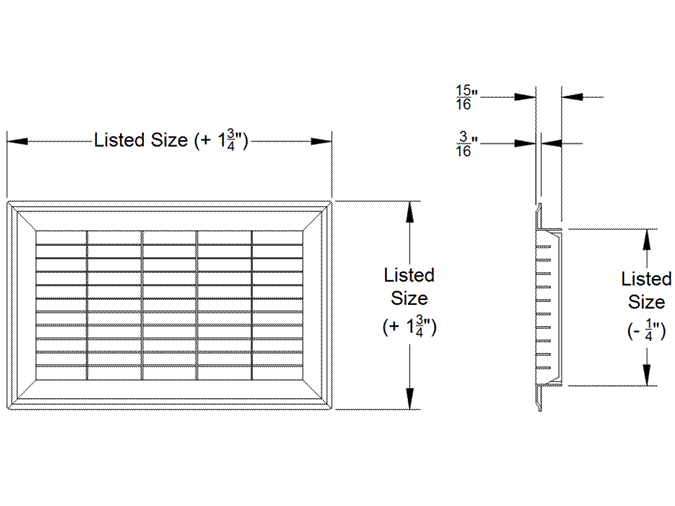

Sizes listed below are LIST SIZES -- opening size. A 12x12" LIST SIZE grille will cover a 12x12" floor opening. The actual outer size of the grille frame is larger.
 |
Do you have questions about the products on this page? Click on the ? image on the left or this link to ask us your questions! |
| #1 | Q: what is the weight rating for a 154r 14x24 grille? A: They are rated at 200 pounds per the manufacturer. Asked on 2018-10-21 by Jon |
|---|---|
| #2 | Q: is the frame on the 18x24 a solid frame? Or are there seams on the corners? A: They have mitered corners, so yes there are seams. Asked on 2018-03-25 by Kate |
| #3 | Q: The 36x24 what is the weight limit A: 200 pounds per the manufacturer. Asked on 2018-01-23 by K. |
| #4 | Q: My opening is about 11.75 x 29.75, would the 12 x 30 fit? What are the exact dimensions of the part that inserts into the duct? A: The grille is undercut by 3/8 (in both dimensions) so it will fit into your duct opening. Asked on 2018-01-16 by Jason |
| #5 | Q: do you sell a 5 x 12 list size ? A: No, sorry. Only the listed sizes. Asked on 2017-09-15 by John |
| #6 | Q: How tall/deep are these registers? My ledge or lip that the register will sit on is about 1 inch deep down from the floor itself and is all the way around the inside perimeter of the opening. A: The depth of the actual grille itself is just under 1 inch...Further, there is a 1 inch perimeter all the way around beyond the actual size ordered to cover the edge of the hole. Asked on 2013-09-24 by Celeste |
| #7 | Q: Will the powder coat on the 157 mb and the powder coat on the 154r match colors? A: They are close, but the MB is a touch lighter. Asked on 2013-05-21 by Rick Adamson |
| #8 | Q: Hello - we have a central heating system... we need a new grille for the floor opening where the warm air is blown into the house. The opening is 24 3/8 x 36 3/8. Can you confirm if the 24 x 36 154R series will have enough overlap to work in this hole and is sturdy enough that it can be walked on? A: That would be a fine size, there is an inch perimeter all around for support and these are built for floor duty so walking on them is no problem. Asked on 2013-04-13 by Rachael |
