Lima 1520 Series Step Down 3 Cone T-Bar Diffusers

Lima 1520 Series step-down ceiling diffusers.

  • Provides high air volume delivery in a four-way air diffusion pattern.
  • Three-cone design, fixed core, optional damper control access (damper ordered separately)
  • Collar sizes available: 6", 8", 10", 12", 14".
  • Use with AL10PF plaster frame for surface-mount applications
  • Steel or aluminum construction. Formed steel back panel.
  • Bright White finish standard.
model description usually ships price QTY
1520-06 Lima 1520 Series step-down T-bar ceiling diffuser. White. 6 inch connection. [445466] 1 Day. In-stock $67.60
1520-08 Lima 1520 Series step-down T-bar ceiling diffuser. White. 8 inch connection. [445467] 1 Day. In-stock $67.60
1520-10 Lima 1520 Series step-down T-bar ceiling diffuser. White. 10 inch connection. [445468] 1 Day. In-stock $67.60
1520-12 Lima 1520 Series step-down T-bar ceiling diffuser. White. 12 inch connection. [445469] 1 Day. In-stock $67.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

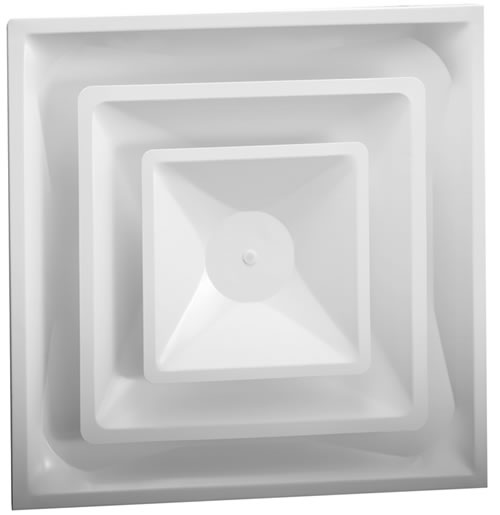

Lima 1520 Series Diffuser

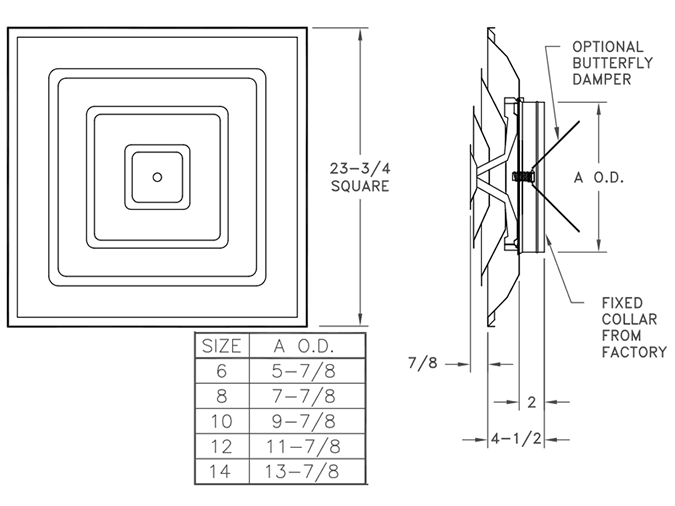

Lima 1520 Series Diffuser Dimensions
