Setra MRG Multi-Range General Differential Pressure Transmitter

The Setra MRG is the ideal product for any contractor to stock in their truck; combining the flexibility of a multi- range with the performance of a single- range transducer to ensure that you have the right solution for any job. The MRG has 8 selectable ranges and 3 selectable outputs, giving the installer the flexibility needed to make urgent adjustments on the job with the flip of a switch or jumper.

Features:

  • Field Configurable Duct Probe
  • 4 Digit LCD
  • Field Selectable Multi-Range
  • Field Selectable Multi-Output
  • Simple 5-Step Setup
  • Field Accessible Push Button Zero & Span
  • External Mounting Tabs & DINrail
  • Unregulated AC/DC Operating
Select From Available Models:

Configuration Options: Standard Base Mount Configuration [S]
Optional Universal Configuration [U]
Optional DIN Rail Configuration [D]
Optional Duct Probe Configuration [P]
Electrical Fitting Options: 1/2 inch Conduit Electrical Fitting [A]
PG9 Electrical Fitting [P]
1/2 inch Conduit Electrical Fitting with Calibration Certification [C]
PG9 Conduit Electrical Fitting with Calibration Certification [D]
Usually Ships: Limited quantities ship in 1-3 days. Please call us if you need a rush order.


Model Number:
MRGSA

Product Price (each): $ 218.23 Quantity:

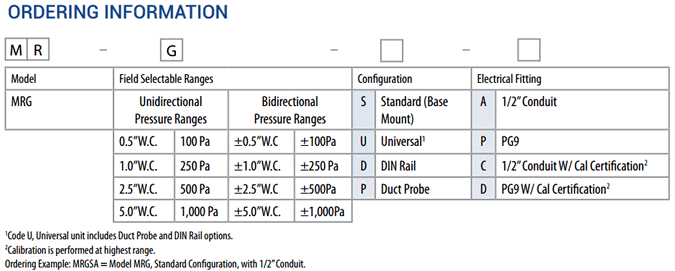

setra MRG pressure sensor ordering

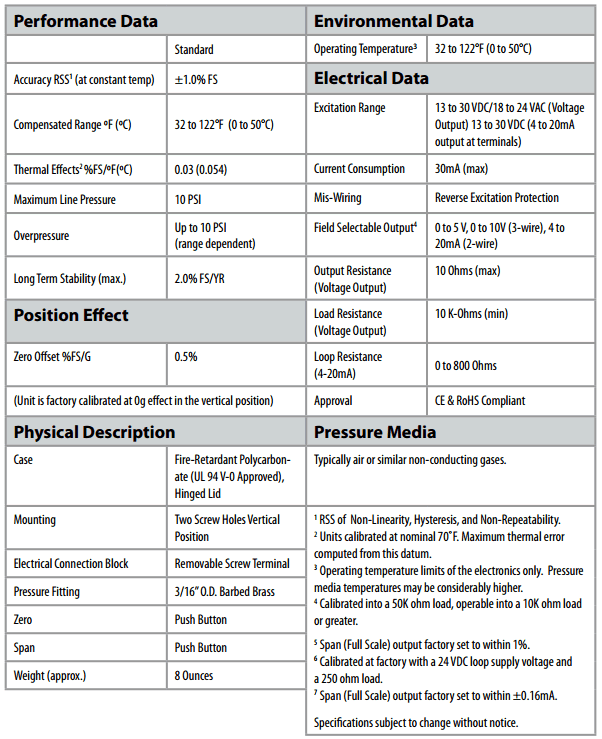

setra MRG pressure sensor specifications
