S&P SQD Direct Drive Square Inline Centrifugal Duct Fans

S&P SQD Direct Drive Square Inline Centrifugal Duct Fans

Model SQD square inline duct mounted fans are available in sizes 6 through 15, moving up to 2,800 CFM, with static pressure capabilities to 1". SQD units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors and side discharge capability can be mounted in any orientation. AMCA licensed performance and UL listing assure that you have made a reliable selection.

Pricing includes assembled fan, motor prewired, UL-705 listing label, disconnect switch (not mounted or wired), integral duct connectors, access doors. Standard motors are totally enclosed either 115/1/60 or 230/1/60.

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
SQD601AS S&P SQD6 square inline direct drive duct fan. 100 watts, 115/1/60 motor. 2700 RPM. 2-3 Days $592.10
SQD8251AS S&P SQD8 square inline direct drive duct fan. 1/4 Hp, 115/1/60 motor. 1740 RPM. 2-3 Days $963.20
SQD8251CS S&P SQD8 square inline direct drive duct fan. 1/4 Hp, 230/1/60 motor. 1740 RPM. 2-3 Days $948.90
SQD10251AS S&P SQD10 square inline direct drive duct fan. 1/4 Hp, 115/1/60 motor. 1150 RPM. 2-3 Days $1035.80
SQD10251CS S&P SQD10 square inline direct drive duct fan. 1/4 Hp, 230/1/60 motor. 1150 RPM. 7-8 Weeks $1020.00
SQD10501AS S&P SQD10 square inline direct drive duct fan. 1/2 Hp, 115/1/60 motor. 1710 RPM. 2-3 Days $1035.00
SQD10501CS S&P SQD10 square inline direct drive duct fan. 1/2 Hp, 230/1/60 motor. 1710 RPM. 7-8 Weeks $1019.20
SQD12251AS S&P SQD12 square inline direct drive duct fan. 1/4 Hp, 115/1/60 motor. 1120 RPM. 2-3 Days $1233.20
SQD12251CS S&P SQD12 square inline direct drive duct fan. 1/4 Hp, 230/1/60 motor. 1120 RPM. 7-8 Weeks $1211.10
SQD12501AS S&P SQD12 square inline direct drive duct fan. 1/2 Hp, 115/1/60 motor. 1620 RPM. 2-3 Days $1257.60
SQD12501CS S&P SQD12 square inline direct drive duct fan. 1/2 Hp, 230/1/60 motor. 1620 RPM. 7-8 Weeks $1234.70
SQD15501AS S&P SQD15 square inline direct drive duct fan. 1/2 Hp, 115/1/60 motor. 1060 RPM. 2-3 Days $1426.60
SQD15501CS S&P SQD15 square inline direct drive duct fan. 1/2 Hp, 230/1/60 motor. 1060 RPM. 7-8 Weeks $1402.90
411009 S&P 9" X 9" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $45.00
411012 S&P 12" X 12" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $45.80
411014 S&P 14" X 14" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $60.80
411016 S&P 16" X 16" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $61.60
411020 S&P 20" X 20" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $83.70
411611 S&P damper motor option. Ships loose. 115/230 VAC 60 Hz power open, spring return motor. 2-3 Days $243.20
2727.1 S&P speed controller. 5 Amp, up to 1/3 hp, 120V. 2-3 Days $71.10
2828.1 S&P HD speed controller. 10 Amp, up to 1/2 HP, 120V. 2-3 Days $157.90
3232.1 S&P speed controller. 6 Amp, up to 1/3 HP, 230V. 2-3 Days $142.10
VHRSQ06-15 S&P hanging style rubber vibration isolators. SQ 6-15. 2-3 Days $320.50
VHSSQ06-20 S&P hanging style spring vibration isolators. SQ 6-20. 2-3 Days $378.20
VFRSQ06-15 S&P floor mount rubber vibration isolators. SQ 6-15. 2-3 Days $224.20
VFSSQ06-20 S&P floor mount spring vibration isolators. SQ 6-20. 2-3 Days $664.70
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

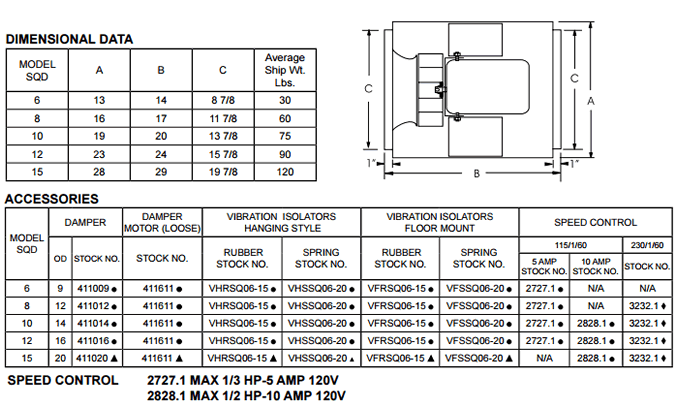

S&P SQD Dimensions

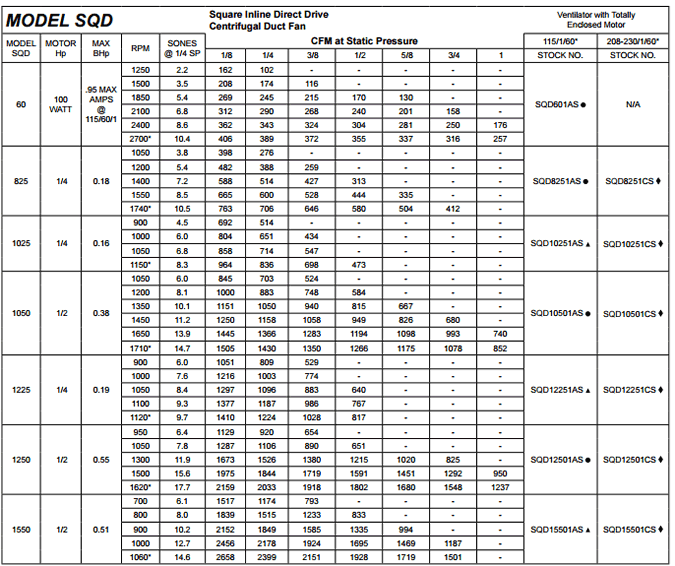

S&P SQD Specifications
