S&P STXB UL762 Upblast Centrifugal Belt Drive Roof Exhausters

S&P STXB UL762 Upblast Centrifugal Belt Drive Roof Exhausters

Isolation of motor and drive components from the air stream and the high velocity vertical air discharge make the model STXB-UL762 ideally suited for the removal of dirty, contaminated and/or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust. For grease removal applications the fan must be installed per NFPA 96 and with a 40 inch discharge height and hinged access base.

Pricing includes assembled fan, motor & drives mounted, UL-762 listing label and mounted and wired disconnect switch. Standard single phase motors 1/2 HP & smaller are 115V ONLY, 3/4 HP & larger are 115/208-230V Tri Voltage. Standard three phase motors are 208-230/460 Tri Voltage.

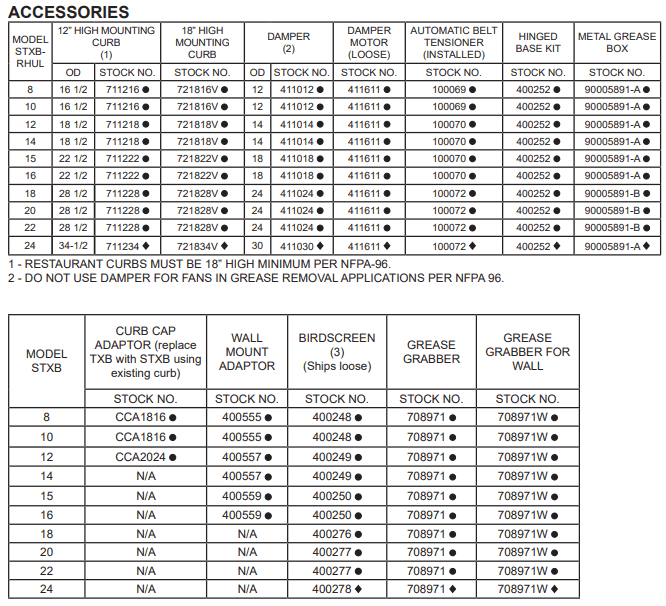

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
STXB08RHULML1S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1550 RPM. 2-3 Days $1019.20
STXB08RHULMM1S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1750 RPM. 2-3 Days $1019.20
STXB08RHULMH1S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1950 RPM. 2-3 Days $1019.20
STXB08RHULPH1S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 2100 RPM. 2-3 Days $1038.70
STXB08RHULML3S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1550 RPM. 7-8 Weeks $1138.40
STXB08RHULMM3S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1750 RPM. 7-8 Weeks $1138.40
STXB08RHULMH3S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1950 RPM. 7-8 Weeks $1138.40
STXB08RHULPH3S S&P STXB08 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 2100 RPM. 7-8 Weeks $1160.30
STXB10RHULMH1S S&P STXB10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1600 RPM. 2-3 Days $1041.80
STXB10RHULPH1S S&P STXB10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1800 RPM. 2-3 Days $1062.90
STXB10RHULMH3S S&P STXB10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1600 RPM. 7-8 Weeks $1052.70
STXB10RHULPH3S S&P STXB10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 1800 RPM. 7-8 Weeks $1105.70
STXB12RHULMH1S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1450 RPM. 2-3 Days $1044.90
STXB12RHULPH1S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1600 RPM. 2-3 Days $1068.30
STXB12RHULQH1S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1800 RPM. 2-3 Days $1116.60
STXB12RHULMH3S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1450 RPM. 7-8 Weeks $1108.80
STXB12RHULPH3S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 1600 RPM. 7-8 Weeks $1108.80
STXB12RHULQH3S S&P STXB12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 1800 RPM. 2-3 Days $1189.90
STXB14RHULMH1S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1050 RPM. 2-3 Days $1164.20
STXB14RHULPH1S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1200 RPM. 2-3 Days $1186.00
STXB14RHULQH1S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1350 RPM. 2-3 Days $1237.40
STXB14RHULRH1S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 1550 RPM. 2-3 Days $1183.60
STXB14RHULSH1S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 1700 RPM. 2-3 Days $1204.70
STXB14RHULMH3S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1050 RPM. 7-8 Weeks $1230.40
STXB14RHULPH3S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 1200 RPM. 7-8 Weeks $1230.40
STXB14RHULQH3S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 1350 RPM. 2-3 Days $1312.20
STXB14RHULRH3S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 1550 RPM. 2-3 Days $1248.30
STXB14RHULSH3S S&P STXB14 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 1700 RPM. 2-3 Days $1248.30
STXB15RHULMH1S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1000 RPM. 2-3 Days $1216.40
STXB15RHULPH1S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1100 RPM. 2-3 Days $1212.50
STXB15RHULQH1S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1250 RPM. 2-3 Days $1260.80
STXB15RHULRH1S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 1450 RPM. 2-3 Days $1419.00
STXB15RHULSH1S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 1600 RPM. 2-3 Days $1419.00
STXB15RHULMH3S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 1000 RPM. 7-8 Weeks $1276.40
STXB15RHULPH3S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 1100 RPM. 7-8 Weeks $1249.10
STXB15RHULQH3S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 1250 RPM. 2-3 Days $1287.30
STXB15RHULRH3S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 1450 RPM. 2-3 Days $1330.90
STXB15RHULSH3S S&P STXB15 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 1600 RPM. 2-3 Days $1339.50
STXB16RHULMH1S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 900 RPM. 2-3 Days $1287.30
STXB16RHULPH1S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1000 RPM. 2-3 Days $1400.30
STXB16RHULQH1S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1150 RPM. 2-3 Days $1412.70
STXB16RHULRH1S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 1300 RPM. 2-3 Days $1526.50
STXB16RHULSH1S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 1400 RPM. 2-3 Days $1575.60
STXB16RHULMH3S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 208-230/460/3/60 motor. 900 RPM. 7-8 Weeks $1351.20
STXB16RHULPH3S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 1000 RPM. 7-8 Weeks $1455.60
STXB16RHULQH3S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 1150 RPM. 2-3 Days $1471.90
STXB16RHULRH3S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 1300 RPM. 2-3 Days $1510.10
STXB16RHULSH3S S&P STXB16 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 1400 RPM. 2-3 Days $1582.60
STXB18RHULQH1S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 940 RPM. 2-3 Days $1567.80
STXB18RHULQH3S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 940 RPM. 2-3 Days $1594.30
STXB18RHULRH1S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 1075 RPM. 2-3 Days $1690.10
STXB18RHULRH3S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 1075 RPM. 2-3 Days $1639.50
STXB18RHULSH1S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 1200 RPM. 2-3 Days $1733.80
STXB18RHULSH3S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 1200 RPM. 2-3 Days $1650.40
STXB18RHULTH1S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1.5 Hp, 115/208-230V/1/60 motor. 1350 RPM. 2-3 Days $1820.30
STXB18RHULTH3S S&P STXB18 centrifugal roof exhauster. UL762 Listed (restaurants). 1.5 Hp, 208-230/460/3/60 motor. 1350 RPM. 2-3 Days $1677.70
STXB20RHULQH1S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 775 RPM. 3-4 Days $1796.90
STXB20RHULQH3S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 775 RPM. 3-4 Days $1776.60
STXB20RHULRH1S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 875 RPM. 3-4 Days $1926.20
STXB20RHULRH3S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 875 RPM. 3-4 Days $1781.30
STXB20RHULSH1S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 975 RPM. 3-4 Days $1999.50
STXB20RHULSH3S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 975 RPM. 3-4 Days $1871.70
STXB20RHULTH1S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1.5 Hp, 115/208-230V/1/60 motor. 1115 RPM. 3-4 Days $2068.80
STXB20RHULTH3S S&P STXB20 centrifugal roof exhauster. UL762 Listed (restaurants). 1.5 Hp, 208-230/460/3/60 motor. 1115 RPM. 3-4 Days $1910.60
STXB24RHULPH1S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 495 RPM. 3-4 Days $2113.20
STXB24RHULPH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 208-230/460/3/60 motor. 495 RPM. 3-4 Days $2153.80
STXB24RHULQH1S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 565 RPM. 3-4 Days $2163.90
STXB24RHULQH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 208-230/460/3/60 motor. 565 RPM. 3-4 Days $2189.60
STXB24RHULRH1S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 115/208-230V/1/60 motor. 650 RPM. 3-4 Days $2283.90
STXB24RHULRH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 3/4 Hp, 208-230/460/3/60 motor. 650 RPM. 3-4 Days $2234.00
STXB24RHULSH1S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 115/208-230V/1/60 motor. 720 RPM. 3-4 Days $2322.90
STXB24RHULSH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1 Hp, 208-230/460/3/60 motor. 720 RPM. 3-4 Days $2227.80
STXB24RHULTH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 1.5 Hp, 208-230/460/3/60 motor. 820 RPM. 3-4 Days $2269.90
STXB24RHULVH3S S&P STXB24 centrifugal roof exhauster. UL762 Listed (restaurants). 2 Hp, 208-230/460/3/60 motor. 900 RPM. 3-4 Days $2280.00
721816V S&P 18 inch high VENTED roof mounting curb. 16-1/2 inch sq. 2-3 Days $308.60
721818V S&P 18 inch high VENTED roof mounting curb. 18-1/2 inch sq. 2-3 Days $312.50
721822V S&P 18 inch high VENTED roof mounting curb. 22-1/2 inch sq. 2-3 Days $331.90
721828V S&P 18 inch high VENTED roof mounting curb. 2-3 Days $388.10
721834V S&P 18 inch high VENTED roof mounting curb. 2-3 Days $422.30
711216 S&P 12 inch high roof mounting curb. 16-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $256.40
711218 S&P 12 inch high roof mounting curb. 18-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $297.70
711222 S&P 12 inch high roof mounting curb. 22-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $315.60
711228 S&P 12 inch high roof mounting curb. Galvanized with wood nailer. 2-3 Days $417.70
711234 S&P 12 inch high roof mounting curb. Galvanized with wood nailer. 2-3 Days $471.40
411012 S&P 12" X 12" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $41.30
411014 S&P 14" X 14" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $54.50
411018 S&P 18" X 18" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $60.80
411024 S&P 24" X 24" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $96.60
411030 S&P 30" X 30" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $116.90
411611 S&P damper motor option. Ships loose. 115/230 VAC 60 Hz power open, spring return motor. 2-3 Days $219.70
400252 S&P hinged base kit. 2-3 Days $81.80
100069 S&P auto belt tensioner assembly. 2-3 Days $164.40
100070 S&P auto belt tensioner assembly. 2-3 Days $166.80
90005891-A S&P metal grease container/box. 2-3 Days $110.60
90005891-B S&P metal grease container/box. 2-3 Days $110.60
708971 S&P grease grabber. For roof mounting only. 2-3 Days $106.80
708971W S&P grease grabber. For sidewall mounting only. 2-3 Days $106.80
400248 S&P bird screen kit. STXB/STXD 6-10. 2-3 Days $46.80
400249 S&P bird screen kit. STXB/STXD 12-14. 2-3 Days $50.60
400250 S&P bird screen kit. STXB/STXD 15-16. 2-3 Days $55.30
400276 S&P bird screen kit. STXB/STXD 18. 2-3 Days $58.40
400277 S&P bird screen kit. STXB/STXD 206. 2-3 Days $81.80
CCA1816 S&P curb cap adaptor. Replace DB with SDB unit. 17-3/4 ID X 16 in OD. 2-3 Days $130.10
CCA2024 S&P curb cap adaptor. Replace DB with SDB unit. 19-3/4 ID X 24 in OD. 2-3 Days $136.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



S&P STXB Dimensions

S&P STXB Specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   can these be speed controlled?
A:   As these are belt drive, they cannot be speed adjusted. The direct drive version, STXD can be controlled.

       Asked on 2020-01-16 by kevin
#2 Q:   What is the warranty for this product?
A:   Please see page 8 of the installation manual for the full warranty info: http://www.hvacquick.com/catalog_files/solerpalau_STXB_IOM.pdf

       Asked on 2017-11-28 by KF
