S&P STXD UL705 Upblast Centrifugal Direct Drive Roof Exhausters

S&P STXD UL705 Upblast Centrifugal Direct Drive Roof Exhausters

Isolation of the motor from the air stream and the high velocity vertical (roof) or horizontal (wall) air discharge make the Model STXD ideally suited for the removal of dirty, contaminated and/ or high temperature air from processes and buildings. Typical applications include fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.  UL-705 listed - NOT for restaurant applications.

Pricing includes assembled fan, motor prewired, UL-705 listing label, disconnect switch (not mounted or wired).  Standard motors are open drip-proof either 115/1/60 or 230/1/60.

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
STXD06CJH1AS S&P STXD06 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 115/1/60 motor. 1550 RPM. 2-3 Days $639.70
STXD06CJH1CS S&P STXD06 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 230/1/60 motor. 1550 RPM. 7-8 Weeks $641.30
STXD06JH1AS S&P STXD06 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 115/1/60 motor. 1550 RPM. 2-3 Days $660.80
STXD06JH1CS S&P STXD06 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 230/1/60 motor. 1550 RPM. 7-8 Weeks $660.80
STXD07JH1AS S&P STXD07 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 115/1/60 motor. 1550 RPM. 2-3 Days $667.80
STXD07JH1CS S&P STXD07 centrifugal roof exhauster. UL705 Listed. 1/10 Hp, 230/1/60 motor. 1550 RPM. 7-8 Weeks $691.20
STXD08HM1AS S&P STXD08 centrifugal roof exhauster. UL705 Listed. 1/25 Hp, 115/1/60 motor. 1050 RPM. 2-3 Days $763.60
STXD08MH1AS S&P STXD08 centrifugal roof exhauster. UL705 Listed. 1/4 Hp, 115/1/60 motor. 1625 RPM. 2-3 Days $833.80
STXD08MH1CS S&P STXD08 centrifugal roof exhauster. UL705 Listed. 1/4 Hp, 230/1/60 motor. 1625 RPM. 7-8 Weeks $854.80
711216 S&P 12 inch high roof mounting curb. 16-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $256.40
411012 S&P 12" X 12" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $41.30
411611 S&P damper motor option. Ships loose. 115/230 VAC 60 Hz power open, spring return motor. 2-3 Days $219.70
2727.1 S&P speed controller. 5 Amp, up to 1/3 hp, 120V. 2-3 Days $63.90
3232.1 S&P speed controller. 6 Amp, up to 1/3 HP, 230V. 2-3 Days $128.60
400555 S&P wall mount adapter. STXB/STXD 6-10. 2-3 Days $67.80
400248 S&P bird screen kit. STXB/STXD 6-10. 2-3 Days $46.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

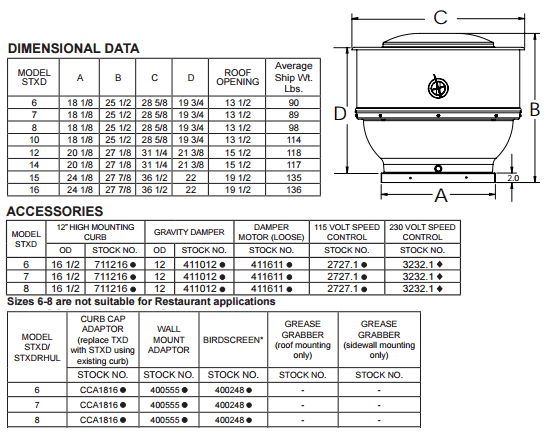

S&P STXD Dimensions

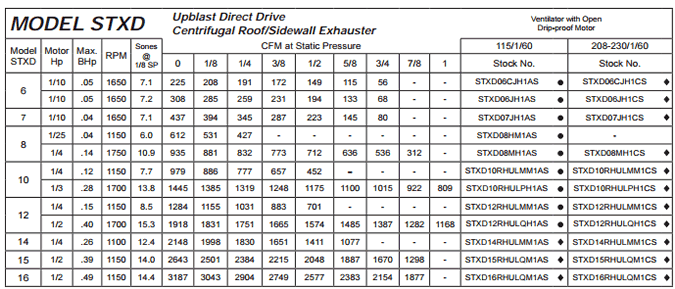

S&P STXD Specifications
