Neptronic EVC BACnet VAV Controllers
Brand Logo

Neptronic EVC BACnet VAV Controllers

The EVC VAV package consists of 2 parts, the thermostat and the EVC which is a combination of an actuator and a controller. The EVC controller is designed with many features to fit any application, and to make installation and commissioning fast and simple.

• Built-in actuator and optional air pressure sensor
• Mounts on jackshaft or damper
• Connects to room thermostat via 3 wires
• BACnet MS/TP or Modbus communication
• Field configured VAV algorithms
• Configurable Inputs: 2 analog and 2 digital
• Configurable Outputs: 2 analog and up to 4 TRIACs
• Real Time Clock (RTC) with 24 hour backup
• Configurable PI (Proportional-Integral) function
• Simple air balancing and commissioning via thermostat
• Independent, configurable proportional control band and dead band per ramp
• Anti-freeze protection

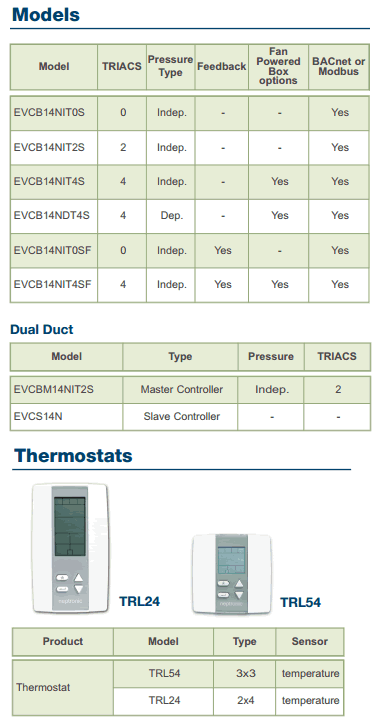

model description usually ships price QTY
TRL54 Neptronic 3x3 thermostat. Used to program and control EVC VAV controllers. 2-3 Days $53.80
TRL24 Neptronic 2x4 thermostat. Used to program and control EVC VAV controllers. 2-3 Days $63.50
EVCB14NIT0S Neptronic EVC PRESSURE INDEPENDENT VAV controller. 70 in.lb actuator. No triacs. 2-3 Days $264.70
EVCB14NIT2S Neptronic EVC PRESSURE INDEPENDENT VAV controller. 70 in.lb actuator. 2 triacs. 2-3 Days $285.20
EVCB14NIT4S Neptronic EVC PRESSURE INDEPENDENT VAV controller. 70 in.lb actuator. 4 triacs. Fan powered box options. 2-3 Days $305.80
EVCB14NDT4S Neptronic EVC PRESSURE DEPENDENT VAV controller. 70 in.lb actuator. 4 triacs. Fan powered box options. 2-3 Days $264.70
EVCB14NIT0SF Neptronic EVC PRESSURE INDEPENDENT VAV controller. 70 in.lb actuator. No triacs. With feedback. 2-3 Days $281.10
EVCB14NIT4SF Neptronic EVC PRESSURE INDEPENDENT VAV controller. 70 in.lb actuator. 4 triacs. Fan powered box options. With feedback. 2-3 Days $321.10
EVCBM14NIT2S Neptronic EVC PRESSURE INDEPENDENT Dual Duct Master VAV controller. 70 in.lb actuator. 2 triacs. 2-3 Days $321.40
EVCS14N Neptronic EVC Dual Duct SLAVE VAV controller. 2-3 Days $317.70
