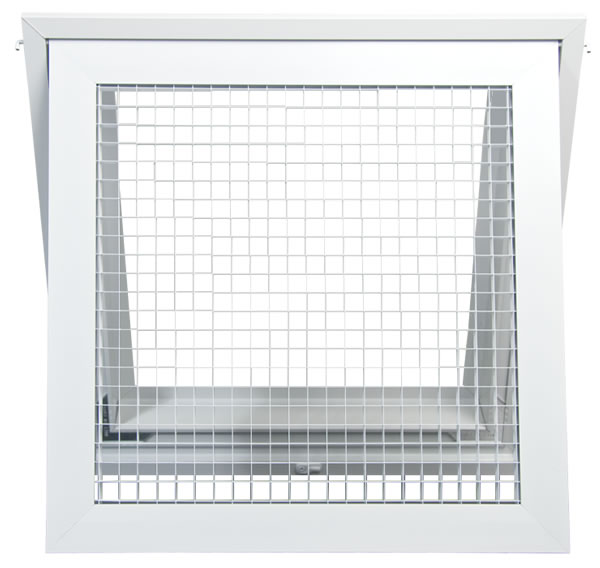

Dayus DARE5-FG Return Air Filter Grilles - CUBE CORE STYLE

The DARE5-FG is a return blade filter grille that fits a standard 1", 2" or 4" filter.

  • Designed to fit most standard filters (must be undersized 9 /32”)
  • Select 1" (DARE5-FG), 2" (DARE5-FG2), or 4" (DARE5-FG4) filter depth
  • 1/2" eggcrate core has a high free area for minimum pressure loss
  • Neat appearance often matches luminaries
  • Aluminum extruded frame with mechanically locked corners
  • A or B type hinges are recommended on top
  • Durable powdercoat painted finish (White, Silver or Mill)

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Style & Filter Depth:
LIST Width: Inches (Max of 36")
LIST Height: Inches (Max of 36")

1. Odd (7,9,11, etc.) and fractional (1/4, 1/2, and 3/4) dimensions are subject to a machine charge per dimension (included in price). This does not apply to 15" and 25" dimensions. For example: 1. 14x20 = no machine charge, 2. 17x19.5 = 2 machine charges.
2. Minimum order amount of $45 applies.
3. Please see the "cut-sheet" or drawings above for actual vs. LIST dimensions. The LIST width and height are the size of the OPENING.
A - Spring Pins
B - Wire Hinge
C - Nylon Thumb Screw
D - Nylon Screen Tabs
A - Spring Pins
B - Wire Hinge
C - Nylon Thumb Screw
D - Nylon Screen Tabs
Finish: Painted White
Painted Silver
Mill (Unpainted)**

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks - Least Expensive)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production (Most Expensive).

Model Number:
Total Price (each): $ 62.72
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket).

Dayus DARE5-FG filter grille dimensions

Mounting Options:

Dayus DARE5-FG filter grille mounting

Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Why do you recommend the door mounting be the wire hinge and plastic tabs for the dare5 grill? I want a removable core for cleaning, so is the spring hinge not acceptable? Also, whats the pros and cons to the plastic tabs vs the thumb screw fitting closures?
A:   Sure, you can use spring pins. The hinge is better to ensure the grille does not fall out by accident. Plastic tabs tend to last longer under repeated use than thumb screws. Both are fine.

       Asked on 2021-03-21 by Jorg
#2 Q:   Are your measurements for the size of the opening in the cieling or are they the outer dimensions of the grille?
A:   Measurements selected on the page are LIST measurements. The LIST measurements are the size of the opening in the ceiling, not the grille.

       Asked on 2020-04-13 by Michael
#3 Q:   When ordering which measurement should be designated as the length and which is the width.
A:   Width is your horizontal side dimension. Height is your vertical side dimension. The mounting options will be on the horizontal sides, so along your horizontal dimension.

       Asked on 2017-11-03 by TRB
#4 Q:   Is the dare5 grill ok to ceiling mount if so what mounting is best
A:   Yes, ceiling mount is fine. The mounting they are asking for pertains to the door itself...we prefer the wire hinge and nylon screen tabs for that. To mount the grille assembly itself, you will open the door and screw through the back sides into the adjoining material.

       Asked on 2017-10-23 by Mike
#5 Q:   Which of your filter return grille styles will be the quietest (least air noise)? Our current filter grille is very noisy during operation which is the main reason we want to replace it. Will a standard store bought 24x18 disposable filter fit into your 24x18 grille? regards, George Cech
A:   The DARE5 is mostly open and therefore would be the quietest.

       Asked on 2014-06-22 by George
