Dayus Bar Linear No Flange Frame Grilles

DABLN No Flange Frame bar linear grilles and registers.

· Fully extruded aluminum construction
· No flange frame designed for a stylish built-in look
· Fixed blades designed for long straight air throw
· End caps are included. Open ends can be specified as required
· Available on 1/2 inch increments as standard
· Durable powder coat painted finish
· NOT SUITABLE FOR FLOOR USE

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Type/Style:
  Dayus Grilles   DABLN Style
(click on picture for a larger view or spec drawing)

Click here to download the grille cut-sheet (info sheet).
LIST* Length:
LIST* Width (Height): Please select LENGTH above first

*NOTE: The LIST Length and Width are the size of the OPENING. See cut-sheet for undercut and sizing info. Blades are in direction of Length.
Blade Options: 0 Degree, 1/5 Inch Blade ('-00')
Pencil Proof, 1/4 Inch Blade ('-01')
15 Degree, 1/5 Inch Blade ('-15')
30 Degree, 1/5 Inch Blade ('-30')
0 Degree, 1/8 Inch Blade ('-82')
1/8 Inch Blade, 1/4 Inch Spacing ('-84')
Mounting: Concealed '-C' (for ceiling, wall, floor, and sill applications)
No Mounting '-TB' For Custom Applications (not typically used)
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - NOT available for BLACK finish



Model Number:
DABLN-00-C-x-White-STD

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket).
Quantity:

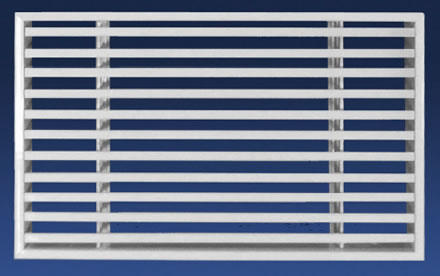

dayus bar linear grilles  DABLN Style

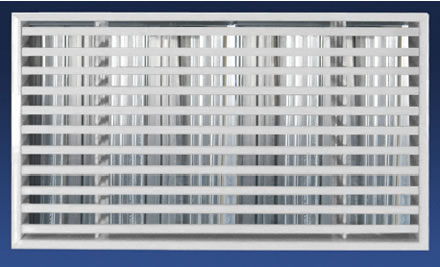

dayus bar linear grilles  DABLDN Style

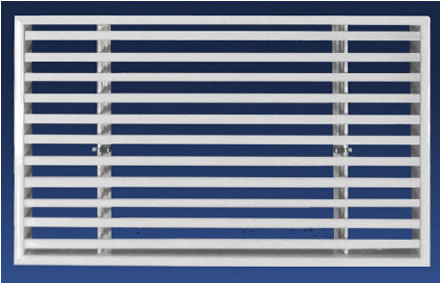

dayus bar linear grilles  DABLRN Style

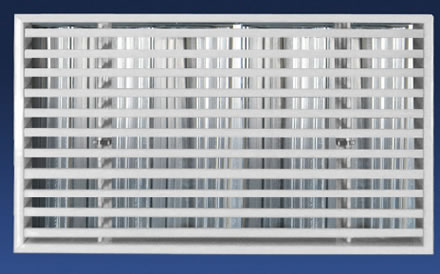

dayus bar linear grilles  DABLDRN Style

Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)
