Dayus Bar Linear DABLRJ and DABLRH Hidden Flange Grilles

DABLRH - Hidden flange frame designed to be installed underneath drywall

DABLRJ - J-Bead recessed flange frame (must be taped & plastered over)

· Fixed blades designed for long straight air throw
· Available on 1/2 inch increments as standard
· Custom sizes available, but extra charge may apply
· Durable powdercoat painted finish
· NOT SUITABLE FOR FLOOR USE

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Type/Style:
  Dayus Grilles   DABLRH Style
(click on picture for a larger view or spec drawing)

Click here to download the grille cut-sheet (info sheet).
LIST* Length:
LIST* Width (Height): Please select LENGTH above first

*NOTE: The LIST Length and Width are the size of the OPENING. See cut-sheet for undercut info. Blades are in direction of Length.
Blade Options: 0 Degree, 1/5 Inch Blade ('-00')
Pencil Proof, 1/4 Inch Blade ('-01')
15 Degree, 1/5 Inch Blade ('-15')
30 Degree, 1/5 Inch Blade ('-30')
0 Degree, 1/8 Inch Blade ('-82')
1/8 Inch Blade, 1/4 Inch Spacing ('-84')
Mounting: Screws '-A' (for ceiling, wall, and sill applications)
No Mounting '-TB' For Custom Applications (not typically used)
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - NOT available for BLACK finish



Model Number:

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket). 		Quantity:

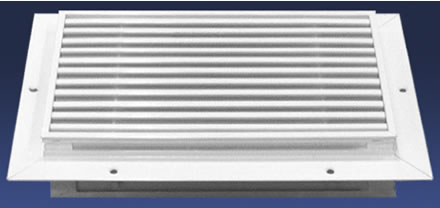

dayus bar linear grilles  DABLRH Style

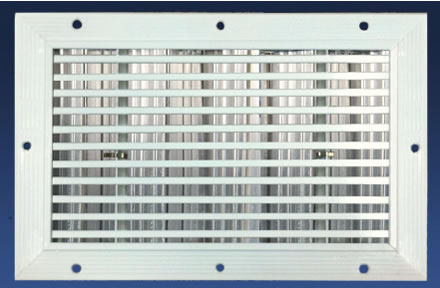

dayus bar linear grilles  DABLDRH Style

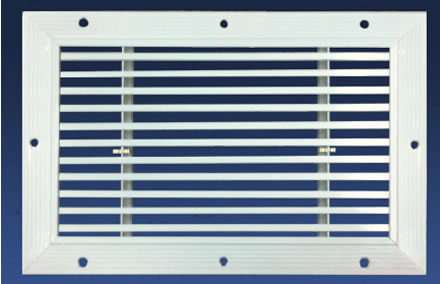

dayus bar linear grilles  DABLRJ Style

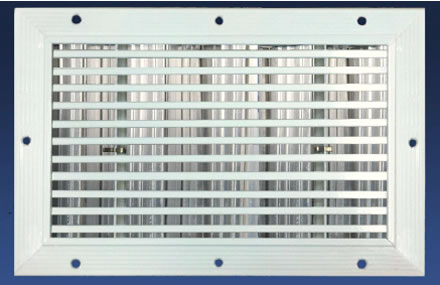

dayus bar linear grilles  DABLDRJ Style

Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can you let me know this Hidden FLange Grille is different from other Grilles? Advantages?
A:   These are used when you do not want to see a flange after installation. A typical flange is 1 to 1.5 inches all the way around. These are permanently installed (which can be a disadvantage) but they offer that no flange clean look that some people prefer.

       Asked on 2024-06-02 by Dung
#2 Q:   What is the PD of the 84 vs. 82 J bead linear grilles with OBD
A:   Have a look at page 2 of the cut sheet which show dimensions of the different blade styles: https://www.hvacquick.com/catalog_files/Dayus_dablrj_Cut_Sheet.pdf

       Asked on 2019-01-11 by Craig
