Lifebreath HRV/ERV Intake and Exhaust Hoods

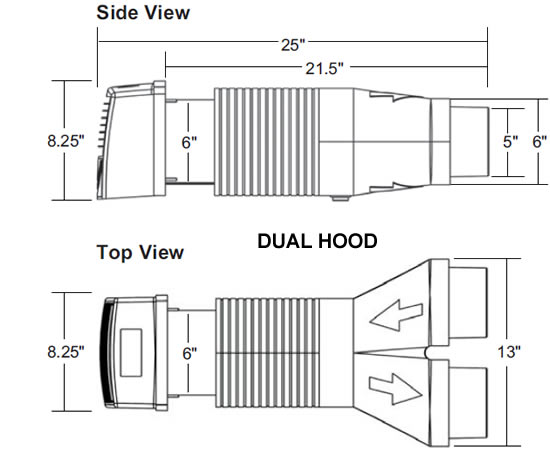

DUAL HOOD: Requires only one 6 inch opening for intake/exhaust. Robust design, with damage-resistant metal construction for exterior wall connection. Durable rigid plastic for duct connections.

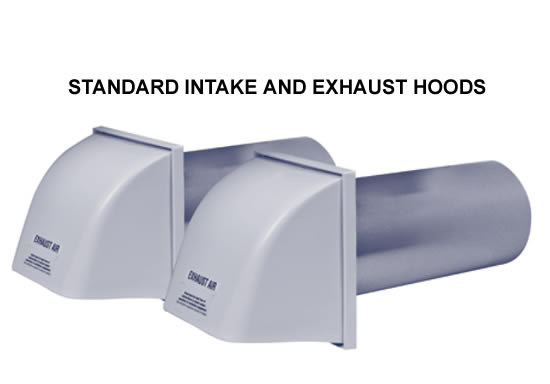

WEATHERHOOD KITS: Ideal for HRV/ERV applications. High density polyethylene for a durable, long life even in severe climate. Includes screens to protect against the entry of small animals and large insects. No moving parts, eliminates freezing or sticking potential.

model description usually ships price QTY
99-186 Lifebreath weatherhood kits. Intake and exhaust hoods with wall sleeves (1 of each). White plastic. 6 inch diameter. 1 Day. In-stock $66.70
99-190 Lifebreath dual hood intake/exhaust dual hood for HRVs/ERVs. Requires only one 6 inch opening for intake/exhaust. Durable rigid plastic. 1 Day. In-stock $160.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


lifebreath dual hood

lifebreath hoods

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Hi. Would the dual hood work with a renewaire ev90? If not which small Lifebreath would pair with this hood? Thank you
A:   The dual hood maxes out at 140 cfm and the EV90 typical range is 40-110 CFM per their specs. You should be fine.

       Asked on 2021-08-11 by Vince
#2 Q:   Can the lifebreath dual hood be used with Aldes h150trg HRV
A:   You are on the very upper limit with that HRV. The dual hood maxes out at 140 cfm and at that point has a 0.34 inch pressure drop on the intake. That is quite significant. You might be better off with 2 traditional 6 inch hoods.

       Asked on 2020-09-29 by Leon
#3 Q:   Can I just order the exhaust hood and not the entire kit?
A:   No. They come packaged and sold as a pair from the factory.

       Asked on 2018-10-07 by Jeff
#4 Q:   Could I use the dual hood unit with an air exchange unit?
A:   Yes, the dual hood is specifically designed for HRV/ERV/Air Exchange units. Make sure the airflow/sizing is a match for the hood.

       Asked on 2018-04-29 by Mike
#5 Q:   Could 2 4 inch 200 cfm exhaust ducts be hooked up to dual hood??
A:   Theoretically yes, but not recommended. That hood maxes out at 140 cfm on manufacturers performance specs. Above that the pressure drop is very high. There could also be issues with water being sucked in.

       Asked on 2018-01-27 by Greg
#6 Q:   I understand the single pipe penetrating the exterior is 6, but what are the individual interior ducts? 4, 5, or 6?
A:   I presume you are asking about the dual hood. The interior duct connections are 5/6 inch, meaning either duct size can be connected. See the dimensions in the catalog sheet:

       Asked on 2017-04-14 by Brendan
#7 Q:   Does the Dual hood come with an internal damper for intake/exhaust?
A:   There are no dampers in this hood unit. If one is desired on the output side, we recommend an inline butterfly backdraft damper in the line after the HRV, prior to the hood.

       Asked on 2017-01-01 by KR
