Warmup DCM-PRO Uncoupled Floor Heating System - 240 VAC

The Warmup DCM-PRO Cable is a custom designed cable compatible with all uncoupling membranes. It can be installed at 2, 3 or 4 pegs. The cable itself allows primary heating thanks to the twin-core ETFE cable, for highest output. It is guaranteed 30-years. Even better results when used with Warmup 4iE® Smart Thermostat.

The DCM-PRO Heating Cable is durable and flexible. It’s ETFE inner jacket allows for high heat output while it’s PVC outer sleeve protects for a smooth installation. The DCM-PRO Heating cable is suitable for use with both Membrane options.

The DCM-PRO Membrane’s innovative uncoupling design results in significant protection for tiled flooring by creating a new layer between the subfloor and the floor finish. The Membrane is available in two options, fleece-backed or peel-and-stick, offering great versatility for your installation preference. Both membranes can be used with the DCM-PRO Heating Cable for efficient underfloor heating.

CABLE FEATURES:

• Operating voltage - 240V
• Thickness - 3/16 inch
• Output - Approx. 4W/lin foot (varies with spacing)
• Construction - Multi-stranded, dual wire
• Cold lead - 10ft long, 2 core braided
• 30-year manufacturer warranty on DCM-PRO Cable

model description usually ships price QTY
DCM-240-195 Warmup DCM Pro electric heating cable. 195 Watts, 240 Volts, 57 ft length. 2-3 Days $187.40
DCM-240-325 Warmup DCM Pro electric heating cable. 325 Watts, 240 Volts, 25 sq. ft., 83 ft length. 2-3 Days $245.80
DCM-240-390 Warmup DCM Pro electric heating cable. 390 Watts, 240 Volts, 30 sq. ft., 100 ft length. 2-3 Days $250.40
DCM-240-525 Warmup DCM Pro electric heating cable. 525 Watts, 240 Volts, 40 sq. ft., 133 ft length. 2-3 Days $302.50
DCM-240-655 Warmup DCM Pro electric heating cable. 655 Watts, 240 Volts, 50 sq. ft., 166 ft length. 2-3 Days $329.10
DCM-240-785 Warmup DCM Pro electric heating cable. 785 Watts, 240 Volts, 60 sq. ft., 200 ft length. 2-3 Days $370.60
DCM-240-920 Warmup DCM Pro electric heating cable. 920 Watts, 240 Volts, 70 sq. ft., 233 ft length. 2-3 Days $408.10
DCM-240-1050 Warmup DCM Pro electric heating cable. 1050 Watts, 240 Volts, 80 sq. ft., 266 ft length. 2-3 Days $437.40
DCM-240-1180 Warmup DCM Pro electric heating cable. 1180 Watts, 240 Volts, 90 sq. ft., 299 ft length. 2-3 Days $480.70
DCM-240-1310 Warmup DCM Pro electric heating cable. 1310 Watts, 240 Volts, 100 sq. ft., 332 ft length. 2-3 Days $509.20
DCM-240-1640 Warmup DCM Pro electric heating cable. 1640 Watts, 240 Volts, 125 sq. ft., 415 ft length. 2-3 Days $600.20
DCM-240-1970 Warmup DCM Pro electric heating cable. 1970 Watts, 240 Volts, 150 sq. ft., 498 ft length. 2-3 Days $752.00
DCM-240-2300 Warmup DCM Pro electric heating cable. 2300 Watts, 240 Volts, 175 sq. ft., 581 ft length. 2-3 Days $827.20
DCM-240-2630 Warmup DCM Pro electric heating cable. 2630 Watts, 240 Volts, 200 sq. ft., 664 ft length. 2-3 Days $858.40
DCM-240-2955 Warmup DCM Pro electric heating cable. 2955 Watts, 240 Volts, 225 sq. ft., 747 ft length. 2-3 Days $918.70
DCM-240-3240 Warmup DCM Pro electric heating cable. 3240 Watts, 240 Volts, 250 sq. ft., 830 ft length. 2-3 Days $1010.20
4iE-V03BL Warmup 4iE Portrait Thermostat. 120V/240V with sensor probe and instructions. Onyx black. Non WiFi. 15A. 1 Day. In Stock $211.90
4iE-V03WH Warmup 4iE Portrait Thermostat. 120V/240V with sensor probe and instructions. Cloud white. Non WiFi. 15A. 1 Day. In Stock $211.90
4iE-V04BL Warmup 4iE Portrait Smart WiFi Thermostat. 120V/240V with sensor probe and instructions. 15A. Onyx black. 1 Day. In Stock $274.60
4iE-V04WH Warmup 4iE Portrait Smart WiFi Thermostat. 120V/240V with sensor probe and instructions. 15A. Cloud white. 1 Day. In Stock $274.60
DCM-M-80 Warmup fleece backed uncoupling membrane for NADCM cable. Box of 10 sheets (each sheet 30x39 inches). 80 sq. ft. 1 Day. In Stock $198.60
DCM-M-150 Warmup fleece backed uncoupling membrane for NADCM cable. Roll of 150 sq. ft. (39 inches x 47 feet). 1 Day. In Stock $331.60
DCM-PS-80 Warmup DCM Pro peel-and-stick membrane. Box of 10 sheets (each sheet 30x39 inches). 80 sq. ft. 1 Day. In Stock $217.60
DCM-PS-150 Warmup DCM Pro peel-and-stick membrane. Roll of 150 sq. ft. (39 inches x 47 feet). 1 Day. In Stock $350.60
DCM-PLG-12 Warmup plastic fixing strip for NADCM cable system. Strips are 12 inch long, 3/16 inch thick. Box of 50 strips. 1 Day. In Stock $43.20
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

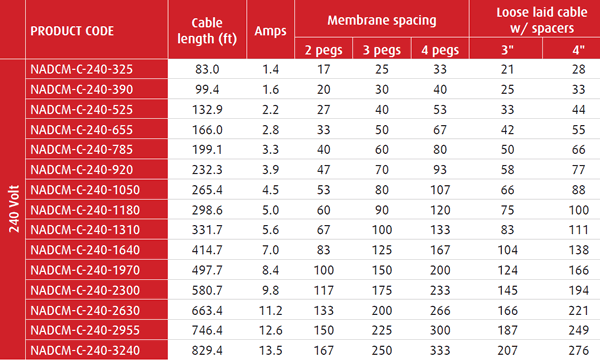

warmup DCM-PRO wire sizing

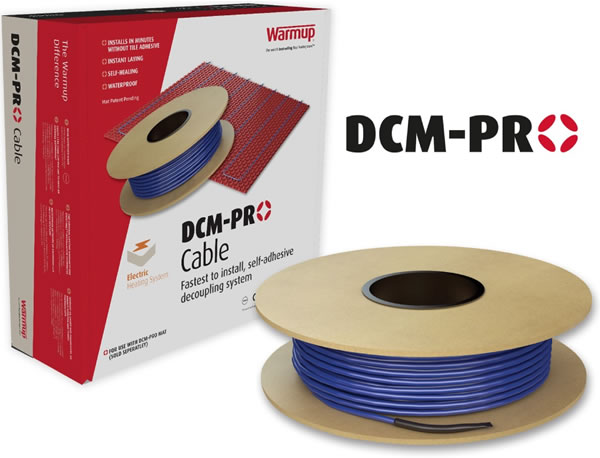

warmup DCM-PRO wire bundle

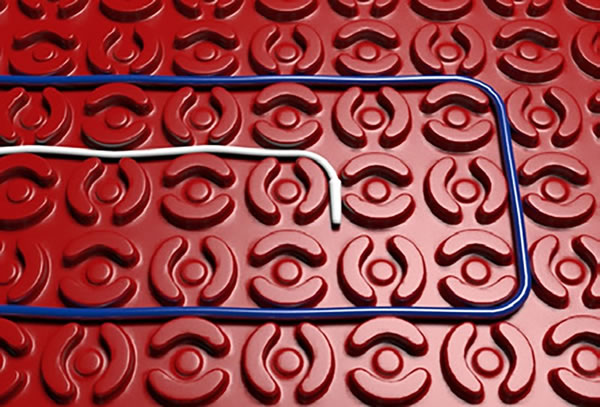

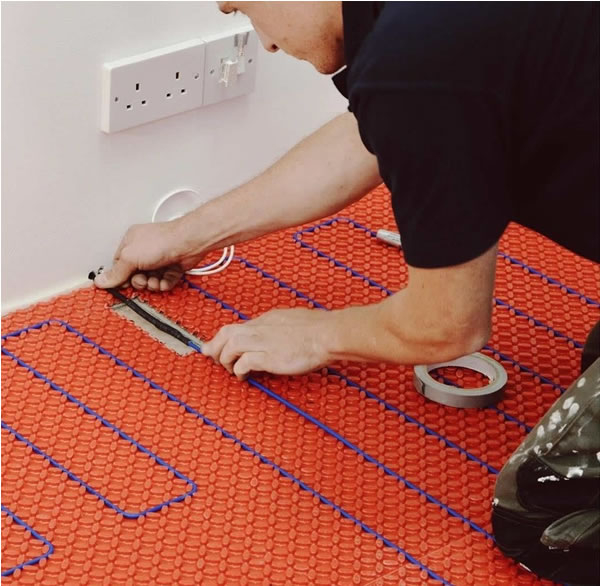

warmup DCM-PRO wire on membrane

warmup DCM-PRO membrane closeup

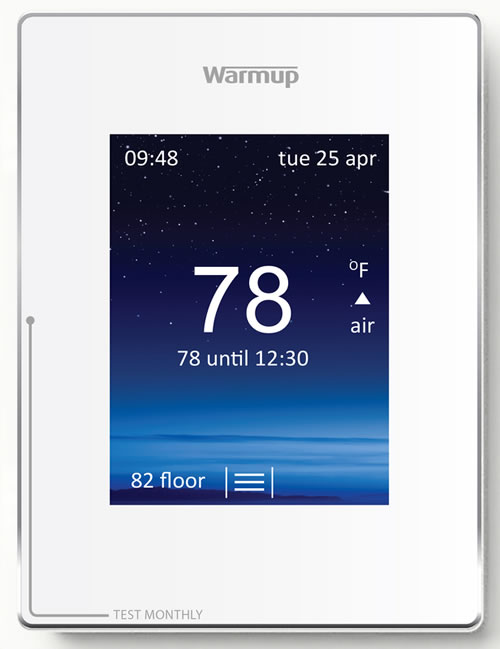

warmup 4iE thermostat

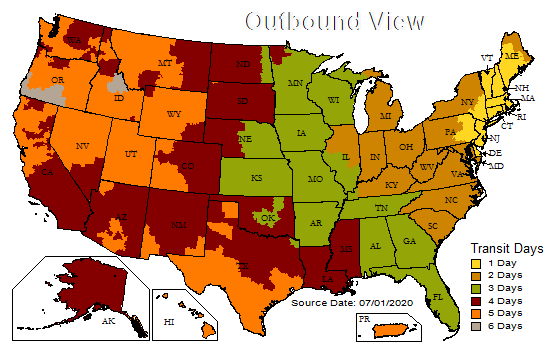

Items marked "In-Stock" will ship from Oregon. All other items ship from Warmup in CT.
