Lima 60GHFF Series Stamped Return Air Filter Grilles

Lima 60GHFF Series Stamped Return Air Filter Grilles

Lima 60GHFF Series stamped return air filter grilles.

  • Acts as a holder for the filter and/or as an access to small air handling units
  • Hinged on one side
  • Fins spaced on 1/2" centers at 40 degrees
  • One-inch filter frame
  • Standard fastening method is thumb latch
  • Removable face
  • Steel
  • Bright White finish standard

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is larger.

model description usually ships price QTY
60GHFF 10 10 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 10x10 inch list size (WxH). [1520] 1 Day. In-stock $40.10
60GHFF 12 12 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 12x12 inch list size (WxH). [1116] 1 Day. In-stock $23.90
60GHFF 12 24 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 12x24 inch list size (WxH). [1112] 1 Day. In-stock $55.70
60GHFF 14 14 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 14x14 inch list size (WxH). [1142] 1 Day. In-stock $28.80
60GHFF 14 20 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 14x20 inch list size (WxH). [1217] 1 Day. In-stock $38.80
60GHFF 14 24 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 14x24 inch list size (WxH). [1415] 1 Day. In-stock $57.10
60GHFF 14 30 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 14x30 inch list size (WxH). [1422] 1 Day. In-stock $75.30
60GHFF 16 16 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 16x16 inch list size (WxH). [1251] 1 Day. In-stock $52.00
60GHFF 16 20 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 16x20 inch list size (WxH). [1317] 1 Day. In-stock $56.50
60GHFF 20 14 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 20x14 inch list size (WxH). [1172] 1 Day. In-stock $52.00
60GHFF 20 20 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 20x20 inch list size (WxH). [1046] 1 Day. In-stock $57.20
60GHFF 20 25 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 20x25 inch list size (WxH). [1050] 1 Day. In-stock $67.50
60GHFF 20 30 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 20x30 inch list size (WxH). [1074] 1 Day. In-stock $93.30
60GHFF 24 12 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 24x12 inch list size (WxH). [1057] 1 Day. In-stock $53.80
60GHFF 24 14 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 24x14 inch list size (WxH). [1205] 1 Day. In-stock $56.70
60GHFF 24 24 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 24x24 inch list size (WxH). [1176] 1 Day. In-stock $88.40
60GHFF 25 20 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 25x20 inch list size (WxH). [1044] 1 Day. In-stock $74.80
60GHFF 30 14 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 30x14 inch list size (WxH). [1224] 1 Day. In-stock $74.80
60GHFF 30 20 WHT Lima 60GHFF series steel stamped return grille with filter frame. White. 30x20 inch list size (WxH). [1019] 1 Day. In-stock $92.70
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



Lima 60GHFF Series Grilles

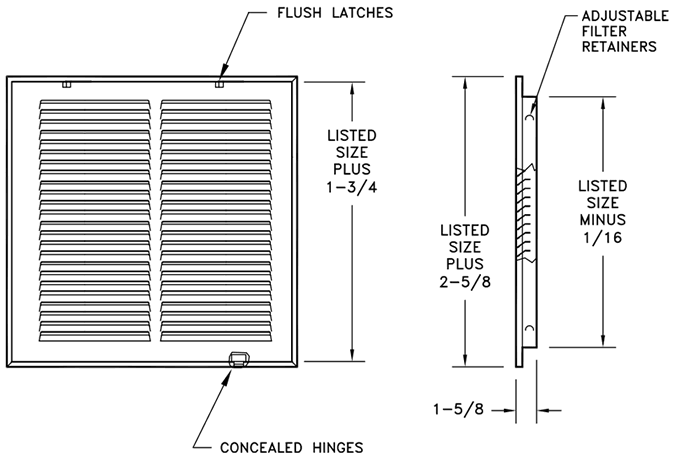

Lima 60GHFF Series Grilles Dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   My current filters are 24x30x1. The grille has a broken hinge and a broken latch. I would like to replace the grille housing that accesses the filter area. Do you custom make one that large? If you do, what would be the cost and time for delivery?
A:   That size is available in the TruAire line. 190 or 290 series. Call us if you have trouble selecting the right one. Thanks. https://www.hvacquick.com/products/residential/Grilles-Registers/Filter-Grilles

       Asked on 2023-06-02 by Steve
