HVACQuick CSL Series Elbow Duct Silencer

Typically used with kitchen exhaust systems, our CSL elbow duct silencers dramatically reduce the noise of any inline exhaust fan. Thanks to their elbowed design, these silencers offer greater noise suppression than straight silencers, without sacrificing airflow.

If your application requires both sound abatement and one or more turns in the duct run, an CSL silencer is the ideal solution: The rigid elbow provides a much more efficient turn than easily-crimped ductwork. At the same time, the elbowed design maximizes sound absorption.

Constructed from durable, corrosion-resistant aluminum with sound-dampening fiberglass insulation, CSL silencers are sized for use with 8-inch diameter duct. Two duct connection flanges are provided with each unit and attach easily to the silencer.

model description usually ships price QTY
CSL-90-8 HVACQuick CSL series elbow silencer. 90 degree bend. For 8 inch ducts. Includes silencer and 8 inch duct connections. Includes 10 mounting screws and 2 duct adapters. 1 Day. In-stock $169.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

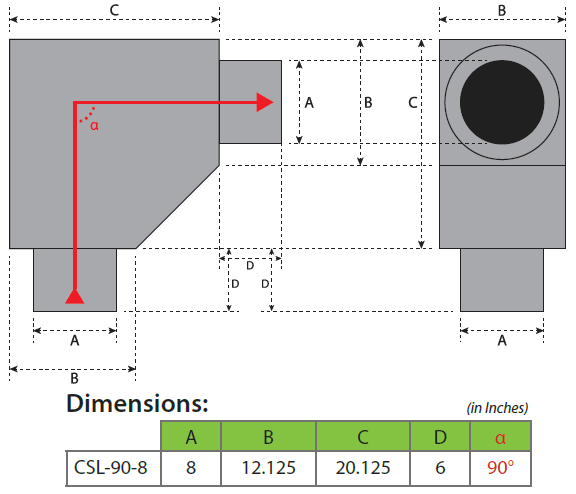

Elbow Silencer Dimensions

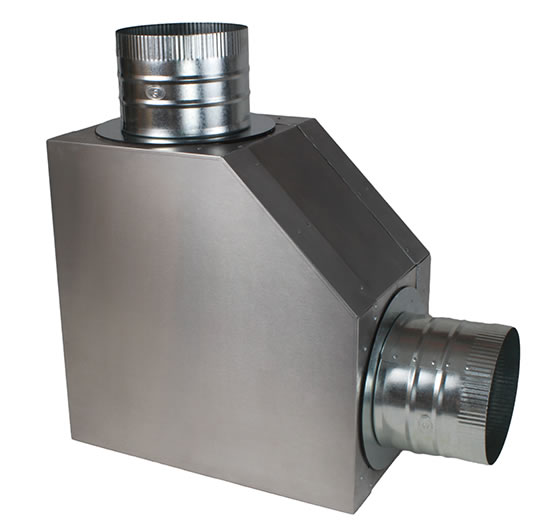

Elbow Silencer with flanges

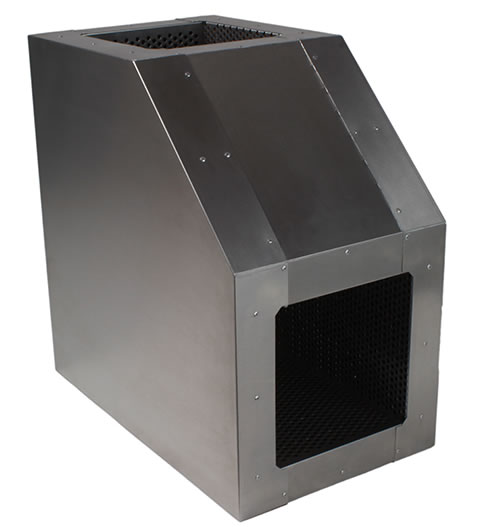

Elbow Silencer no flanges

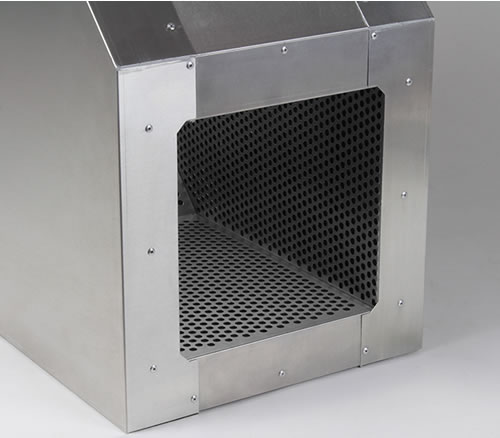

Elbow Silencer intake

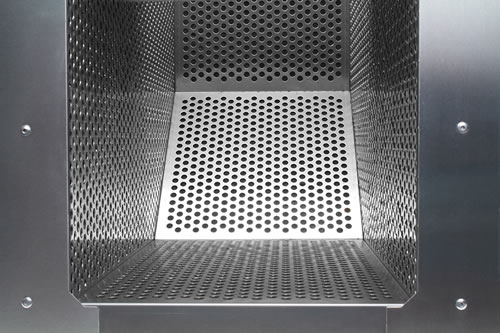

Elbow Silencer interior

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   How much exhaust air does this device handle and what is the corresponding air pressure drop in inches WG
A:   The CSL has the same inner diameter as 8 inch duct. It will roughly have the same pressure drop (at your CFM) as a 90 degree elbow. There are no pressure drop charts available.

       Asked on 2022-05-29 by Dan
#2 Q:   I have purchased already. I intend to use in HVAC residential ducting. I do not plan to insulate the box. Just the ducting to and from. Temp range of air 55 to 130 Deg F. Not including any local codes, is this a good application of this product?
A:   Yes, that is well within the range of standard residential HVAC which is what this was designed for.

       Asked on 2021-03-03 by Steve
#3 Q:   Do these come in a 10 inch size?
A:   Only the 8 inch size for now.

       Asked on 2019-08-20 by Raju
#4 Q:   How many decibels does it reduce at the exhaust vent
A:   No official rating. Its comparable to the Fantech LD8 straight silencer: http://www.hvacquick.com/products/residential/Ventilation-Accessories/Silencers/Fantech-Silencers

       Asked on 2018-04-30 by AB
#5 Q:   Do you get better sound reduction with an elbow silencer like this or a straight silencer?
A:   Elbow silencers will typically provide extra sound absorption since the air path is bent. The CSL series had additional sound absorption material in the elbow area that is not possible with a straight through design.

       Asked on 2017-09-11 by Rob
