AirScape Destratification Fans

AirScape Destratification fans disperse air throughout buildings by disrupting the normal thermal stratification that occurs as cold air settles. Whether used to move warm air down in Winter or to eliminate cold pockets of air in the Summer, destratification fans equalize the air temperature in the building. Equalizing air temperature can drastically reduce heating and cooling costs and raise the overall comfort levels of the building occupants. They distribute air in greenhouses evenly and create air movement over plants.

Features:

  • Unique design with floor, ceiling or angled mounting options
  • 10 speed operation with built in 12 hour timer for automatic shutoff
  • Unit mounted speed controller can be mounted wall remotely (50 foot cable included)
  • Sturdy, lightweight 5052 H32 Aluminum construction; made in the USA
  • 24-inch Industrial Grade patented aerodynamic fan
  • Efficient operation 1509 cfm (@107 watts) on high, 488 cfm (@7.4 watts) on low
  • Long straight airflow to force full mixing of the warm and cold air temperatures in large spaces
  • Optional remote controls unit(s) from up to 75 ft away
model description usually ships price QTY
AirScape DeStrat Fan Destratification Fan. 24” Housing / blade. Includes Digital Touch Controller with 10 speed operation and built in 12 hour timer and 10 ft power cord. Multi positional mount including floor legs allows airflow to blow up from the floor or down/up at angles for ceiling or corner mount. Airflow 488-1509 CFM. SHIPS FREIGHT. 2 weeks $650.00
RC-DTC-KIT Airscape Wireless Remote Kit. Includes remote transmitter (DTC-TRANS-V1) and wireless receiver (RC-REC-V1). Full speed range and timer function. Battery operated (included). Compatible with Digital Touch Controller only. 1 Day. In Stock $59.00
TT-TRANS-V1 Additional Wireless Transmitter for use with either the 2nd Generation Controls Package or the RCR-KIT-V1. REMOTE ONLY (no receiver). Multi or high/low speed and timer function. Battery operated (included). 1 Day. In-stock $25.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

Brochures:

Airscape Destrat Fan Spec Sheet (PDF file)

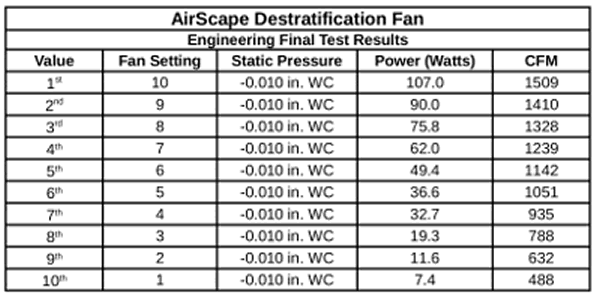

Airflow and Energy Use:

airscape destratification fan specifications

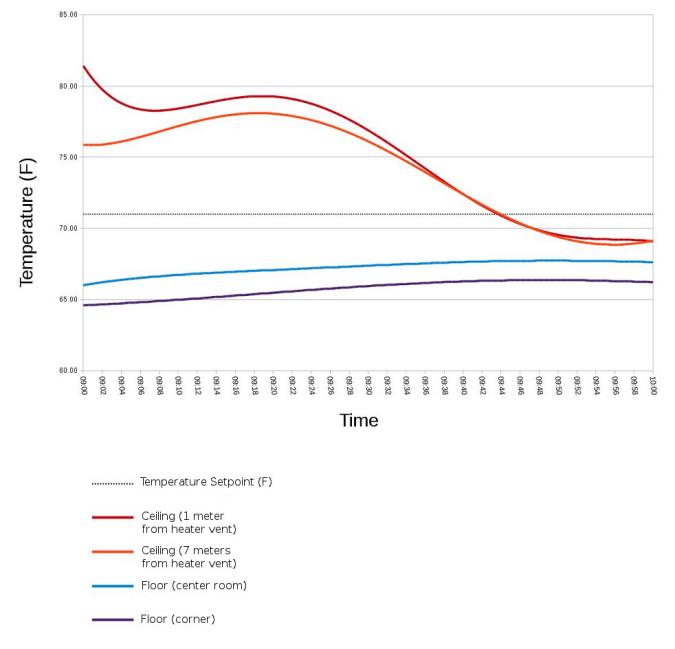

1 Hour Thermal Performance Graph:

airscape destratification fan performance

  AirScape Digital Touch Controller in action (click for youtube.com video):

  Click any image below to enlarge it

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

AirScape CF Cabinet Fan with Filtration

Air handler for general purpose ventilation. Aluminum enclosure with R-4 rated insulation. MERV 6 or MERV 13 filtration options. 1600 or 1930 CFM at 0.5 inches W.C.
