CS Series Belt Drive Exhaust Fans - 3 Phase
Brand Logo

Quietaire CS Series Belt Drive Exhaust Fans - 3 Phase

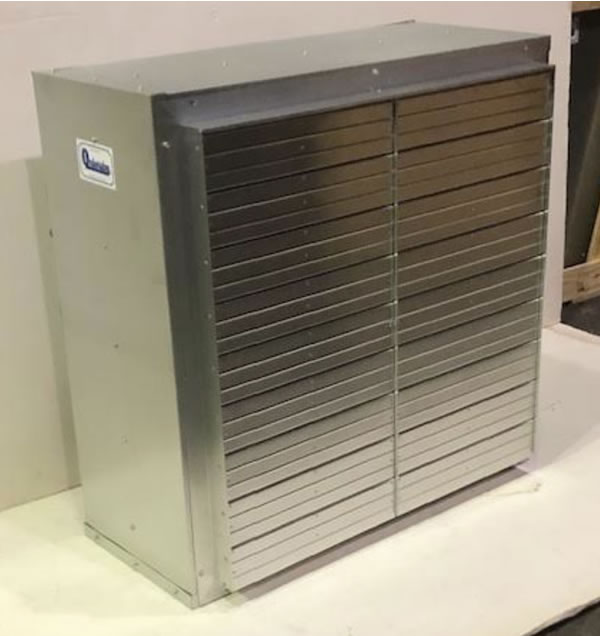

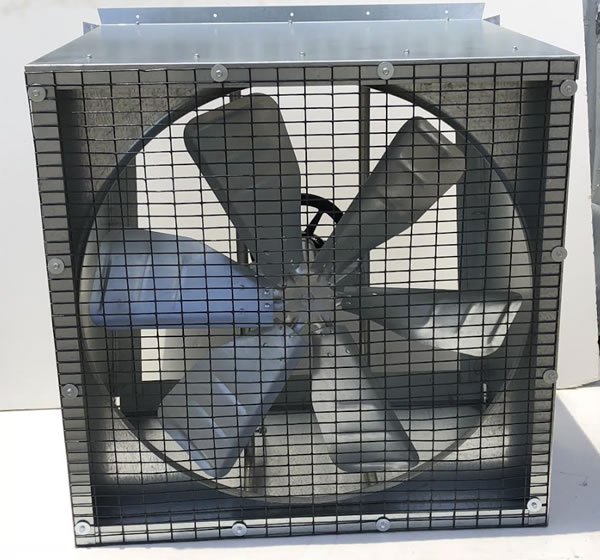

Quietaire CS Series commercial exhaust fans. Belt drive. Perfect for general ventilation applications in stores, warehouses, public buildings, garages, etc. Complete with fan, drives, wall box, discharge shutter and rear guard.

  • All Galvanized construction
  • 230/460 VAC, 3 Phase motors
  • Belt drive
  • SIZES: 24” to 48”
  • CFM: 1,303-27,089
model description usually ships price QTY
CS2433-3PH Quietaire CS Series exhaust fan. 24 inch, belt drive. 1/3 HP, 230/460 VAC, 3 PH. 3-5 Days $1383.60
CS2450-3PH Quietaire CS Series exhaust fan. 24 inch, belt drive. 1/2 HP, 230/460 VAC, 3 PH. 3-5 Days $1388.20
CS2475-3PH Quietaire CS Series exhaust fan. 24 inch, belt drive. 3/4 HP, 230/460 VAC, 3 PH. 3-5 Days $1409.60
CS3033-3PH Quietaire CS Series exhaust fan. 30 inch, belt drive. 1/3 HP, 230/460 VAC, 3 PH. 3-5 Days $1567.40
CS3050-3PH Quietaire CS Series exhaust fan. 30 inch, belt drive. 1/2 HP, 230/460 VAC, 3 PH. 3-5 Days $1572.10
CS3075-3PH Quietaire CS Series exhaust fan. 30 inch, belt drive. 3/4 HP, 230/460 VAC, 3 PH. 3-5 Days $1593.40
CS3633-3PH Quietaire CS Series exhaust fan. 36 inch, belt drive. 1/3 HP, 230/460 VAC, 3 PH. 3-5 Days $1769.90
CS3650-3PH Quietaire CS Series exhaust fan. 36 inch, belt drive. 1/2 HP, 230/460 VAC, 3 PH. 3-5 Days $1774.50
CS3675-3PH Quietaire CS Series exhaust fan. 36 inch, belt drive. 3/4 HP, 230/460 VAC, 3 PH. 3-5 Days $1795.90
CS36100-3PH Quietaire CS Series exhaust fan. 36 inch, belt drive. 1 HP, 230/460 VAC, 3 PH. 3-5 Days $2158.90
CS4233-3PH Quietaire CS Series exhaust fan. 42 inch, belt drive. 1/3 HP, 230/460 VAC, 3 PH. 3-5 Days $1973.20
CS4250-3PH Quietaire CS Series exhaust fan. 42 inch, belt drive. 1/2 HP, 230/460 VAC, 3 PH. 3-5 Days $1977.90
CS4275-3PH Quietaire CS Series exhaust fan. 42 inch, belt drive. 3/4 HP, 230/460 VAC, 3 PH. 3-5 Days $1999.20
CS42100-3PH Quietaire CS Series exhaust fan. 42 inch, belt drive. 1 HP, 230/460 VAC, 3 PH. 3-5 Days $2362.30
CS4850-3PH Quietaire CS Series exhaust fan. 48 inch, belt drive. 1/2 HP, 230/460 VAC, 3 PH. 3-5 Days $2242.50
CS4875-3PH Quietaire CS Series exhaust fan. 48 inch, belt drive. 3/4 HP, 230/460 VAC, 3 PH. 3-5 Days $2263.90
CS48100-3PH Quietaire CS Series exhaust fan. 48 inch, belt drive. 1 HP, 230/460 VAC, 3 PH. 3-5 Days $2626.90
CS48150-3PH Quietaire CS Series exhaust fan. 48 inch, belt drive. 1.5 HP, 230/460 VAC, 3 PH. 3-5 Days $2641.80
CS48200-3PH Quietaire CS Series exhaust fan. 48 inch, belt drive. 2 HP, 230/460 VAC, 3 PH. 3-5 Days $2691.00
CS56100-3PH Quietaire CS Series exhaust fan. 56 inch, belt drive. 1 HP, 230/460 VAC, 3 PH. 3-5 Days $3180.40
CS56150-3PH Quietaire CS Series exhaust fan. 56 inch, belt drive. 1.5 HP, 230/460 VAC, 3 PH. 3-5 Days $3195.20
CS56200-3PH Quietaire CS Series exhaust fan. 56 inch, belt drive. 2 HP, 230/460 VAC, 3 PH. 3-5 Days $3244.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page
