TRUaire 210 Series Steel Single Deflection Adjustable Bar Grilles

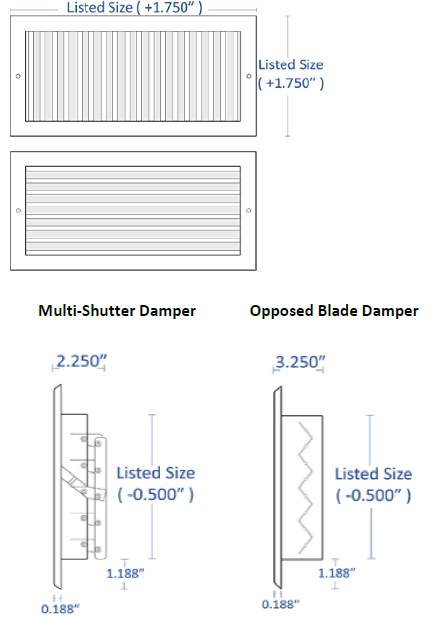

The 210 Series Steel Single Deflection grille/register is available in a wide variety of configurations for almost any application. The highly effective open blade design and TRUAIRE’s exclusive one piece frame allows for greater airflow.  Available with the SmoothGlide multi-shutter damper mechanism, a high quality opposed blade damper mechanism or without a damper.

  • Single deflection adjustable bars
  • Steel construction
  • No damper, multi-shutter or opposed blade damper
  • Durable white powder coat finish
  • For side wall or ceilings

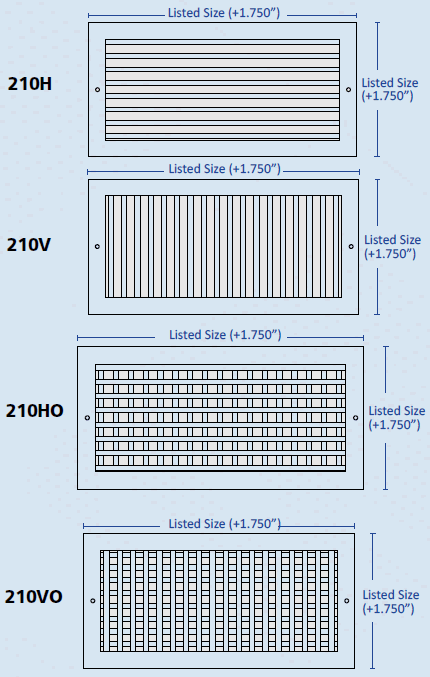

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is LARGER.

model description usually ships price QTY
210VM 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $34.90
210VM 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $32.60
210VM 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $35.70
210VM 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $41.80
210VM 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $44.10
210VM 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $46.90
210VM 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $44.10
210VM 16X04 16x4 inch (WxH - 17.75x5.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $40.80
210VM 16X06 16x6 inch (WxH - 17.75x7.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $43.20
210VM 16X08 16x8 inch (WxH - 17.75x9.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $47.40
210VO 18X12 18x12 inch (WxH - 19.75x13.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades with OBD damper. 1 Day. In-stock $76.20
210V 26X08 26x8 inch (WxH - 27.75x9.75 inch overall) TRUaire steel single deflection bar grille. VERTICAL blades. NO DAMPER. 1 Day. In-stock $52.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



truaire 210 single deflection grilles

truaire 210 single deflection grilles

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What is the free flow area of a TruAire 210 Series 14x10 register, double defection?
A:   That info may be found here: https://hvacquick.com/catalog_files/TRUaire_210_Performance.pdf

       Asked on 2023-05-10 by Brian
#2 Q:   how is it adjusted?
A:   The damper is done via a lever on the side. The blades are individually moved by hand so they have a wide range of air spread.

       Asked on 2020-02-07 by roland
#3 Q:   Are these made special order for desired size?
A:   They are not. Grilles under the Dayus brand on our site are custom made to any size. https://www.hvacquick.com/products/brands/Dayus

       Asked on 2018-08-21 by JLF
