AirScape Inline Metal Cased Heavy Duty Fans (300-550 cfm)

High quality metal cased inline fans suitable for continuous operation.

  • 300-550 cfm fan sizes
  • Centrifugal fan delivers high static pressure
  • Factory mounted POWER CORD
  • Galvanized steel housing
  • Mounting bracket included
  • 3 year warranty
  • Call our techs for application advice
model description usually ships price QTY

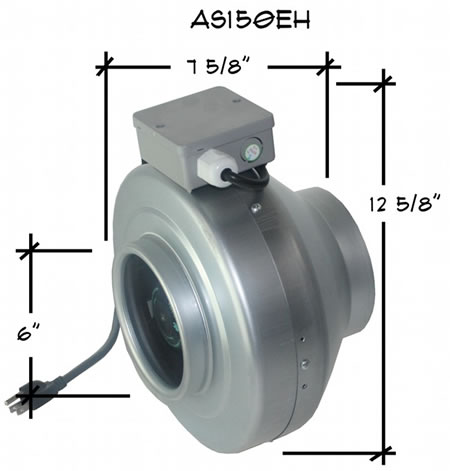

AS150EH AirScape inline centrifugal fan. 306 nominal CFM. 6 inch connections. Motorized impeller, galvanized steel casing, and 10 foot power cord. 1 Day. In-stock $94.00

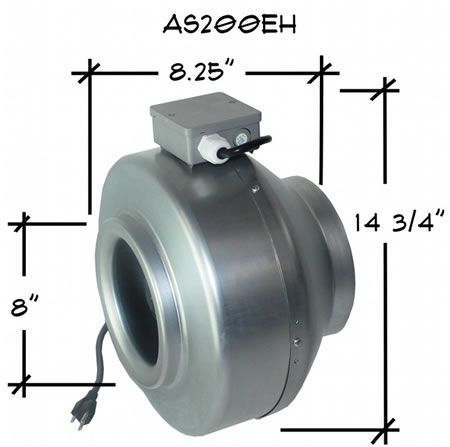

AS200EH-W AirScape inline centrifugal fan. 555 nominal CFM. 8 inch connections. Motorized impeller, galvanized steel casing, and 10 foot power cord. Powdercoated white. 1 Day. In-stock $104.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

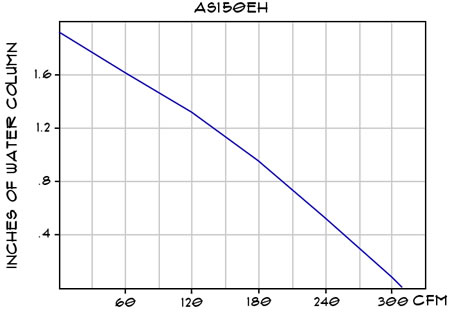

Airflow: 306 CFM (at 0" WC)
Max. Static Pressure:
1.9" WC
Casing: Galvanized Steel
Electrical: 120 VAC, 60hz, 0.97 Amps
Power: 115 Watts
Warranty: 3 Years

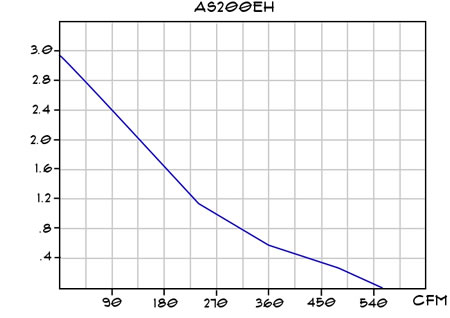

Airflow: 555 CFM (at 0" WC)
Max. Static Pressure:
2.9" WC
Casing: Galvanized Steel
Electrical: 120 VAC, 60hz, 1.72 Amps
Power: 198 Watts
Warranty: 3 Years

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   How loud is this fan? Does it operate without a speed controller?
A:   There are no noise ratings available. They will be equivalent to other inline fans with similar airflow. In our experience these are best paired with flexible insulated duct which does a great job of taking any fan noise out.

       Asked on 2022-01-29 by Brian
#2 Q:   AS150EH - Is it suitable for use with a speed controller?
A:   Yes. A 5 amp speed controller like the Fantech WC 15 works well. https://www.hvacquick.com/products/residential/AirFlow-Boosting/Exhaust-Fan-Controls/Fantech-Speed-and-Fan-Controls

       Asked on 2020-11-27 by GG
#3 Q:   What air temperature rating of this fan?
A:   This fan is rated for 140 degrees.

       Asked on 2013-07-04 by Marvin
