MagVent MV-90 Magnetic Dryer Vent For 90 Dryer Vent Path

The MV-90 is designed for when the vent path takes a 90 degree turn, such as down through the floor, up through the ceiling, or off to the side.

The MV-90 can handle offsets up to 3 inches from center to center. The more accurately you line up the MV-90 with the vent on the back of your dryer, the better the vent path and the further back you can locate your dryer. Normally, the MV-90 requires 5 1/2 inches of clearance behind the dryer. If an obstruction necessitates you locate the MV-90 at the maximum 3 inch offset, then your dryer will need to sit out an additional 3 inches to allow for a bend radius in the transition duct. See instructions for offsets greater than 3 inches.

The MagVent, a properly designed duct system, and routine cleaning are the solution to boost dryer efficiency and save energy!

model description usually ships price QTY
MV-90 MagVent magnetic dryer vent coupling. 90 degree vent path. 1 Day. In-stock $68.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

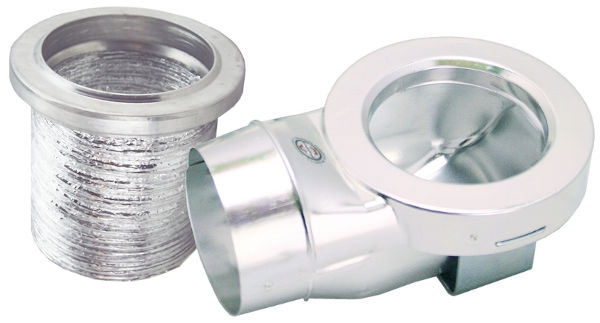

magvent mv-90

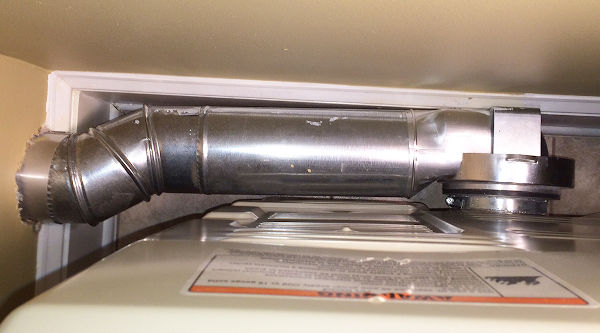

magvent mv-90 installed

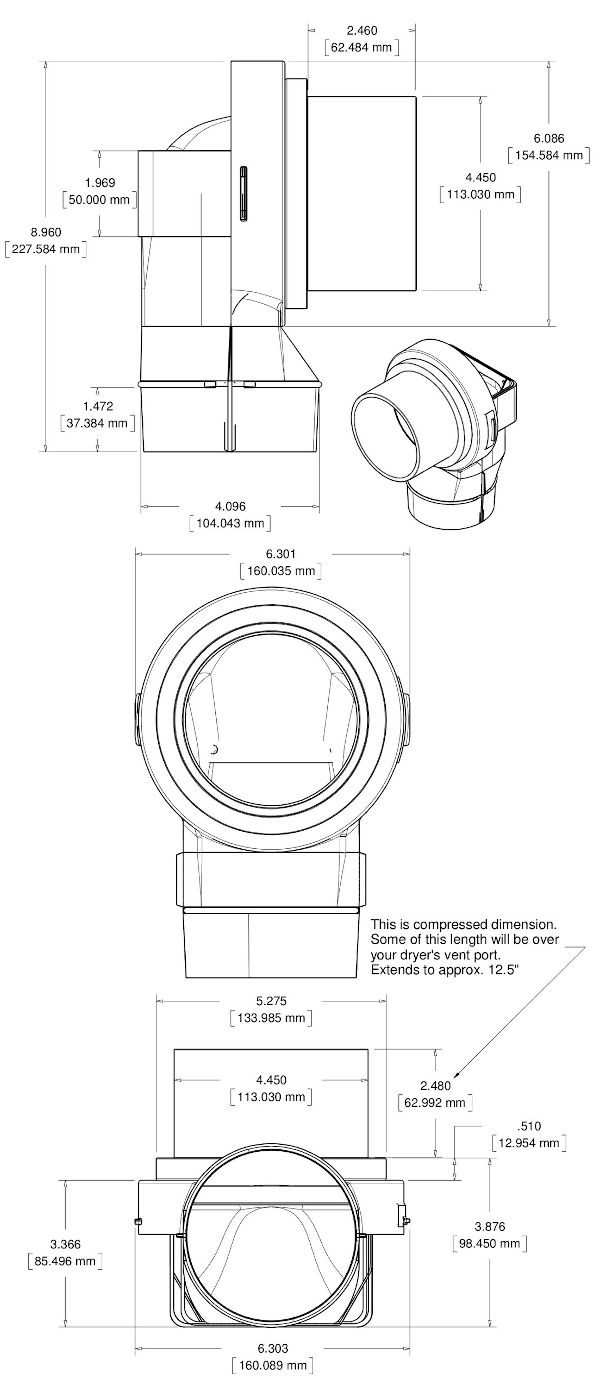

magvent mv-90 dimensions



Stocked in both Oregon and New York state. See transit maps below.

Some products might ship from multiple warehouses.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can the MV90 go through the floor? As a 90? And then can you hook the piece up to hard pipe?
A:   Sure, just make sure its well attached to the hard pipe and supported.

       Asked on 2021-03-21 by Adam
