Fantech FRD Inline Rectangular Low Profile Duct Fans

The compact housing design of the FRD Series allows for installation directly within rectangular ductwork (ranging from 12"x 6" ducts to 24"x 14" ducts), without the need for large elbows or transitional sections. FRD Series fans are simple to install. Simply mount the fan at any angle in any point in the ductwork. The motor is mounted on a hinged door.

  • Hinged door for service access
  • Terminal box with prewired electrical strip
  • 100% speed controllable
  • Airstream temperatures of up to 140° F
  • Three-year warranty
  • UL Listed and AMCA Certified

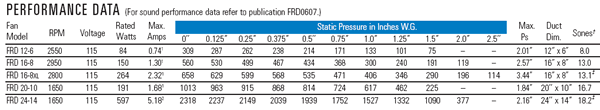

model description usually ships price QTY
FRD 12-6 Fantech FRD Fan. 12x6" Duct - 309 cfm 115/1/60 Pls call/email for availability $312.50
FRD 16-8 Fantech FRD Fan. 16x8" Duct - 560 cfm 115/1/60 Pls call/email for availability $424.30
FRD 16-8XL Fantech FRD Fan. 16x8" Duct - 658 cfm 115/1/60 Pls call/email for availability $500.00
FRD 20-10 Fantech FRD Fan. 20x10" Duct - 1,013 cfm 115/1/60 Pls call/email for availability $621.70
FRD 24-14 Fantech FRD Fan. 24x14" Duct - 2,318 cfm 115/1/60 Pls call/email for availability $1049.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

fantech frd



Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Does / would your company just sell me the hinged door motor and fan of model FRD 24-14?
A:   Sorry, these are only available from Fantech as a complete unit.

       Asked on 2020-06-07 by Tom
#2 Q:   Is there a way to have the fan turn on only when the hvac system is on and to turn off when not in use?
A:   The best way is to wire a relay to your furnace to activate the fan. Alternatively a pressure switch like the PS1503 is a common solution: https://www.hvacquick.com/products/residential/AirFlow-Boosting/Pressure-Switches/Tjernlund-PS1503-Positive-Air-Flow-Pressure-Switch

       Asked on 2019-07-16 by Alan
