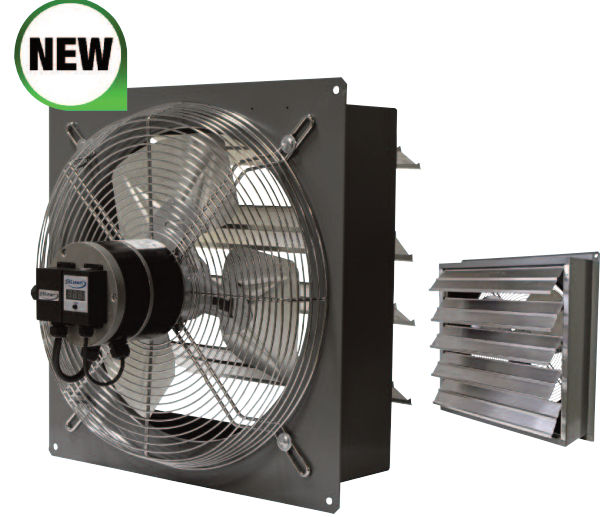

Canarm Leader Fan Series SD-EC Wall Exhaust Fans With EC Motor

Canarm SD-EC Series are variable speed fans with a unit mounted EC motor and controller.  Efficient and inexpensive these EC motor fans allow you to save up to 70% on energy costs.

• Available in 8” to 20” sizes
• CFM’s range from 200 to 3,400 CFM
• High efficiency totally enclosed EC motor
• Osha guard on intake side of fan
• Shipped completely assembled
• Rugged steel welded box housing with durable powder coat finish
• Speed controlled using the built in potentiometer on motor or by adding a 0-10 V controller

model description usually ships price QTY
SD8-ECV Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 8 inch. 360 nominal CFM, 115/208-230V, 1 phase. 3-4 Days $431.60
SD10-ECV Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 10 inch. 690 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $439.90
SD12-EC Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 12 inch. 1650 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $540.00
SD14-EC Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 14 inch. 2180 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $544.10
SD16-EC Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 16 inch. 2370 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $557.80
SD18-EC Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 18 inch. 3200 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $575.50
SD20-EC Canarm SD-EC Series direct drive exhaust fans with EC Motor. Variable speed. 20 inch. 3440 nominal CFM, 115/208-230V, 1 phase. 1-2 Weeks $634.10
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

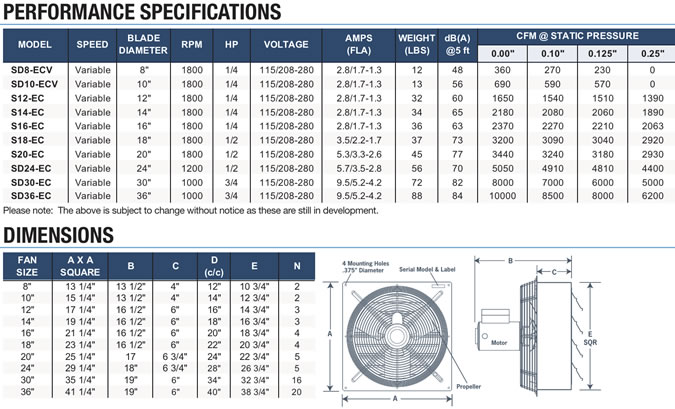

canarm sd-ec specifications

canarm sd-ec series fans

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Do you have a submittal sheet for the SD10EC fan?
A:   Only the catalog sheet on the site is available from Canarm. https://www.hvacquick.com/catalog_files/Leader_SD_EC_Wall_Catalog.pdf

       Asked on 2024-07-11 by Roberto
