Dayus DASLR Linear Slot Returns

Dayus DASLR Linear Slot Returns

Dayus DASLR slot returns have long narrow slots instead of traditional blades or fins. They are available in a variety of configurations and production cycles. DASLR DO NOT HAVE THE PATTERN CONTROLLERS IN THE SLOTS AND ARE FOR RETURN AIR APPLICATIONS ONLY.

- Fully extruded aluminum construction
- Diffusers available with 1 to 4 slots

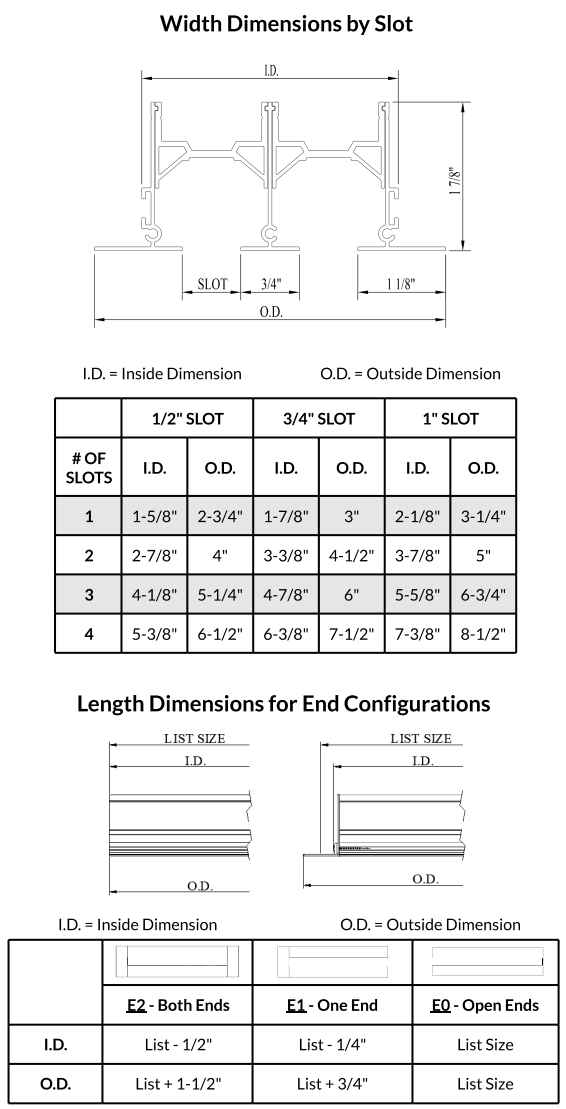

- Available with 1/2" - 3/4" - 1" slot widths
- Available in any length. Lengths over 84" are joined together with provided alignment pins for continuous appearance
- No pattern controllers for return air applications
- Durable white powder coat finish

Any available size in 3 days! Call us at 877-711-4822 if you have questions.

Type/Style:
  Dayus Grilles   DASLR Style
LIST* Length:

*NOTE: The LIST Length is the size of the OPENING. See cut-sheet for undercut and cap info.
Slot Width:
Number of Slots: 1 Slot
2 Slots
3 Slots
4 Slots
Mounting: Screw Holes '-A' (for ceiling, wall, and sill applications)
Concealed Bracket '-C' (no screw holes visible)
No Mounting '-TB' For Custom Applications (not typically used)
Concealed Screw Holes '-D'

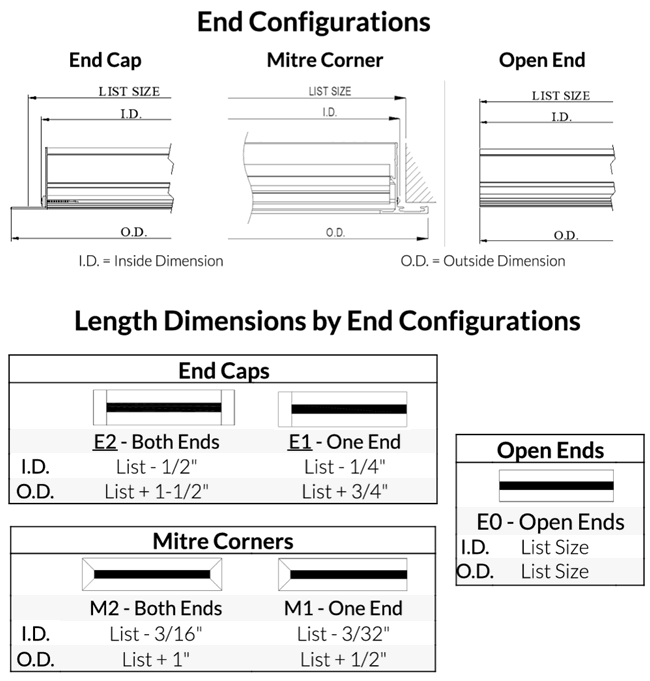

End Cap Configuration: End Caps on Both Ends
End Cap on 1 End Only
No End Caps - Open Ends
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production



Model Number:

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket). 		Quantity:



dayus dasl linear diffuser options

dayus dasl linear diffuser end caps

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Do you have performance information on the DASLR Linear Slot Returns and the linear slot supply diffusers?
A:   Sorry but Dayus does not publish any performance data for these.

       Asked on 2023-03-19 by BF
