Vexell Angled Bar F Frame Wood Grilles

The Vexell AB angled bar grilles features a 15 degree deflection, a 0.25" thick bar with a 0.25" space. They are the perfect solution for applications requiring directional air deflection and minimizing duct visibility. The AB-F grille has a flange on all four sides.

Available in multiple wood species and 2 core options.  The cores can be selected as non-removable solid core or a removable magnet held core.  *** NOT FOR FLOOR USE ***

Standard production is 8 weeks.

1
Adjust Grille Parameters


  (bars run in L direction)
  ** The LIST height and length are the size of the OPENING. The actual overall dimensions will be 1.25 inches bigger than list size in both H and L.

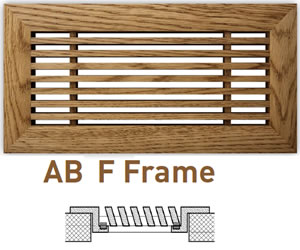

Selected Style: Vexell Grille Design Selected Wood Species: Vexell Grille Wood Species



2
Pricing and Model#
3
Purchase
Note: Vexell grilles are made-to-order. They are NON-RETURNABLE. If you have questions, please call us at 877-711-4822 before ordering.
 Quantity:

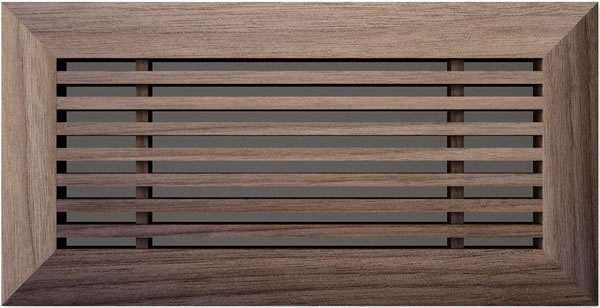

AB-F Solid Core

vexell abf grille

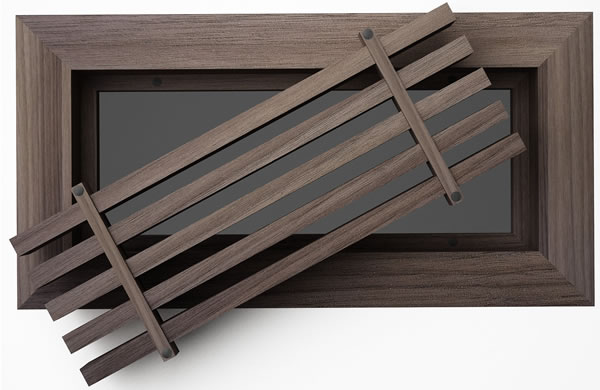

AB-F Shown With Optional Removable Magnet Held Core

vexell abf grille removable core

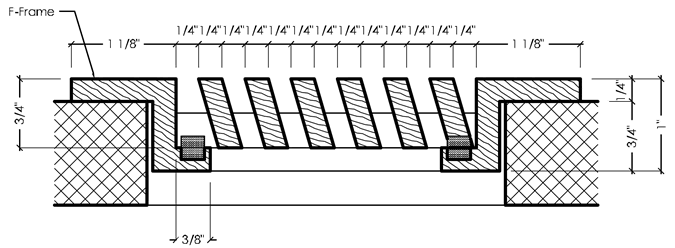

AB-F Profile Dimensions

vexell abf dimensions

vexell wood species finish

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
