Fantech Fan Timers

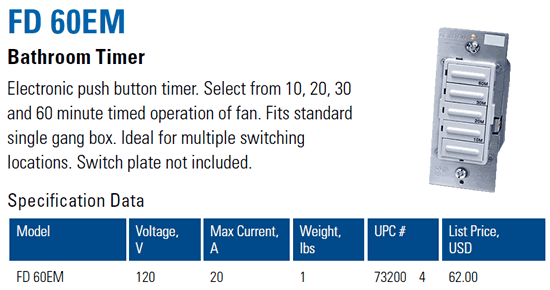

FD60EM:  Electronic push button timer switch for 10, 20, 30 and 60 minute timed operation of an exhaust fan. It provides convenient timed control of bathroom fan exhaust in residential and light commercial application. The timer allows users to simply press and hold the top button to initiate override or press and hold two buttons to convert the 60-minute timer into other available time intervals. It has soothing green LED locator lights and white buttons. Fits standard single gang box.

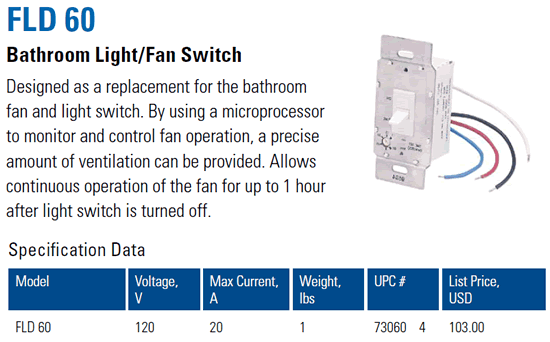

FLD60:  Fan/Light delay timer switch. Allows continuous operation of the fan for up to 1 hour after light switch is turned off. Switch suitable for 115 volt supply. 5 amp rating. Suitable for single switching location.

model description usually ships price QTY
FD 60EM Electronic push button timer - Decora style. 10, 20, 30 and 60 min. operation. 115 VAC, 15 amps. White buttons. Wall plate not included. 1 Day. In-stock $39.10
FLD 60 Fantech fan delay timer switch - fan continues to operate after light is turned off (115 volt). Light/Fan switch - up to 60 min. off delay. 5 amp rating. 1 Day. In-stock $98.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

fantech fd60em


fantech fld60



Stocked in both Oregon and New York state. See transit maps below.

Some products might ship from multiple warehouses.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   I need to replace two FD60EM switches with broken buttons. Could you describe the colored wires coming from the back of your switch so I can make sure yours are the same as mine?
A:   Black=line voltage, Green=ground, White=Neutral, Red=power out to fan.

       Asked on 2023-10-16 by JM
#2 Q:   Can this timer be used with low wattage fans?
A:   Its fine as long as the voltage is correct. These switches are meant for 115 VAC fans only.

       Asked on 2018-09-10 by Mike
#3 Q:   Where do I indicate my color preference for this item...I would like ivory, but I see no place to note that.
A:   The FD60EM comes with white, ivory and light almond buttons/trim (all 3 included). You would have to supply a matching wall plate as indicated.

       Asked on 2017-02-11 by DH
#4 Q:   Does the FD60EM switch operate only the fan, or the fan/ light combination. can the light be switched on/off separately from this switch
A:   The FD60EM will switch whatever is attached to it as one device. It can be either a single fan or the fan/light combo. It cannot switch those individually.

       Asked on 2016-01-02 by nick
#5 Q:   I want to control one inline fan serving 2 bathrooms with a switch for the fan in each bathroom - can either the FD60EM or the FLD60 be used for this situation?
A:   Yes, you can use 2 of the FD60EM switches. See our writeup here on wiring this scenario:

       Asked on 2014-09-24 by Ron Rieders
#6 Q:   Does the FD60EM have an on/off override, or does it only offer timed on/off options? Meaning, can I turn the unit on and off WITHOUT using the timer feature?
A:   You can always turn it OFF (there is an off button), but turning ON is only for timed operation (no dedicated on button).

       Asked on 2014-09-02 by Josh
#7 Q:   Do you sell the FD60 switch in brown?
A:   We only have the one with 3 overlays, they are in white, almond and ivory.

       Asked on 2014-01-01 by DMG
#8 Q:   Does the FLD60 fit in a standard toggle switch plate? I have multiple switches in one plate cover and want to replace just one switch.
A:   It does fit in a standard single gang space, and will integrate nicely with other switches of that style.

       Asked on 2013-09-07 by MPG
#9 Q:   Can I add this (FLD60) To the VALUEPKG-B instead of the one it comes with? Also I need a wall mount instead of roof mount exhaust, you say can specify but I found no place to do so not even in the cart?
A:   Sure! You cannot do the swaps in the cart, but call us at 877-711-4822 and we will make the changes for you.

       Asked on 2013-04-09 by Russ
#10 Q:   Does the FD timer have an off button or do I have to let the timer expire?
A:   The bottom button is a master OFF.

       Asked on 2013-04-04 by 44
#11 Q:   I do not have a neutral in the box. Will the switch work? Is it hard to upgrade to have a neutral?
A:   You need a neutral for the FD60EM timers to work. It might difficult depending on access - you should consult an electrician who can evaluate your house wiring.

       Asked on 2013-04-04 by Handi
#12 Q:   Can I use 2 FD timers with my bath fan?
A:   Yes you can...we even have handy wiring diagrams on the website under the HOW-TO articles tab.

       Asked on 2013-04-04 by XX
