CellarCool FD Series Fully Ducted Split
Brand Logo

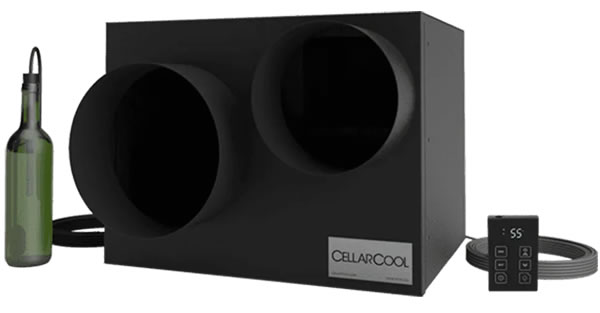

CellarCool FD Series Fully Ducted Split

Fully Ducted Split. Coil/evaporator is mounted outside the cellar so all that is seen inside the cellar is the air supply and return grilles.

  • Great for contractors building custom systems
  • Coils ducted up to 25 ft away
  • Designed for small to medium-scale wine cellars
  • KDT digital controller/thermostat with 50-ft. Cable

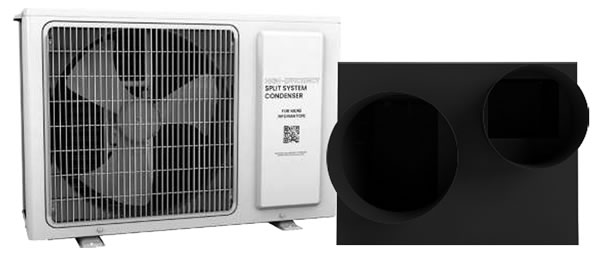

  • Available with either 110V or 220V condenser options
  • Built to perform in ambient temperatures as low as -20°F
  • Fully ducted split system designed for quiet, efficient operation
  • Liquid-temperature-measuring bottle probe for precision control
  • E-coated evaporator coil for improved performance and extended system life

We price match on CellarCool products!

model description usually ships price QTY

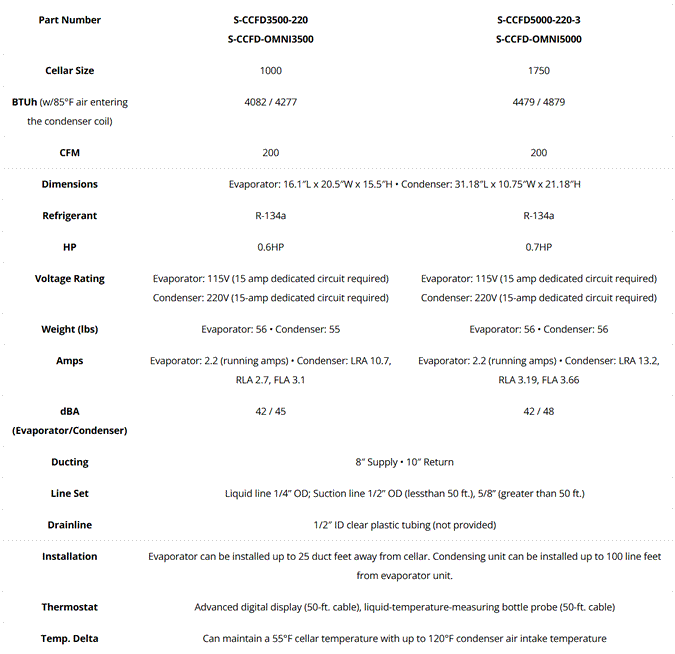

FD 3500 SPLIT H.E. 220V CellarCool fully ducted split. 4277 total BTU @ 85F, 200 CFM, 1000 CUFT @ 55F. H.E. 220V condenser. Includes digital controller/thermostat with 50-ft. cable and bottle probe. Part S-CCFD3500-220. 4-5 Days $7429.00
FD 3500 SPLIT OMNI 110V CellarCool fully ducted split. 4277 total BTU @ 85F, 200 CFM, 1000 CUFT @ 55F. OMNI 110V condenser. Includes digital controller/thermostat with 50-ft. cable and bottle probe. Part S-CCFD-OMNI3500. 4-5 Days $7429.00
FD 5000 SPLIT H.E. 220V CellarCool fully ducted split. 4879 total BTU @ 85F, 200 CFM, 1750 CUFT @ 55F. H.E. 220V condenser. Includes digital controller/thermostat with 50-ft. cable and bottle probe. Part S-CCFD5000-220-3. 4-5 Days $7819.00
FD 5000 SPLIT OMNI 110V CellarCool fully ducted split. 4879 total BTU @ 85F, 200 CFM, 1750 CUFT @ 55F. OMNI 110V condenser. Includes digital controller/thermostat with 50-ft. cable and bottle probe. Part S-CCFD-OMNI5000. 4-5 Days $7819.00
2-840001 CellarCool OMNI condenser exterior condenser housing. Required for outdoor installation of condenser. 4-5 Days $599.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

Related Products

CellarCool WM Series Wall Mount Ductless Split

Wall mounted ductless split. Case can be mounted on the wall near the ceiling without a grill cover to hide the unit. Available with either 110V or 220V condensers.

CellarCool CM Series Ceiling Mount Ductless Split

Ceiling mounted split system evaporator. Virtually silent operation. Single evaporator head. 120V and 220V condenser options.

CellarCool WM Series Wall Mount Twin Evap Ductless Split

Wall mounted ductless split with TWIN EVAPORATORS. Can be mounted on the wall near the ceiling without a grill cover. 220 V condenser.

CellarCool Optimum Series Thru-Wall Wine Room Cooling System

Thru-wall system for small to medium-scale wine cellars. Digital controller on the face of the unit. Liquid temperature measuring bottle probe for precision control.
