Fantech FKD EC Series Inline Centrifugal Fans

Fantech FKD-EC fans are known for their economical use of energy and excellent ease of control. They can be varied in speed to match the airflow demand, and operate at high efficiency levels. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhaust.

The FKD EC fan motor's speed is controlled via a 0-10Vdc signal by a remotely-mounted potentiometer (such as MTP 10). The motor can also be controlled by an externally-provided 0-10Vdc signal that can come from any device or a Building Management System.

model description usually ships price QTY
FKD 16-EC Fantech FKD-EC Inline Fan. 230VAC, 1 Phase EC motor. 16" Round Duct - 4250 cfm. Call/Email for Availability $2512.10
FKD 16XL-EC Fantech FKD-EC Inline Fan. 460VAC, 3 Phase EC motor. 16" Round Duct - 5150 cfm. Call/Email for Availability $3040.00
FKD 18-EC Fantech FKD-EC Inline Fan. 460VAC, 3 Phase EC motor. 18" Round Duct - 5921 cfm. Call/Email for Availability $2933.90
FKD 20-EC Fantech FKD-EC Inline Fan. 460VAC, 3 Phase EC motor. 20" Round Duct - 5967 cfm. Call/Email for Availability $3165.70
EC-10V Fantech potentiometer (10k Ohm) for speed controlling EC fans. 1-gang box Decora mount. 1 Day. In-stock $61.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

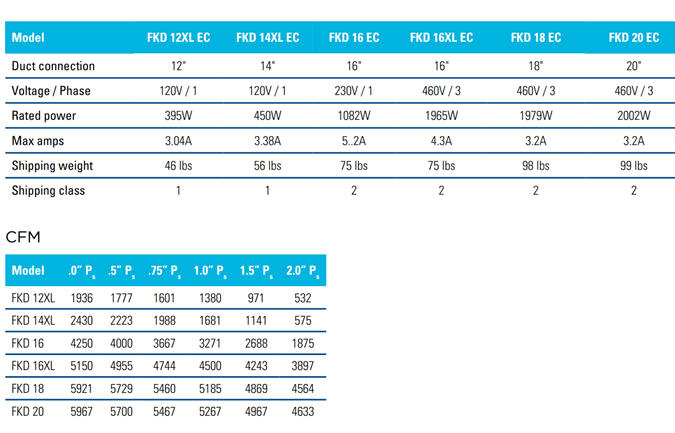

fantech fkd-ec fan specifications

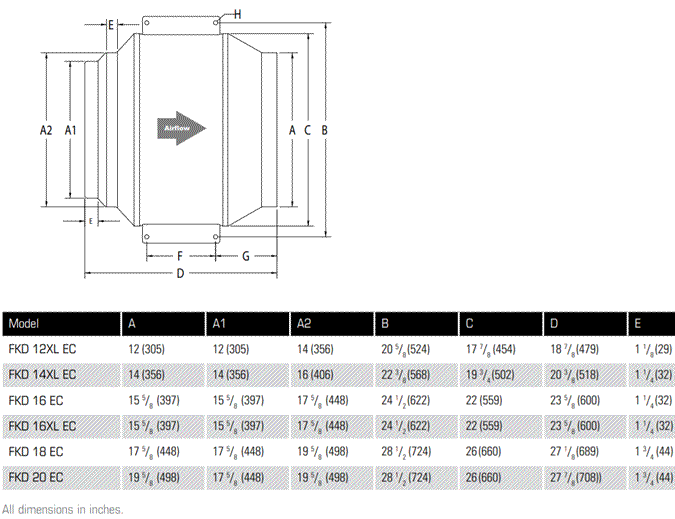

fantech fkd-ec fan dimensions
