S&P TRC Commercial Energy Recovery Ventilators for All Climates
Brand Logo

S&P TRC Commercial Energy Recovery Ventilators for All Climates

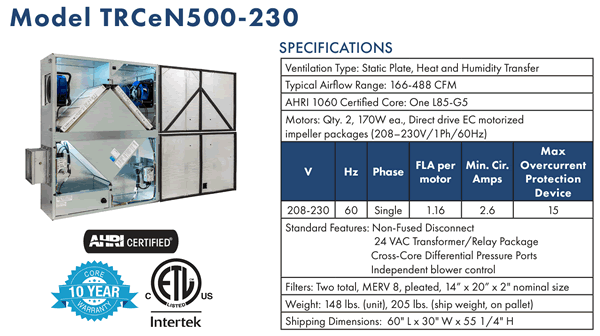

- TRCeN500-230 show in image on right
- Easiest maintenance of any ERV
- MERV-8 filters are standard
- Static Plate, Heat and Humidity Transfer ventilation
- Transformer/relay package allowing simple on/off control
- Access doors for easy access to blowers, core and filters
- TRCe models have EC motors for maximum efficiency
- AHRI Certified performance
- Fully insulated case
- 10-year industry best core warranty, 2-year warranty on balance of unit

model description usually ships price QTY
TRCeN500-230 S&P Energy Recovery Ventilator with EC motor. 166 to 488 cfm. 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $4210.50
TRCeN500V-230 S&P Energy Recovery Ventilator with EC motor. 166 to 488 cfm. 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $4210.50

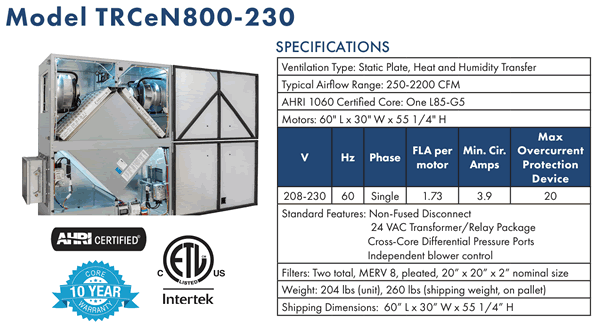

TRCeN800-230 S&P Energy Recovery Ventilator with EC motor. 250 to 2200 cfm. 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $6146.70
TRCeN800V-230 S&P Energy Recovery Ventilator with EC motor. 250 to 2200 cfm. 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $6146.70

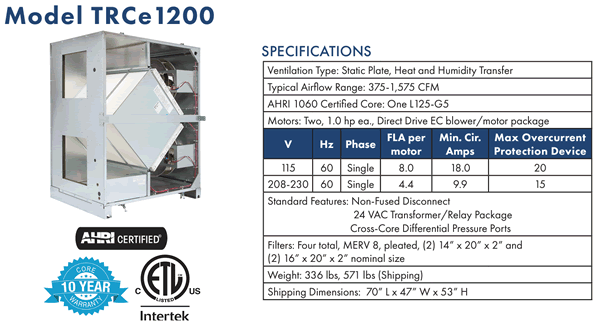

TRCeN1200H-115 S&P Energy Recovery Ventilator with EC motor. 115 V, 60 Hz, Single Phase. 5-6 Weeks $10972.00
TRCeN1200H-230 S&P Energy Recovery Ventilator with EC motor. 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $10972.00

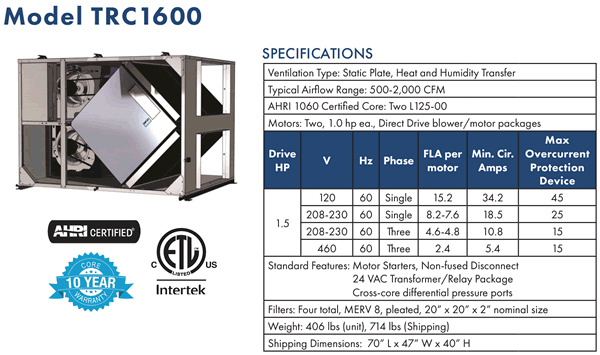

TRCeN1600H-230 S&P Energy Recovery Ventilator. EC Motor, 208-230 V, 60 Hz, Single Phase. 5-6 Weeks $14426.00
TRCeN1600H-230-3P S&P Energy Recovery Ventilator. EC Motor, 208-230 V, 60 Hz, Three Phase. 5-6 Weeks $14426.00
TRCeN1600H-460-3P S&P Energy Recovery Ventilator. EC Motor, 460 V, 60 Hz, Three Phase. 5-6 Weeks $14426.00

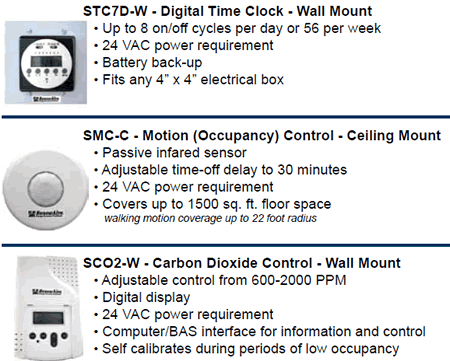

STC7D-W S&P digital time clock for TRC ERVs. Wall mounted. Up to 8 on/off cycles per day or 56 per week. 24 VAC power requirement with battery back-up. 2-3 Days $239.50
SMC-C S&P motion (occupancy) sensor for TR ERVs. Ceiling mount. Passive infrared sensor. Adjustable time-off delay to 30 minutes. 24 VAC power requirement. Covers up to 1500 sq. ft. floor space. 2-3 Days $278.90
SMC-W S&P motion (occupancy) sensor for TR ERVs. Wall mount. Passive infrared sensor. Adjustable time-off delay to 30 minutes. 24 VAC power requirement. Covers up to 2500 sq. ft. floor space. 2-3 Days $367.00
SCO2-W S&P CO2 controller for TR ERVs. Wall mount. Adjustable control from 600–2000 PPM. Digital display. 24 VAC power requirement. Computer/BAS interface for information and control. 2-3 Days $799.00
SPBACNETFC-W S&P BACnet fan controller for TR ERVs. Connects ERV to building at up to 50% less cost than adding another I/O connection. Set fan on/off status and speed. Local control without opening unit and/or BMS override via BACnet MS/TP. 24VAC power wired required. Wall mounted, LCD display. 2-3 Days $384.00
