Fantech Light Commercial Heat Recovery Ventilators HRVs

Fantech’s light commercial heat recovery units can be used in various applications from swimming pools and small offices to larger commercial applications. Common to all, each and every system and component has been developed with energy savings in mind. Heat and Energy exchangers, motors and fan units have all undergone extensive testing, both in the laboratory and in the field, in order to exceed current and future demands for low energy consumption.

Defrost cycle: A preset defrost sequence is activated at an outdoor air temperature of 23 F and lower. During the defrost sequence, the supply blower shuts down & the exhaust blower switches to high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues the cycle.

  • Airflow up to 1428 cfm @ 0.4" PS
  • Push-pull configuration
  • Removable screw terminal for easy connection
  • Dual service doors & reversible electrical box
  • External three position switch (Low/Standby/High)

NOTE THESE ARE OFTEN IN-STOCK.  PLEASE CALL US AT 877-711-4822 IF YOU NEED ONE FAST.

model description usually ships price QTY
SHR 450 Fantech HRV. 465 CFM @ 0.4 inch WG. Side discharge. 115 VAC, 60 Hz. 3 speed. Fan shutdown defrost. Pls call/email for availability $1697.00
SHR 700 Fantech HRV. 717 CFM @ 0.4 inch WG. Side discharge. 115 VAC, 60 Hz. 3 speed. Fan shutdown defrost. Pls call/email for availability $2326.60
SHR 800 Fantech HRV. 794 CFM @ 0.4 inch WG. Side discharge. 115 VAC, 60 Hz. 3 speed. Fan shutdown defrost. Pls call/email for availability $2435.20
SHR 1200 Fantech HRV. 1219 CFM @ 0.4 inch WG. Side discharge. 115 VAC, 60 Hz. 3 speed. Fan shutdown defrost. Pls call/email for availability $2988.80
SHR 1400 Fantech HRV. 1428 CFM @ 0.4 inch WG. Side discharge. 115 VAC, 60 Hz. 3 speed. Fan shutdown defrost. Pls call/email for availability $3209.50
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

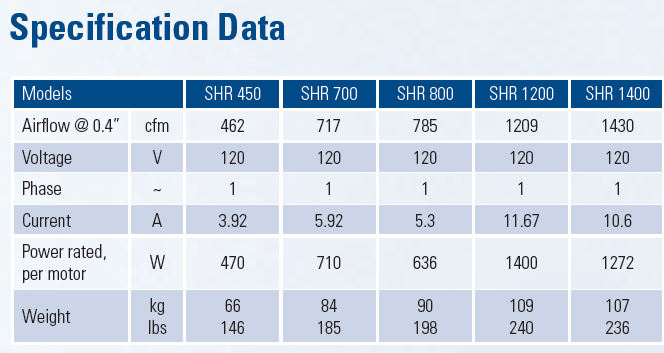

fantech light commercial HRV specifications

fantech light commercial HRVs

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Are all of your commercial ERVs designed to mount indoors?
A:   Yes. They are typically mounted in a mechanical room, protected from the elements and with space for service.

       Asked on 2021-08-22 by Ron
