AquaMotion AMH3K-R Tankless Under Sink Hot Water Recirculation System
Brand Logo

AquaMotion AMH3K-R Tankless Under Sink Hot Water Recirculation System

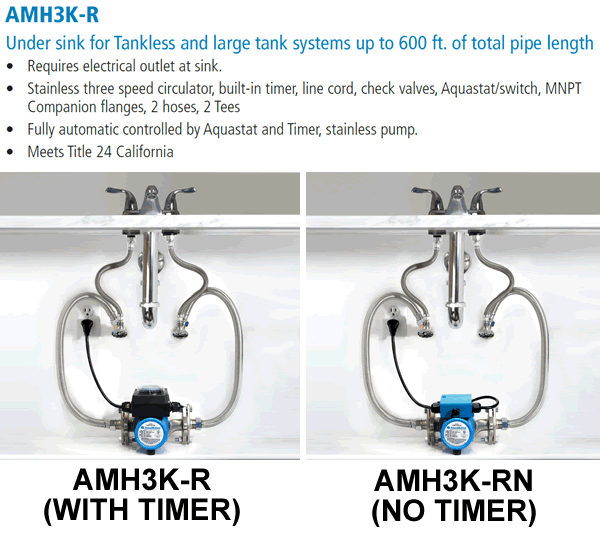

The AquaMotion AMH3K-R kit is designed for standard plumbing systems with hot water pipe length up to 600 ft. Use for large tank systems or TANKLESS water heaters. The kit requires an electrical outlet at the sink. Includes: stainless three speed circulator, built-in timer, line cord, check valves, aquastat/switch, MNPT companion flanges, 2 hoses and 2 tees. Full automatic control by the aquastat and timer.

The AMH3K-RN is an on-demand version of the AMH3K-R model system and does NOT have a timer. On-demand gives you the ability to control system activation through a switch or motion sensor. When activated, the pump shuts off after 5 minutes or when the water temperature reaches 105 F.  Additional on-demand switches, motion sensors, etc (AMK- parts below) have to be purchased to activate the pump.

model description usually ships price QTY
AMH3K-R Aquamotion AquaMotionHot kit for large hot water tanks or tankless water heaters. Installs under a sink. 600 ft max pipe length. AMR-S3FVALT1 3 speed stainless circulator, 4 bolt flanged pattern, 3/4 inch male stainless companion flanges, 10 ft. cord, built-in timer, aquastat (85F-104F), BICV, 2 hoses, 2 3/4 inch tees. 1 Day. In-stock $648.80
AMH3K-RN Aquamotion AquaMotionHot kit for large hot water tanks or tankless water heaters. Installs under a sink. 600 ft max pipe length. NO TIMER. AMR-S3FVAL1 3 speed stainless circulator, 4 bolt flanged pattern, 3/4 inch male stainless companion flanges, 10 ft. line cord, Aquastat (85F-104F), BICV, 2 hoses, 2 tees 3/4 inch. ON-DEMAND SWITCHES SOLD SEPARATELY. 1 Day. In-stock $620.20
AMK-WB Aquamotion ON-DEMAND remote RF wireless control with adjustable receiver and cord. No wiring required. Up to 5 AMK-WBR or AMK-WSR or mixed per receiver. 1 Day. In-stock $129.30
AMK-MS Aquamotion ON-DEMAND wireless control kit with motion sensor and receiver. No wiring required. 9 volt battery required. Up to 5 AMK-WBR or AMK-WSR or mixed per receiver. 1 Day. In-stock $144.10
AMK-WS Aquamotion ON-DEMAND wireless wall rocker switch to turn on circulator for 5 min. Includes wireless receiver, range 100 ft. (accepts up to 5 WBR, MSR, WSR or mixed). 1 Day. In-stock $131.60
AMK-CB Aquamotion ON-DEMAND air actuated counter control kit with relay. Installed on countertop or mounted through cabinet door. 1 Day. In-stock $99.30
AMK-WBR Aquamotion ON-DEMAND additional wireless button with wall mounting bracket for AMK-WB kit. 1 Day. In-stock $63.70
AMK-MSR Aquamotion ON-DEMAND additional wireless motion detector for AMK-MS kit. 1 Day. In-stock $63.80
AMK-WSR Aquamotion ON-DEMAND additional wireless rocker switch to turn on pump. Receiver not included. 1 Day. In-stock $64.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

Related Products

AquaMotion AMH1K-6ODRZT1 Tankless Pump and Valve Hot Water Recirculation System

Split pump and bypass valve kit. Pump installs at water heater and valve under sink. For single pipe systems with a TANKLESS water heater with no pump. With timer.

AquaMotion AMH1K-RODRN ON DEMAND Tankless Pump and Valve Hot Water Recirculation System

Split pump and bypass valve kit. Pump at water heater and valve under sink. For single pipe plumbing with a TANKLESS water heater. ON DEMAND.
