Imperial C2000 Mesh Series Stainless Powered Liners 18-1/8 Inch Deep

Imperial C2000 Mesh Filter Series inserts include options with either one or two motors ranging from 635-1500 CFM.  All models feature variable control motors and dimmable halogen lighting. Inserts are easy to install with all inclusive liners and blowers. Safety heat sensors on all blower models.

  • 18-1/8" depth, 6" height
  • 30, 36, 42, 48, 54 and 60 nominal widths
  • 1.5 to 4.6 sones (on high)
  • Variable switches for control of fan and lights
  • Two 38 watt halogen bulbs
  • Stainless steel constuction and mesh filters (included)
  • Fire safety thermostat activates at 130 degrees
  • 7", 8" or 10" round duct opening (depends on model)
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030BP1-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 30" wide. 635 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $835.60
C2036BP1-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 635 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $876.70
C2042BP1-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 635 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $938.40
C2030BP-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 30" wide. 735 nominal CFM, 7" Duct 1-2 Weeks $1047.90
C2036BP-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 735 nominal CFM, 7" Duct 1-2 Weeks $1082.20
C2042BP-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 735 nominal CFM, 7" Duct 1-2 Weeks $1123.30
C2048BP-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 48" wide. 735 nominal CFM, 7" Duct 1-2 Weeks $1164.40
C2030BP-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 30" wide. 880 nominal CFM, 8" Transition 1-2 Weeks $1116.40
C2036BP-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 880 nominal CFM, 8" Transition 1-2 Weeks $1150.70
C2042BP-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 880 nominal CFM, 8" Transition 1-2 Weeks $1191.80
C2048BP-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 48" wide. 880 nominal CFM, 8" Transition 1-2 Weeks $1232.90
C2030BP-K-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 30" wide. 990 nominal CFM, 10" Transition 1-2 Weeks $1143.80
C2036BP-K-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 990 nominal CFM, 10" Transition 1-2 Weeks $1178.10
C2042BP-K-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 990 nominal CFM, 10" Transition 1-2 Weeks $1219.20
C2048BP-K-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 48" wide. 990 nominal CFM, 10" Transition 1-2 Weeks $1260.30
C2036BP1-TW-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 1250 nominal CFM, Two 7" Ducts 1-2 Weeks $1226.00
C2042BP1-TW-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 1250 nominal CFM, Two 7" Ducts 1-2 Weeks $1287.70
C2048BP1-TW-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 48" wide. 1250 nominal CFM, Two 7" Ducts 1-2 Weeks $1335.60
C2054BP1-TW-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 54" wide. 1250 nominal CFM, Two 7" Ducts 1-2 Weeks $1493.20
C2060BP1-TW-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 60" wide. 1250 nominal CFM, Two 7" Ducts 1-2 Weeks $1815.10
C2036BP1-TW-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 36" wide. 1500 nominal CFM, Two 8" Transitions 1-2 Weeks $1328.80
C2042BP1-TW-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 42" wide. 1500 nominal CFM, Two 8" Transitions 1-2 Weeks $1390.40
C2048BP1-TW-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 48" wide. 1500 nominal CFM, Two 8" Transitions 1-2 Weeks $1438.40
C2054BP1-TW-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 54" wide. 1500 nominal CFM, Two 8" Transitions 1-2 Weeks $1595.90
C2060BP1-TW-8-SS Imperial C2000 Mesh Series. 18-1/8" depth, 6" high, 60" wide. 1500 nominal CFM, Two 8" Transitions 1-2 Weeks $1917.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

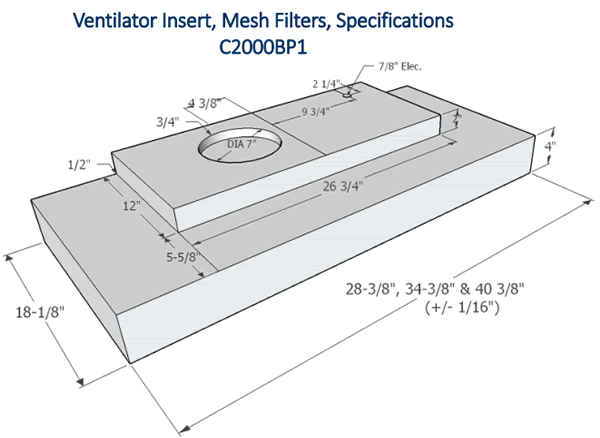

Imperial BP1 liner specs

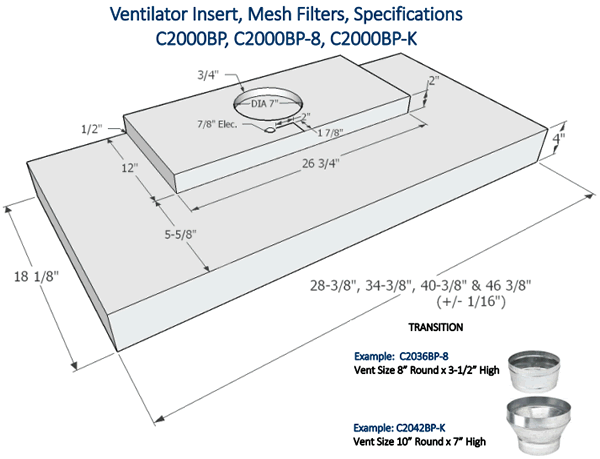

Imperial BP liner specs

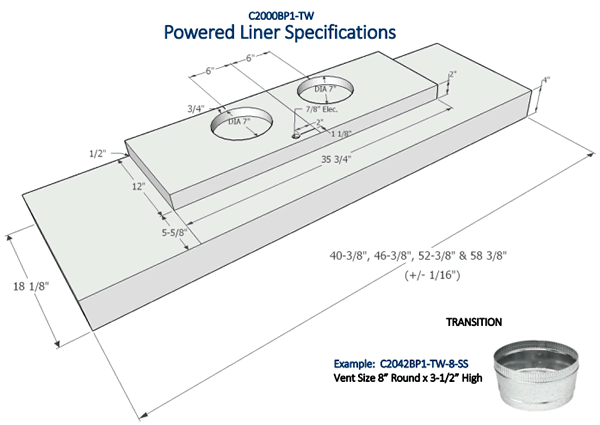

Imperial BP1-TW liner specs

Imperial PS liner

Imperial PS liner installed

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Is the Imperial C2000 mesh series liner adjustable to fit an opening 36 wide? Diagram shows three sizes? or do I have to specify 28, 34 or 40 inches ? I assume I will need to build a box to house the unit ?
A:   They are not adjustable. There are multiple sizes in each model. For example 2030, 2036, and 2042 with the last 2 digits specifying the size. They are meant to be enclosed.

       Asked on 2019-02-27 by Bill
