HVACQuick Ruck Balanced Residential Make-up Air System

HVACQuick Ruck Balanced Residential Make-up Air System

A balanced make-up air system from HVACQuick makes choosing a kitchen ventilation system easier than choosing a cooktop. Once you’ve chosen a stove, verify the required volume of exhaust (which is often in the appliance’s specifications), and we’ll assemble a package to meet your needs including exhaust and make-up air fans, silencers, wall caps, controls, and damper.

The base system consists of 2 paired Ruck EVO EC motor fans, a MERV-13 filter box to filter the incoming air, backdraft damper on inlet to prevent backdrafts when not in use, B10K potentiometer assembly and wiring terminal adapter. Available optional add-on components include silencers and wall/roof caps.

• Meets the IRC make-up air requirements at the most affordable price
• Both exhaust and make-up air fans in single easy to install package
• Quieter than comparable range hoods with optional silencer

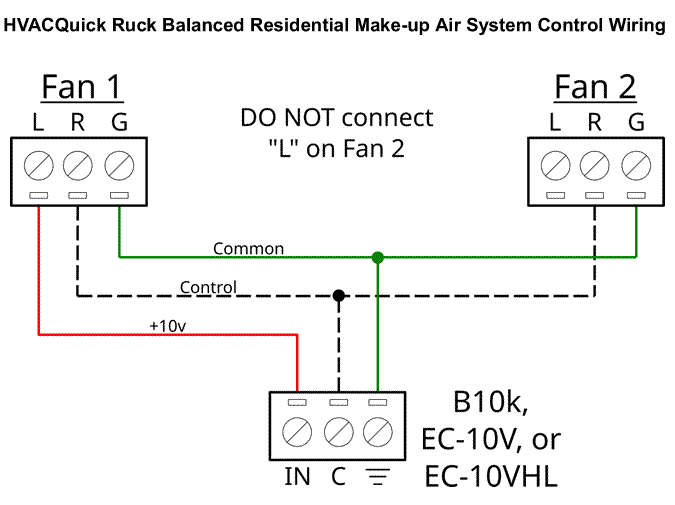

• B10K potentiometer control assembly
• MERV-13 filter removes on average 98% of airborne particulates
• ECM motors increase efficiencies at variable speed

model description usually ships price QTY
Balanced Ruck MUAS 8 HVACQuick Ruck 8 inch Balanced Makeup Air System. 737 CFM @ 0.25 inch WG. Contains 2 Ruck Prime EVO EC 8 inch fans, CFB 8 filter box, 8 inch backdraft damper, EC-10V potentiometer assembly and 2 x EL-910 terminal adapters. 1-2 weeks. $895.00
Balanced Ruck MUAS 10 HVACQuick Ruck 10 inch Balanced Makeup Air System. 1240 CFM @ 0.25 inch WG. Contains 2 Ruck Prime EVO EC 10 inch fans, CFB 10 filter box, 10 inch backdraft damper, EC-10V potentiometer assembly and 2 x EL-910 terminal adapters. 1-2 weeks. $1010.00
CSL-90-8 HVACQuick CSL series elbow silencer. 90 degree bend. For 8 inch ducts. Includes silencer and 8 inch duct connections. Includes 10 mounting screws and 2 duct adapters. 1 Day. In-stock $169.00
JV826HC Galvanized steel roof caps with starting collar. 8 inch round duct connection. #8 bug screen included. 1 Day. In-stock $41.00
JV1026HC Galvanized steel roof caps with starting collar. 10 inch round duct connection. #8 bug screen included. 1 Day. In-stock $49.00
SDWVG8 Galvanized steel wall hood (exhaust) with starting collar. 8 inch round duct connection. #8 bug screen and backdraft damper included. 1 Day. In-stock $39.00
SDWVG10 Galvanized steel wall hood (exhaust) with starting collar. 10 inch round duct connection. #8 bug screen and backdraft damper included. 1 Day. In-stock $54.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

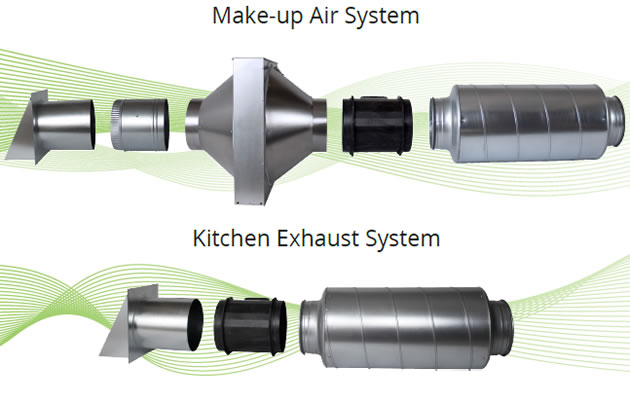

SHOWN WITH OPTIONAL ELBOW SILENCER AND WALL CAP

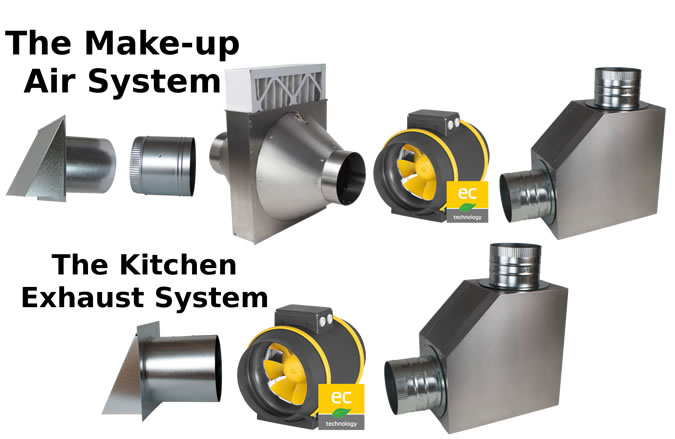

ruck residential makeup air system muas components



SHOWN WITH OPTIONAL ELBOW SILENCER AND WALL CAP
