Arctica Solar 750 Series Solar Air Heater

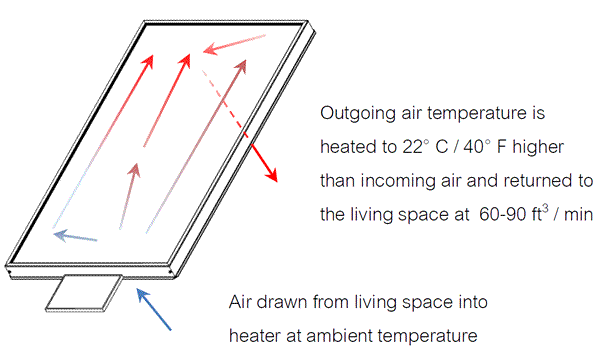

The 750 Series heater is a stand alone solar air heater. A PV panel powers the air circulation fan which is controlled by a simple commercial thermostat. The heaters typically mounts against a south facing wall or even a sloped roof using PV mounting rails or conventional mount brackets. 4" ducting is routed into the living space.

Features:

  • High performance absorber and circulation design
  • Includes thermostat and 12' wire
  • Includes 10 W PV panel to power air circulation
  • 750 W / 2,500 BTU/hr max heating capacity
  • No assembly necessary, ready to mount out of the box
  • DIY or contractor install
  • Indoor grilles and duct not included
model description usually ships price QTY
750 Series Solar Air Heater Arctica Solar fully integrated solar air heater - 750 Series. Includes solar air heater, 10W PV panel, thermostat and wall mount clips. 750 W / 2,500 BTU/hr max heating capacity. 2-3 Days $479.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

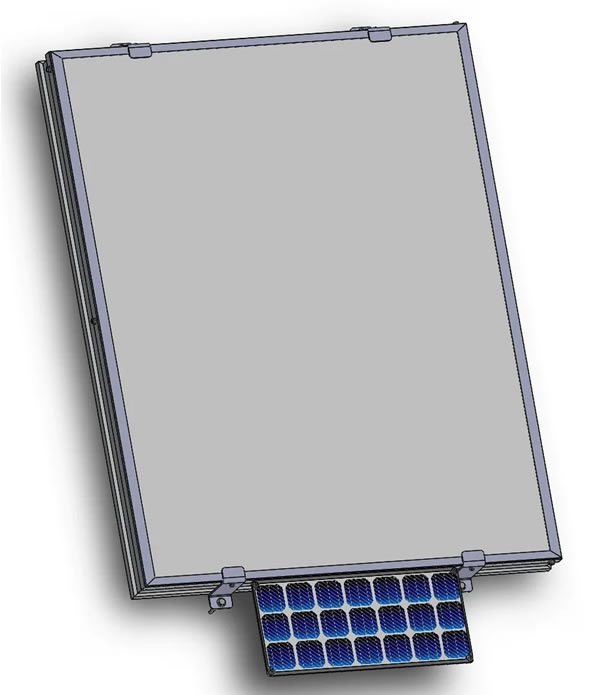

Arctica Solar 750 Series

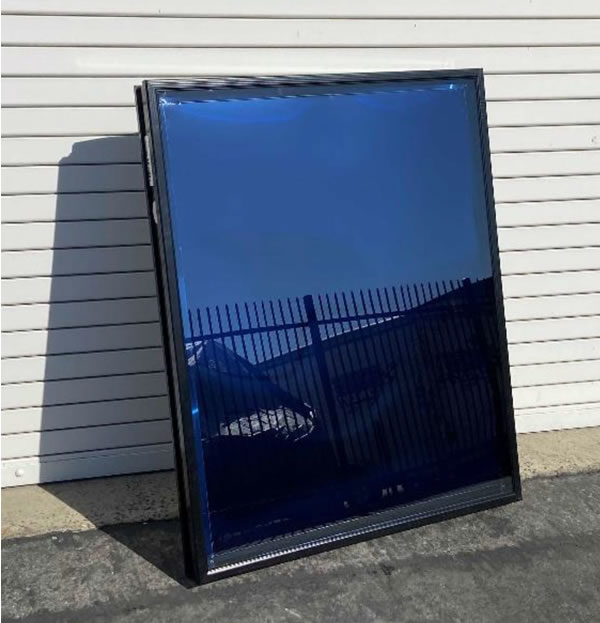

Arctica Solar 750 Series Front

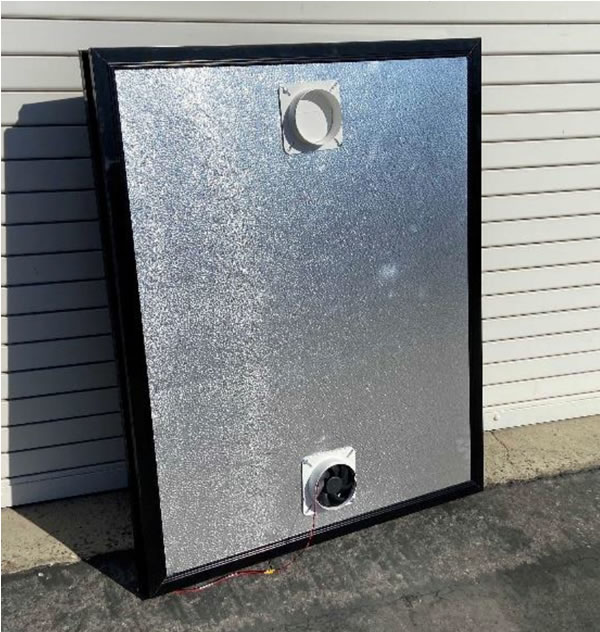

Arctica Solar 750 Series back

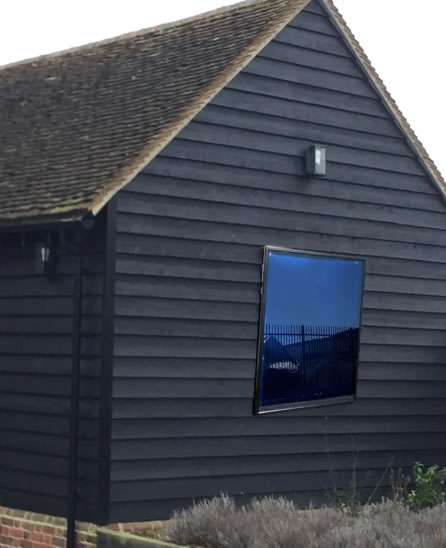

Arctica Solar 750 Series mounted

Arctica Solar 750 Series



Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can a battery be added?
A:   Theoretically yes since the fan is a 12VDC system. This is typically not done since the solar panel supplies fan power and there is no reason to run the fan when the sun is not out.

       Asked on 2023-03-23 by Alicia
#2 Q:   Does this item heat only during the daylight hours?
A:   Yes, it requires sun exposure.

       Asked on 2022-11-28 by Steve
