CellarCool Magnum Series Fully Ducted Split
Brand Logo

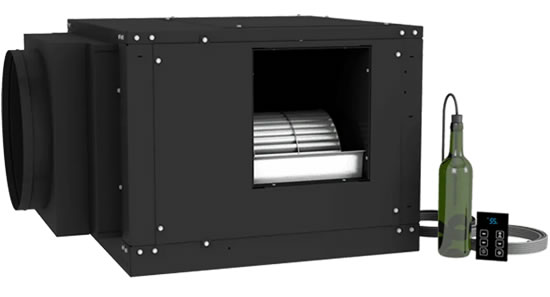

CellarCool Magnum Series Fully Ducted Split

Magnum LARGER CAPACITY cooling systems. Cellar contractors have asked for a design that does not take away from the racking capacity and is virtually quiet in the cellar.

  • 220 VAC H.E. Condensers
  • Flare fittings allow quick, brazing-free installation
  • KDT digital controller/thermostat with 50-ft. cable
  • 3-speed fan switch for precise airflow management
  • Built to perform in ambient temperatures as low as -20°F
  • Stainless steel drip tray for durability and easy maintenance
  • Quiet, efficient operation for a peaceful cellar environment
  • Fully ducted split system designed for large-scale wine cellars
  • 220V High-Efficiency (H.E.) condenser for powerful performance
  • Interchangeable evaporator airflow panels for installation flexibility
  • Liquid-temperature-measuring bottle probe for precise control
  • Optional UV-C lighting system (factory addition - call us to order)
model description usually ships price QTY

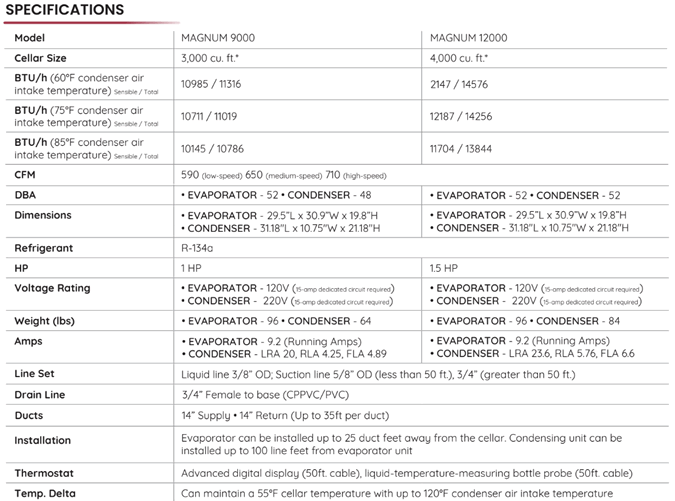

Magnum SS9000 H.E. 220V CellarCool Magnum Series split fully ducted system. 10,786 total BTU @ 85F, 3000 CUFT @ 55F. H.E. condenser. KDT digital controller/thermostat with 50-ft. cable and bottle probe included. Part S-CCMS9000-220-FD. 4-5 Days $10489.00
Magnum SS12000 H.E. 220V CellarCool Magnum Series split fully ducted system. 13,844 total BTU @ 85F, 4000 CUFT @ 55F. H.E. condenser. KDT digital controller/thermostat with 50-ft. cable and bottle probe included. Part S-CCMS12000-220-FD. 4-5 Days $11119.00

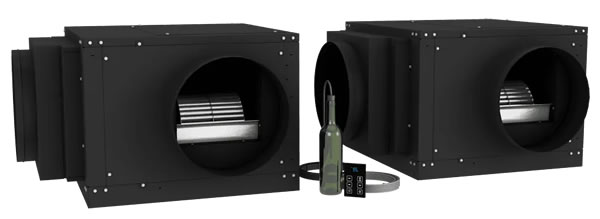

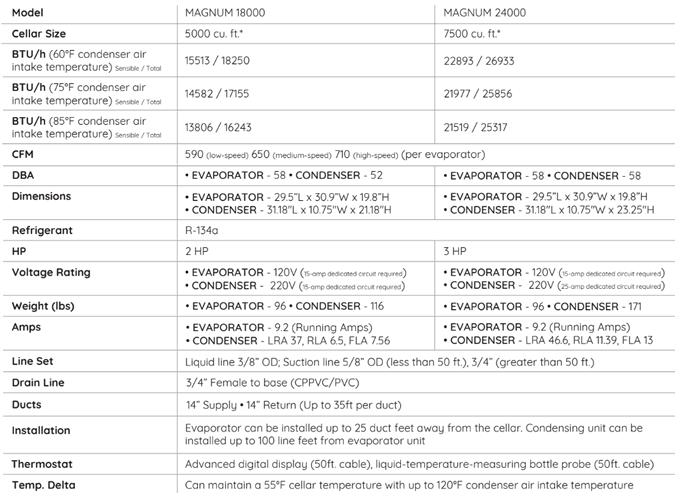

Magnum SS18000 H.E. 220V CellarCool Twin Magnum Series split fully ducted system. 16,243 total BTU @ 85F, 5000 CUFT @ 55F. H.E. condenser. KDT digital controller/thermostat with 50-ft. cable and bottle probe included. Part S-CCMS18000-220-FD. 4-5 Days $14109.00
Magnum SS24000 H.E. 220V CellarCool Twin Magnum Series split fully ducted system. 25,317 total BTU @ 85F, 7500 CUFT @ 55F. H.E. condenser. KDT digital controller/thermostat with 50-ft. cable and bottle probe included. Part S-CCMS24000-220-FD. 4-5 Days $15699.00
Magnum SS9000-24V H.E. 220V CellarCool Magnum Series split fully ducted system. 10,786 total BTU @ 85F, 3000 CUFT @ 55F. H.E. condenser. Part S-CCMS9000-220-FD. 24V thermostat conversion option - NO controller or bottle probe included. Thermostat by owner. 4-5 Days $10489.00
Magnum SS12000-24V H.E. 220V CellarCool Magnum Series split fully ducted system. 13,844 total BTU @ 85F, 4000 CUFT @ 55F. H.E. condenser. Part S-CCMS12000-220-FD. 24V thermostat conversion option - NO controller or bottle probe included. Thermostat by owner. 4-5 Days $11119.00
Magnum SS18000-24V H.E. 220V CellarCool Twin Magnum Series split fully ducted system. 16,243 total BTU @ 85F, 5000 CUFT @ 55F. H.E. condenser. Part S-CCMS18000-220-FD. 24V thermostat conversion option - NO controller or bottle probe included. Thermostat by owner. 4-5 Days $14109.00
Magnum SS24000-24V H.E. 220V CellarCool Twin Magnum Series split fully ducted system. 25,317 total BTU @ 85F, 7500 CUFT @ 55F. H.E. condenser. Part S-CCMS24000-220-FD. 24V thermostat conversion option - NO controller or bottle probe included. Thermostat by owner. 4-5 Days $15699.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page
